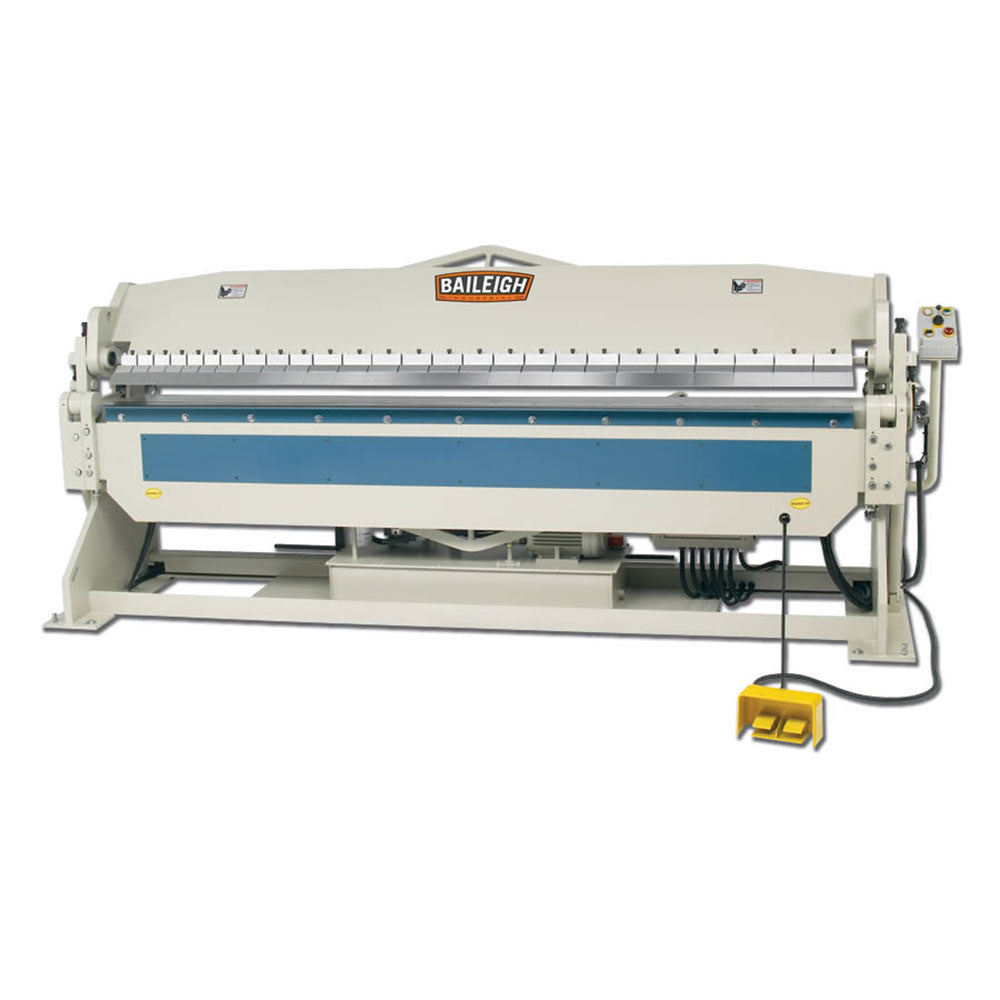

Baileigh 1020998 BB-12010H 220V 10' x 10 Gauge Hydraulic Sheet Metal Brake

Baileigh 1020998 BB-12010H 220V 10' x 10 Gauge Hydraulic Sheet Metal Brake

Features

• Bends 10 gauge mild steel and 12 gauge stainless steel or lighter.
• 10 feet (120”) bending length.
• Maximum bend angle of 135°.
• Industrial-grade hydraulic systemdoes all of the following:
• Clamps the material at the fingers,
• Lifts the bend eaf to the pre-set bend angle,
• Opens the beam when the bend is complete.
• Hydraulically-driven bend leaf.
• 5 hp motor runs on 220-volt three-phase power.
• Made using only the most durable and high-quality electrical components.
• Includes 26 hardened fingers in assorted sizes (6 of 3", 4 of 4", 10 of 5", and 6 of 6"); adjust them for different box and pan applications.
• Adjustable auto-stop: just dial in the bend degree when using the hydraulic bending brake in manual or semi-automatic mode.
• Variable bend speed and clamping pressure adjustment give you control over the material.
• You can operate the machine by toggle from the console, or by using the foot pedal controls.
• Semi-automatic bending mode with foot pedal control will increase productivity, reduce operator effort, and streamline production runs.
• Material thickness adjustment enables you to take on many gauges of sheet metal and easily switch between them.
• Greaseable joints and filtered hydraulic system enable this sheet metal brake to work smoothly for years.
• Electro-welded steel frame, with massive truss rods, minimizes deformation when bending at full capacity.
• Extra-rigid base design supports the weight of heavier materials.

What's in The Box

• BB-12010H - Hydraulic Sheet Metal Brake
• Owner's Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications
