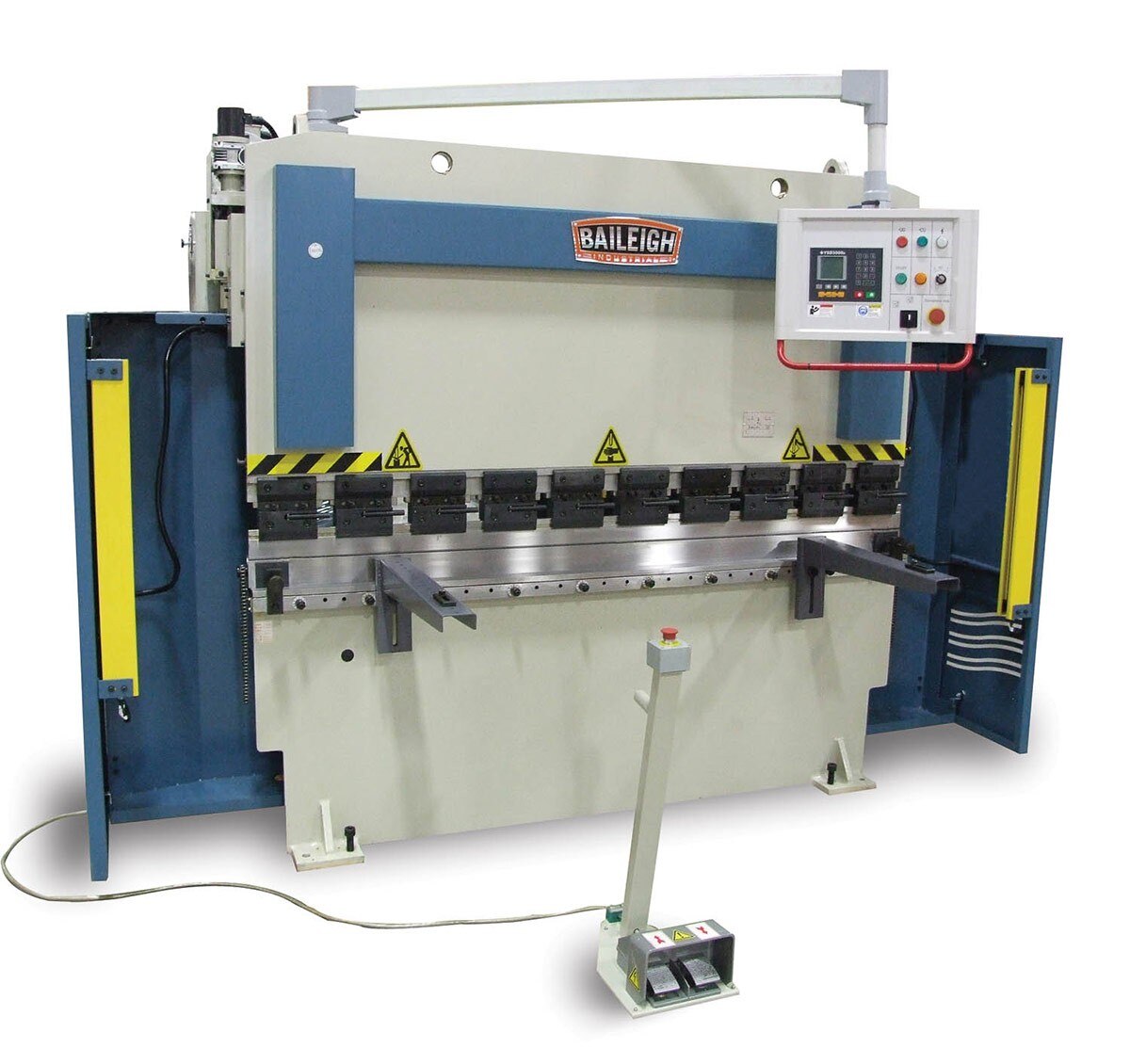

Baileigh Industrial BA9-1010285 Hydraulic Brake Press BP-5078CNC

Baileigh Industrial 1010285 Features

• Delivers 50 tons of pressure over its entire 78” length.
• Long enough to bend 6-foot pieces of mild steel.
• Runs on 220-volt 3-phase power.

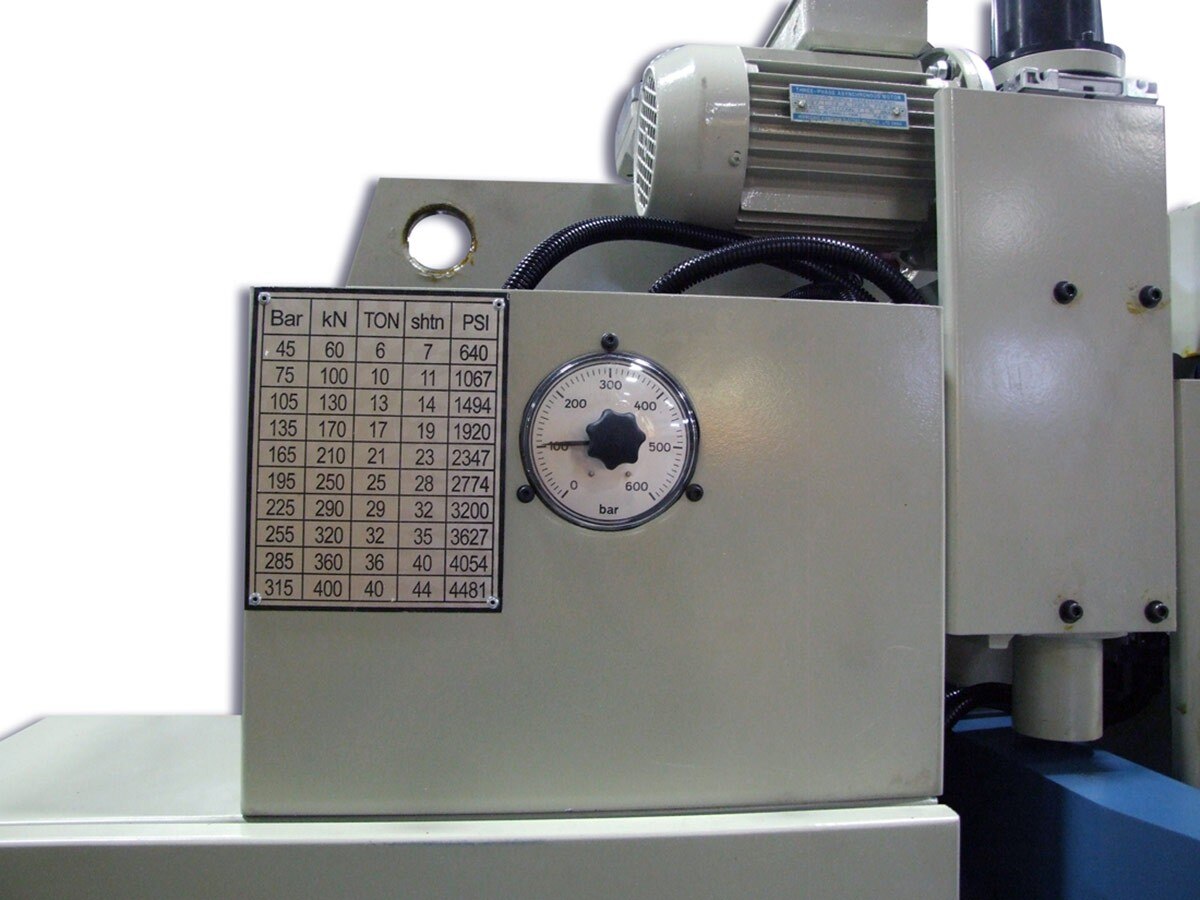

• Industrial-grade hydraulic system with a Vickers/Eaton® pump will last for many years at peak capacity.
• NOK® hydraulic seals from Japan are some of the best in the industry. They'll help the hydraulics run smoothly.

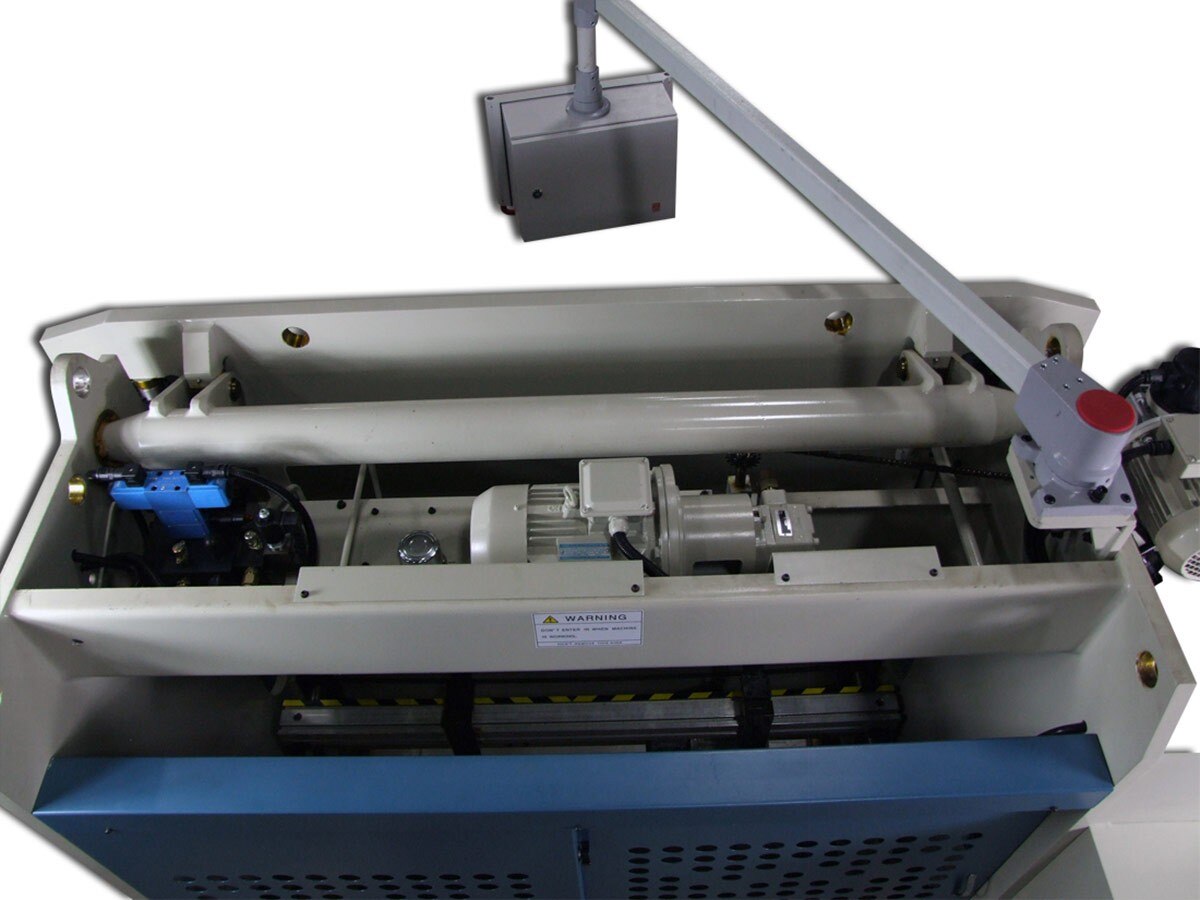

• Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times.
• Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine remains balanced and lasts longer.

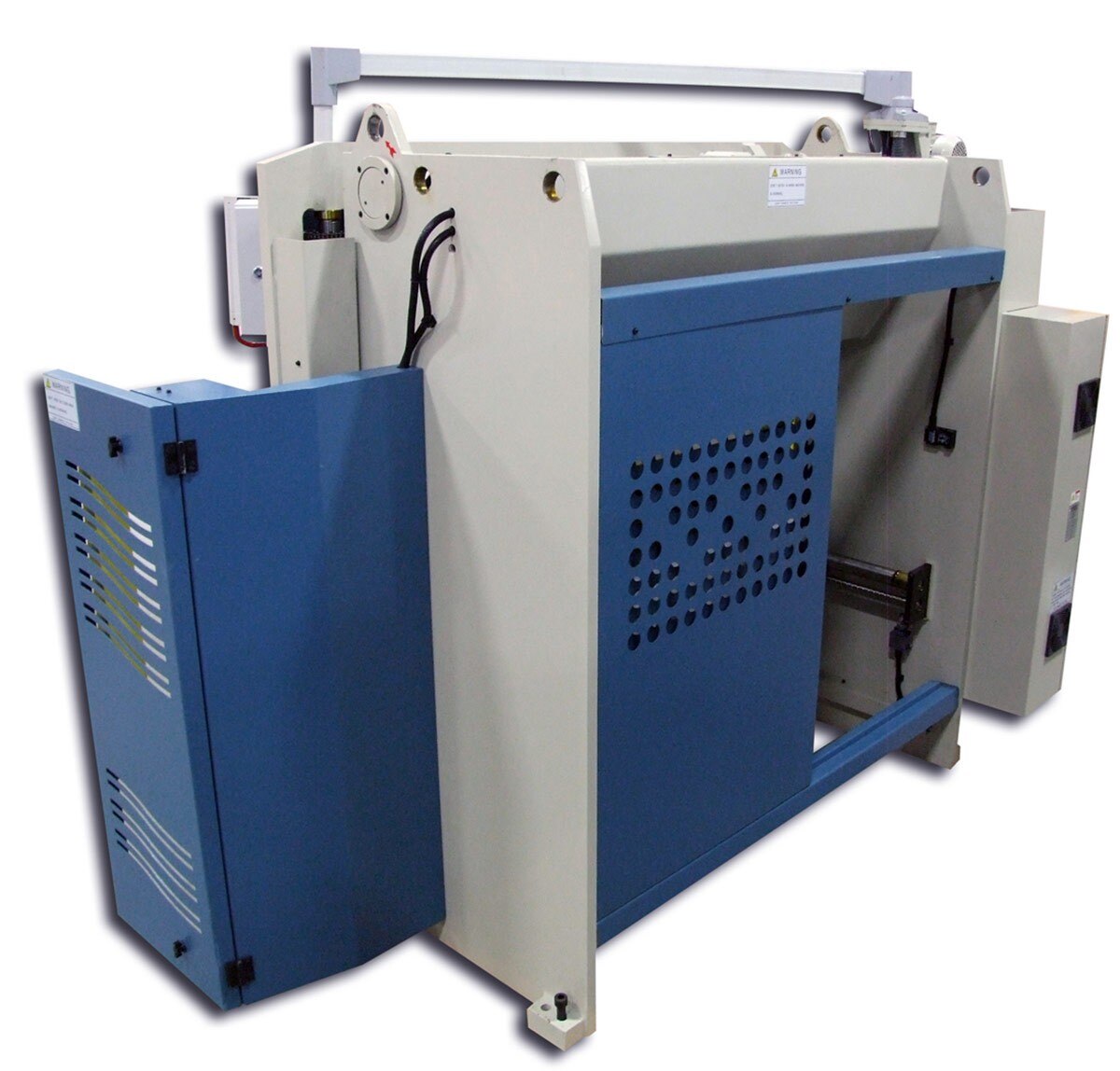

• Hydraulic cylinders are located in the back of the machine for convenient fluid changes.
• Runs in single-bend mode or programmable mode.
• Comes standard with 2 axes of control: stroke and back gauge distance.

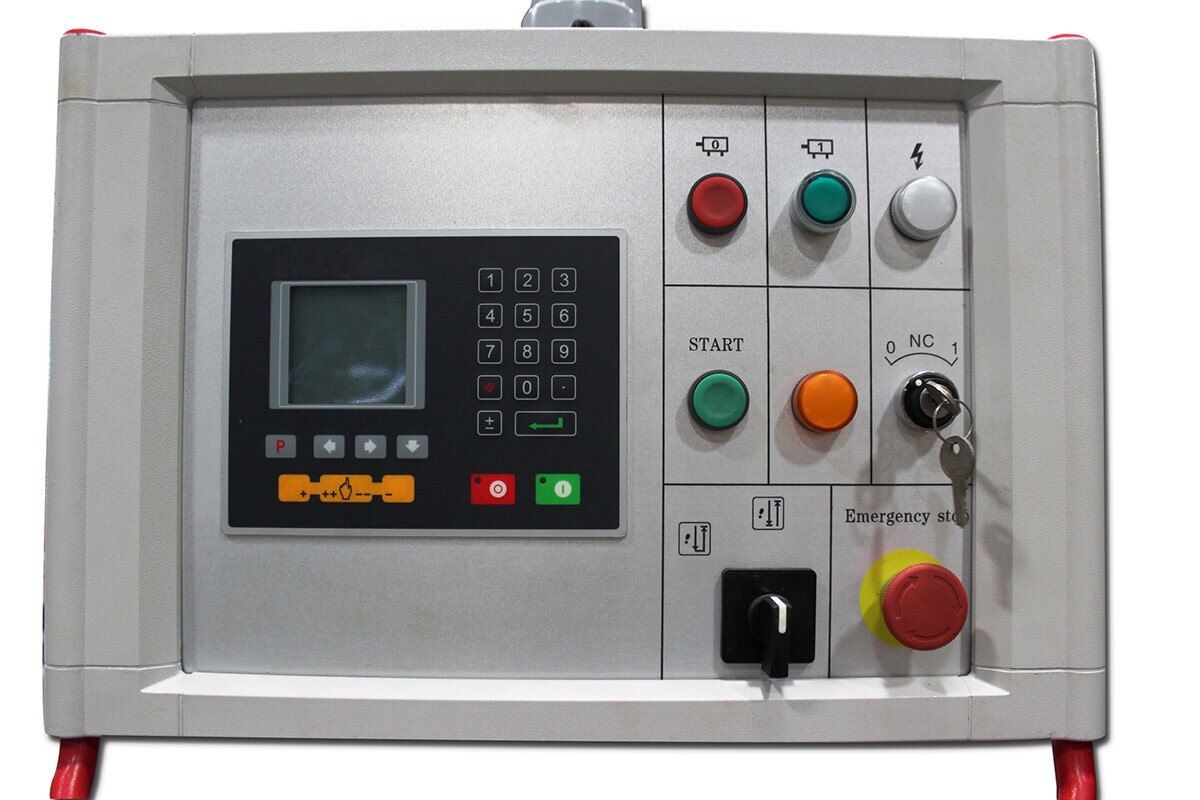

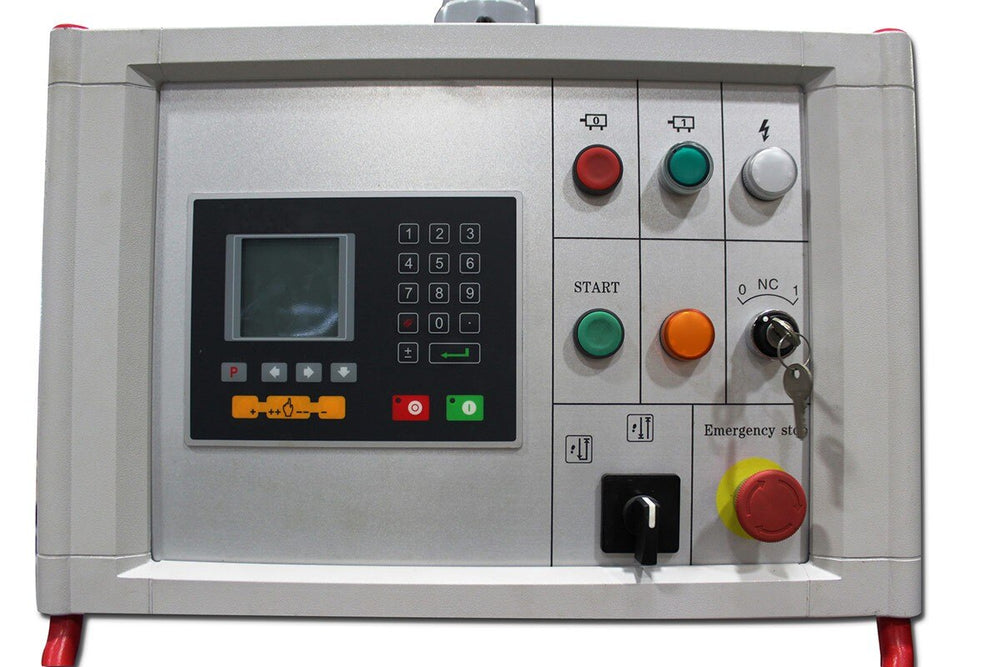

• Simple controller is so intuitive that you could train someone to use it in 5 minutes.
• Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
• Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.
• Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.

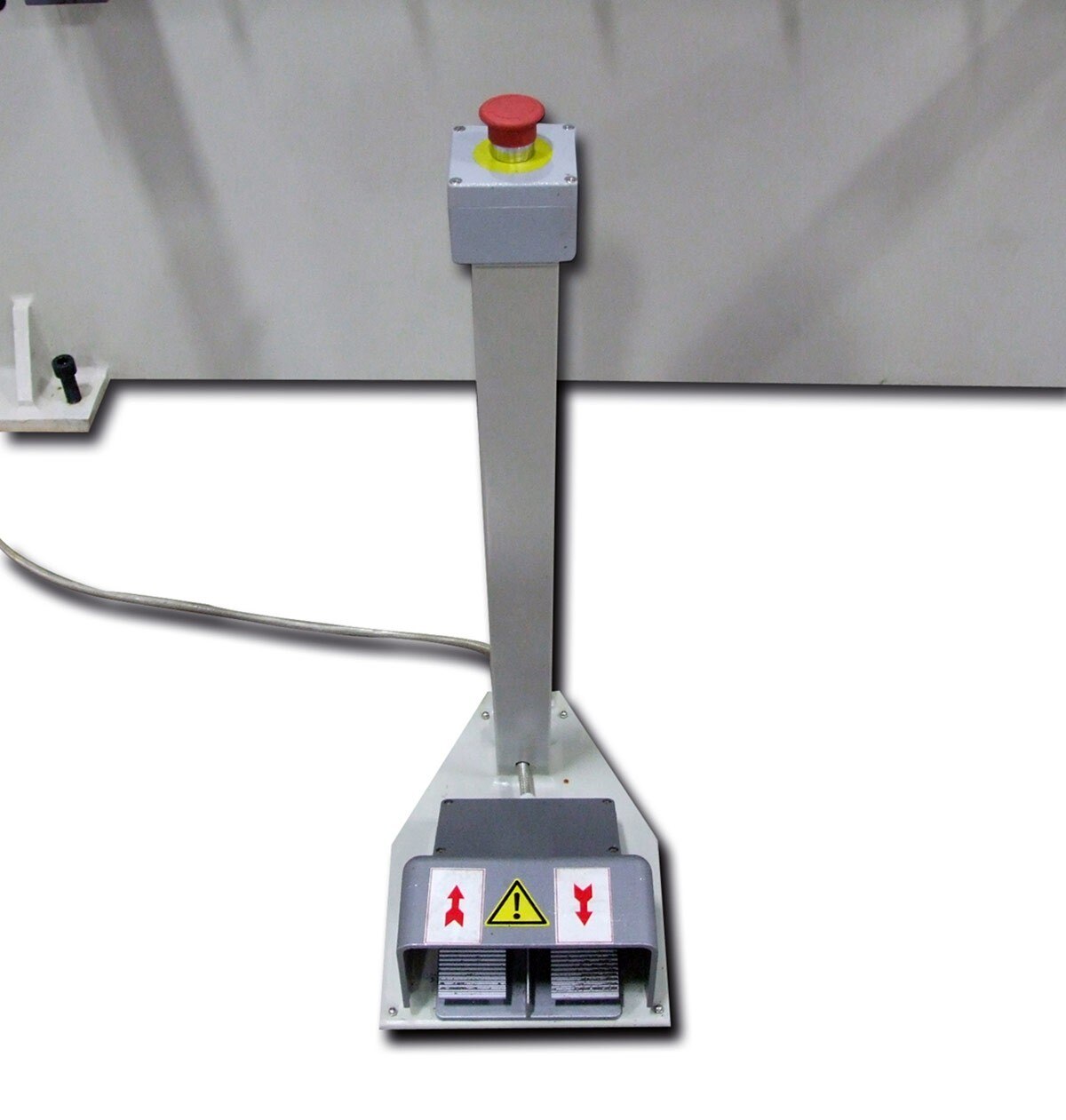

• Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
• You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
• Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
• Faster speed option lets you reduce cycle times and bend more quickly.
