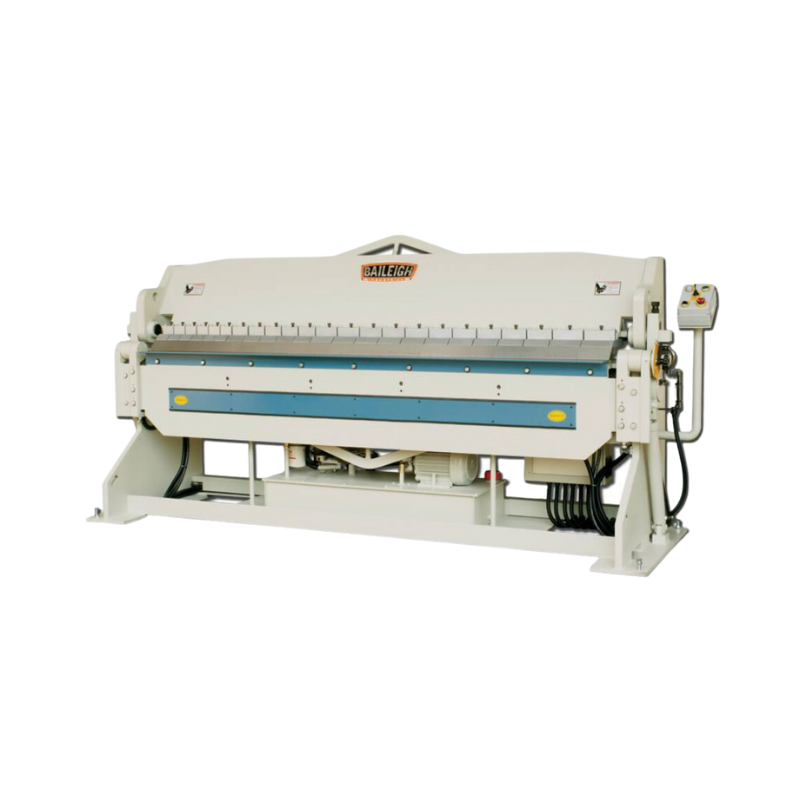

The Baileigh BB-9610H is an industrial-grade hydraulic box and pan (finger) brake engineered for fabrication shops that require high-capacity bending, precision control, and repeatable production performance. With its ability to bend full 8-foot sheets of 10-gauge mild steel, this machine is built for demanding metal forming applications.

Key Features

8-Foot Bending Capacity (96”)
Designed to handle large sheet metal panels, the BB-9610H delivers full-length bending across 96 inches, making it ideal for HVAC, enclosures, and structural fabrication.

10-Gauge Mild Steel Capacity
Capable of bending up to 10-gauge mild steel, while also maintaining precision on lighter materials thanks to advanced design features.

Hydraulic System with 5 HP Motor
Powered by a 5 HP, 220V 3-phase motor, the industrial hydraulic system clamps and bends material smoothly, reducing operator effort and increasing consistency.

Automatic Crowning Compensation
This feature automatically adjusts pressure across the beam to ensure uniform bends across the full width, even at maximum capacity.

Programmable Bend Angle (Up to 135°)
Includes an adjustable auto-stop system that allows operators to set precise bend angles up to 135 degrees, improving repeatability in production runs.

22 Hardened Finger Set (Box & Pan Capability)
Comes standard with 22 segmented fingers (3”–6”), enabling the creation of boxes, pans, and complex shapes up to 6” depth.

Manual or Semi-Automatic Operation
Operate via foot pedal or joystick controls, allowing flexibility between manual control and semi-automatic production workflows.

Heavy-Duty Welded Steel Frame
Constructed with a fully welded beam and truss rod support, minimizing deflection and ensuring accurate bends even under heavy loads.

Specifications

• Model: BB-9610H (BA9-1021003)
• Bending Length: 96" (8 ft)
• Capacity: 10 gauge mild steel (12 gauge stainless)
• Max Bend Angle: 135°
• Box Depth: 6"
• Motor: 5 HP
• Power Requirement: 220V, 3-phase
• Beam Adjustment: 1"
• Finger Sizes: 3", 4", 5", 6" (22-piece set)
• Operation: Hydraulic (manual or semi-auto controls)
• Weight: Approx. 5,640–5,940 lbs

Ideal Applications

• Sheet metal fabrication shops
• HVAC duct and enclosure manufacturing
• Electrical cabinets and metal boxes
• Industrial production environments
• Custom metal forming and bending
