• Description

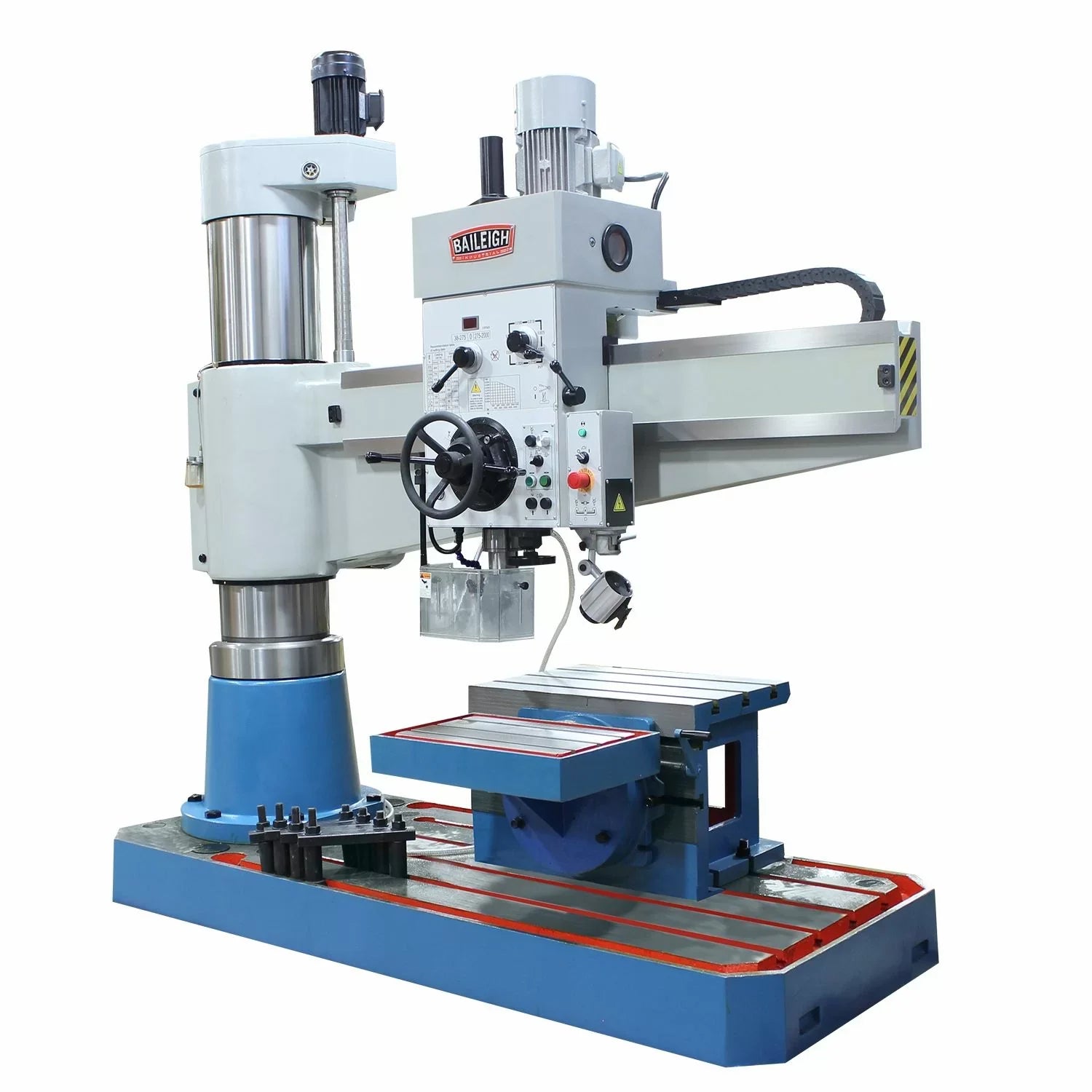

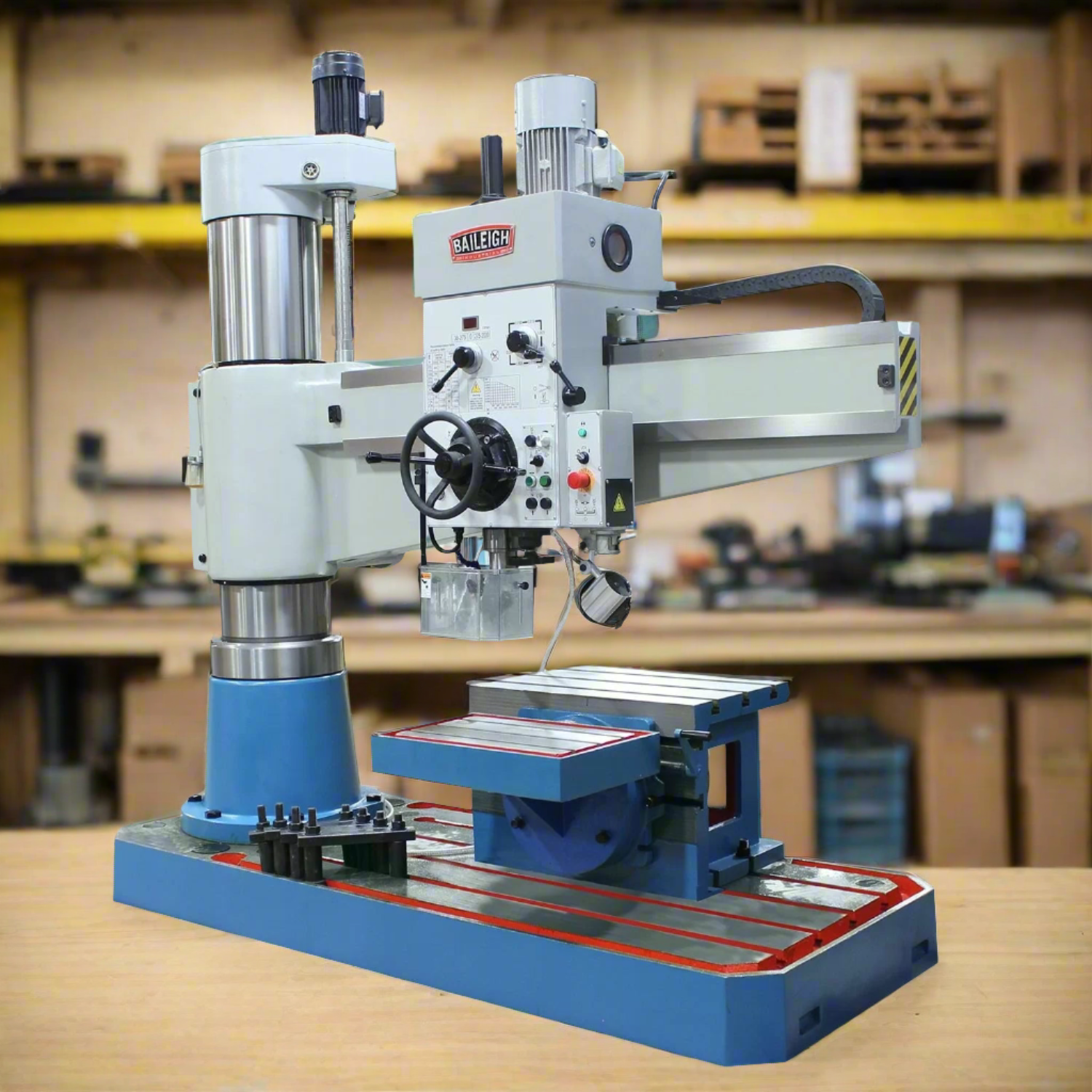

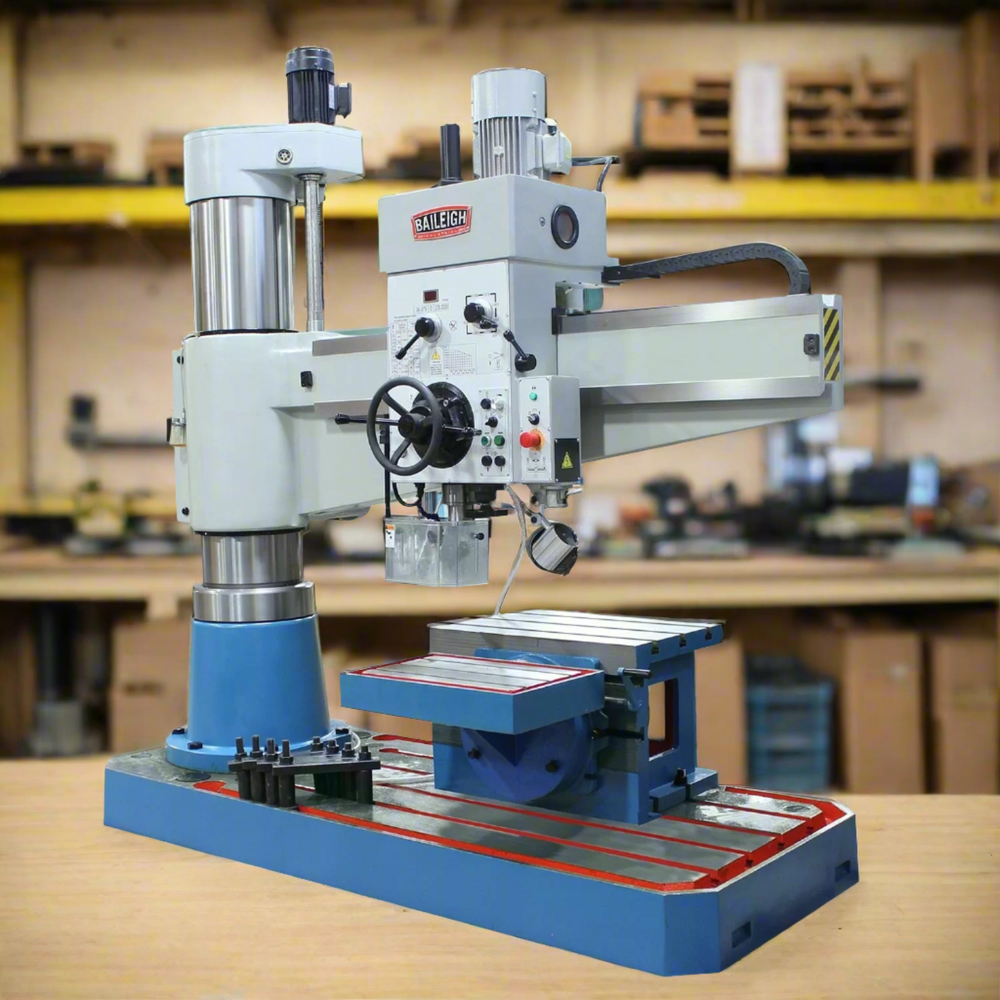

Baileigh Industrial RD-1600H-VS 5' Hydraulic Variable Speed Radial Drill with Quick Change Tool Set and Rotary Axis 5-1/4HP,220V 3Phase BA9-1019843

RD-1600H-VS Variable Speed Radial Drill is a step above other conventional radial drills. It is suitable for medium and small parts in drilling, spot facing, counter-boring and taping etc. It is really an idea machine suitable for single work piece machining and batch  production in the machining workshop, maintenance workshop and tool production workshop.

Features

  • 220V 3-phase
  • 38 to 2000 rpm
  • Heavy duty, oversized MT5 spindle
  • Power down feed

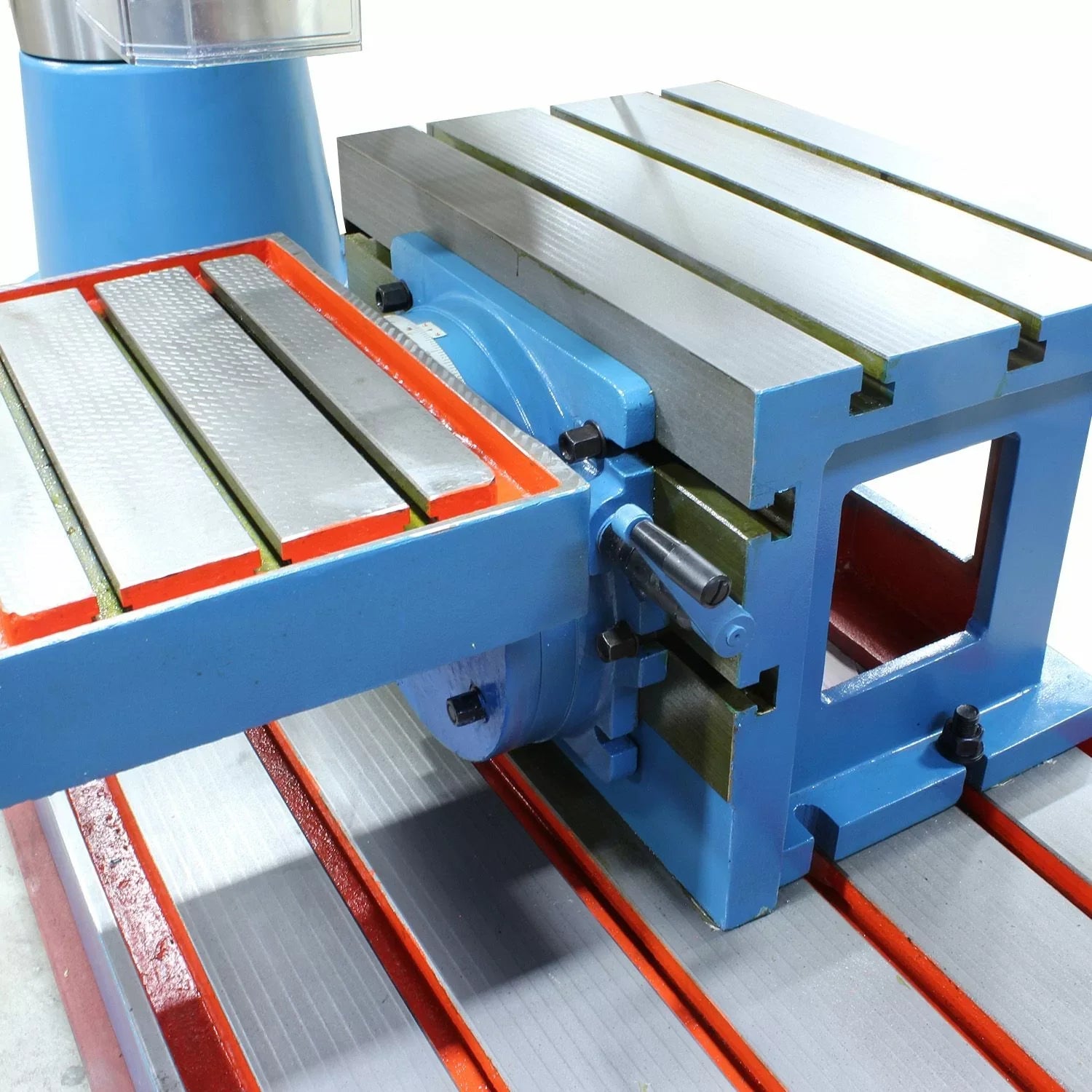

  • Box shape worktable
  • Inverter driven, variable speed
  • Integrated coolant system with easy to reach switch
  • Hydraulic clamping for column, arm, and spindle box



Specifications

Stock Number BA9-1019843
Distance Spindle to Column (Max.) (In.) 63"
Distance Spindle to Column (Min.) (In.) 13-3/4"
Model Number RD-1600H-VS
Motor (HP) 5.25 hp
Number of Spindle Speeds 38 to 2000 rpm (variable)
Prop 65
Cancer and Reproductive Harm
Spindle Taper (In. x TPI) MT5
Tapping Capacity Mild Steel (In.)
1-3/4" (No.45 steel) & 2" (HT200 cast iron)
Warranty 1 Year
Weight (Lbs.) 8500
Gross Weight 8500
Input Power 220V 3-phase
Range of Spindle Speeds (RPM) .0024" to .0394" in/rev
Shipping Dimensions (L x W x H) (In.) 102.375
