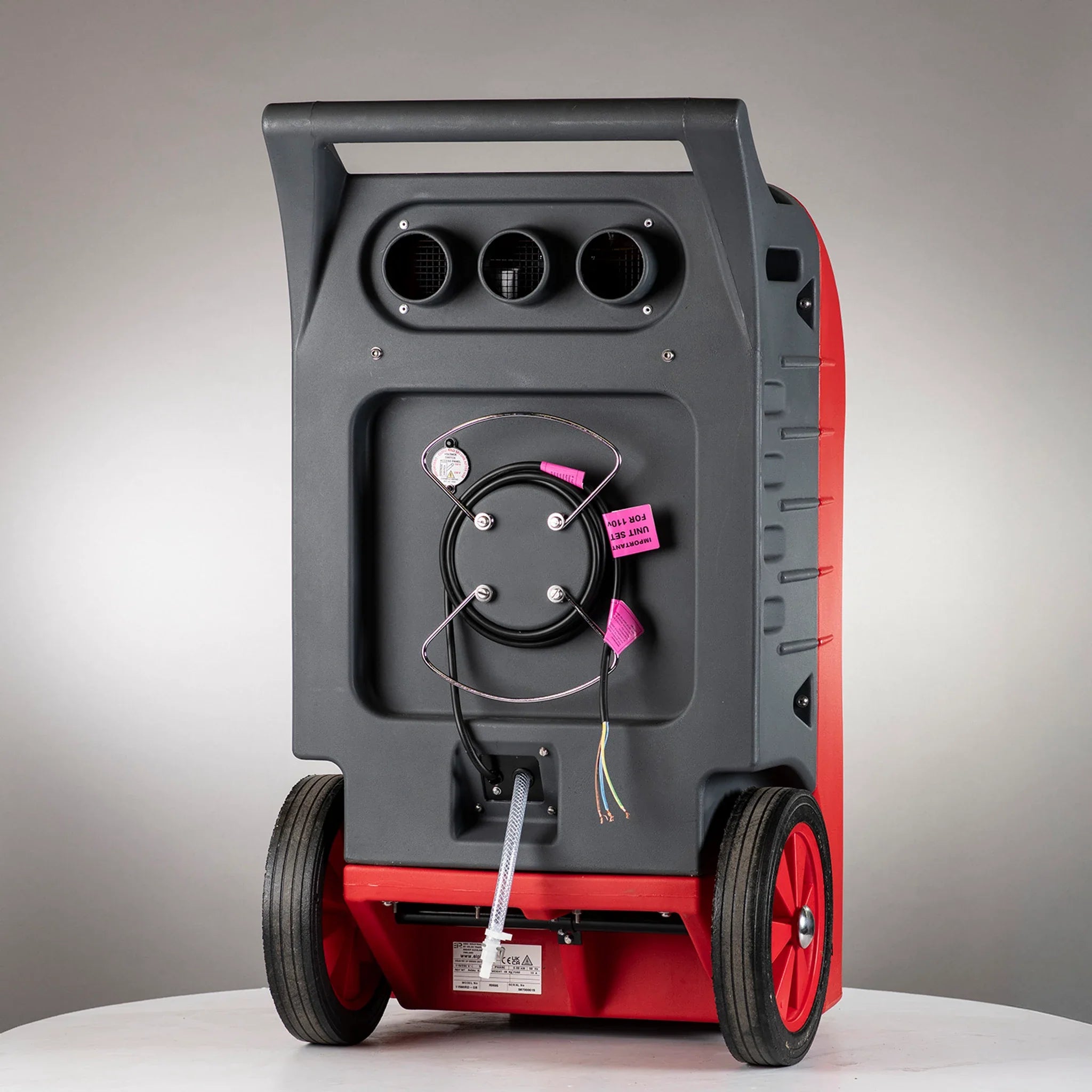

Ebac RM85 10560RG-US Dehumidifier – 70 PPD, 115V, Rotomolded

Ebac RM85 10560RG-US Dehumidifier – 70 PPD, Integral Pump, Rotomolded Housing

The Ebac RM85 10560RG-US removes 70 pints per day using a rotary compressor housed in rotationally molded polyethylene — the same impact-resistant material used in whitewater kayaks. It includes a high-capacity integral condensate pump rated for up to 3-meter lift height, eliminating manual bucket emptying and enabling continuous unattended operation. At 37°F minimum operating temperature, it covers cold crawl spaces and unheated structures. The stackable frame lets fleets store multiple units in the same footprint as a single non-stackable unit.

Ebac RM85 Extraction and Physical Specs

• Typical extraction: 70 PPD
• Voltage: 115V / 60Hz, 1-phase
• Power draw: 680W / 6A
• Airflow: 390 m³/hr
• Noise level: 52 dBA
• Refrigerant: R407c
• Min operating temp: 37°F
• Effective volume: 237 m³
• Weight: 99 lbs
• Dimensions: 37" H × 21.5" W × 19" D

Where Restoration Companies Deploy the RM85

Restoration companies with equipment fleets specify the RM85 for its pump-integrated, stackable design. The integral condensate pump handles drainage without technician attention — critical for unattended overnight drying cycles on water damage jobs. Stack three or four units for transport in a standard cargo van, then place individually in rooms. At 52 dBA, the RM85 operates quieter than the Ebac Neptune and Triton despite extracting 35% more moisture per day. The rotomolded polyethylene housing absorbs job site impacts that would crack metal-cased units.

Restoration Billing: Xactimate and ETL

The Ebac RM85 is a conventional refrigerant dehumidifier at 70 PPD — below the 85 PPD threshold for Xactimate WTRDHM>XL. Bill as WTRDHM>L. ETL-listed for US and Canadian markets (CETL). The hot-gas thermostatically controlled defrost allows operation at 37°F without stopping the drying cycle. No desiccant Xactimate code applies — this is a refrigerant unit.

Specifications

Documents

RM85 Wiring Diagram (PDF)

RM85 Wiring Schematic (PDF)

Spec Sheet

Manual
