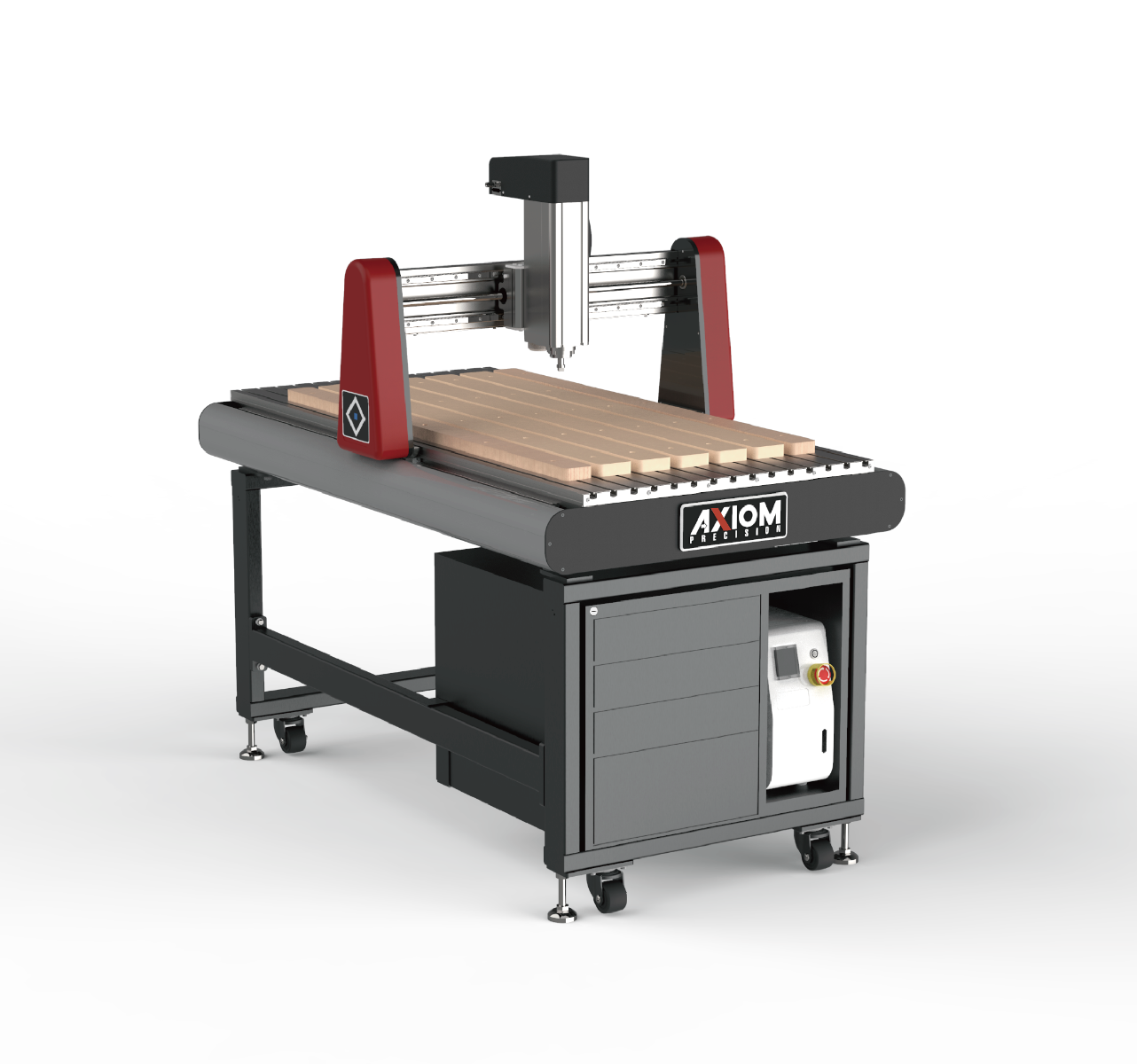

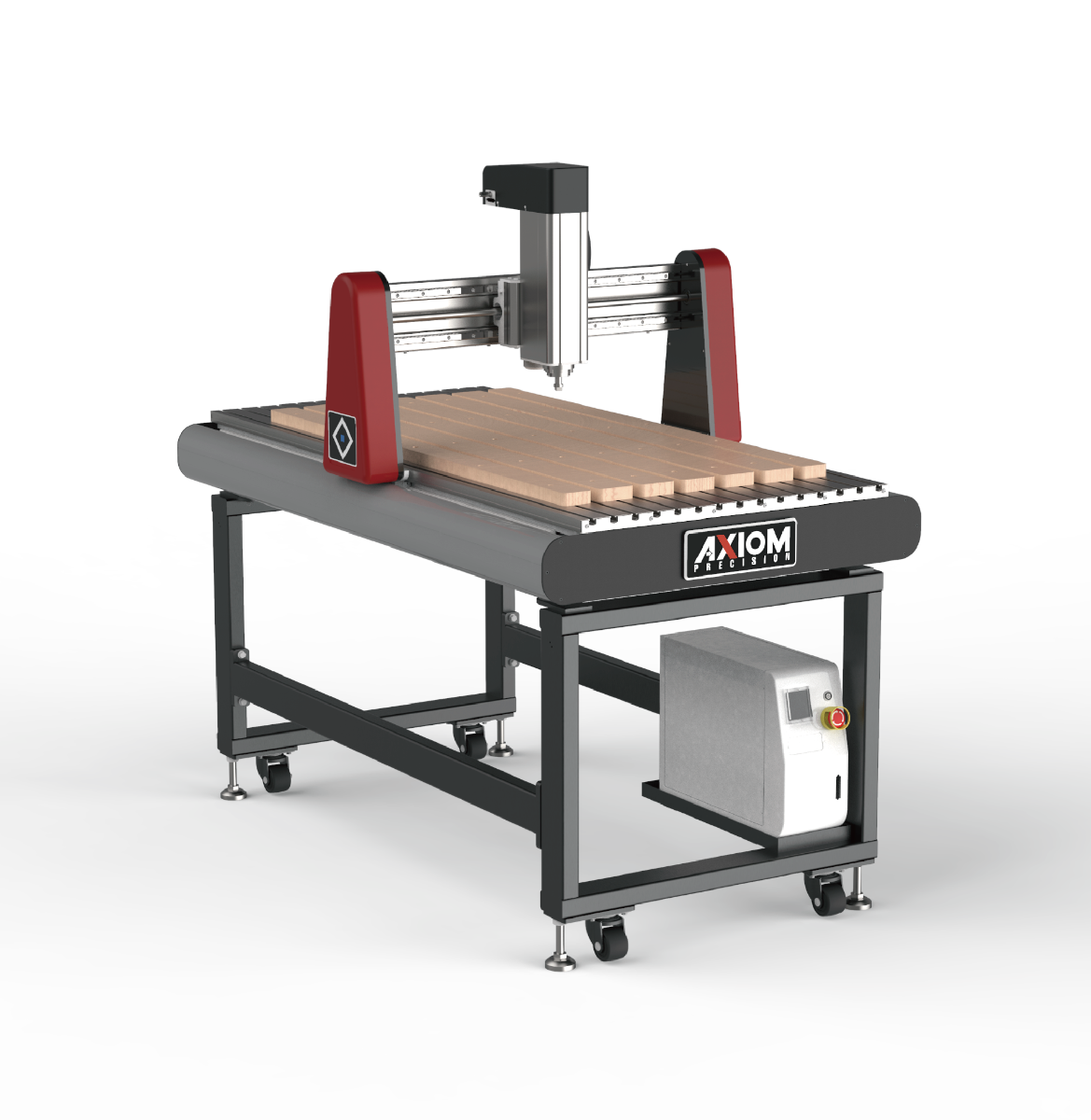

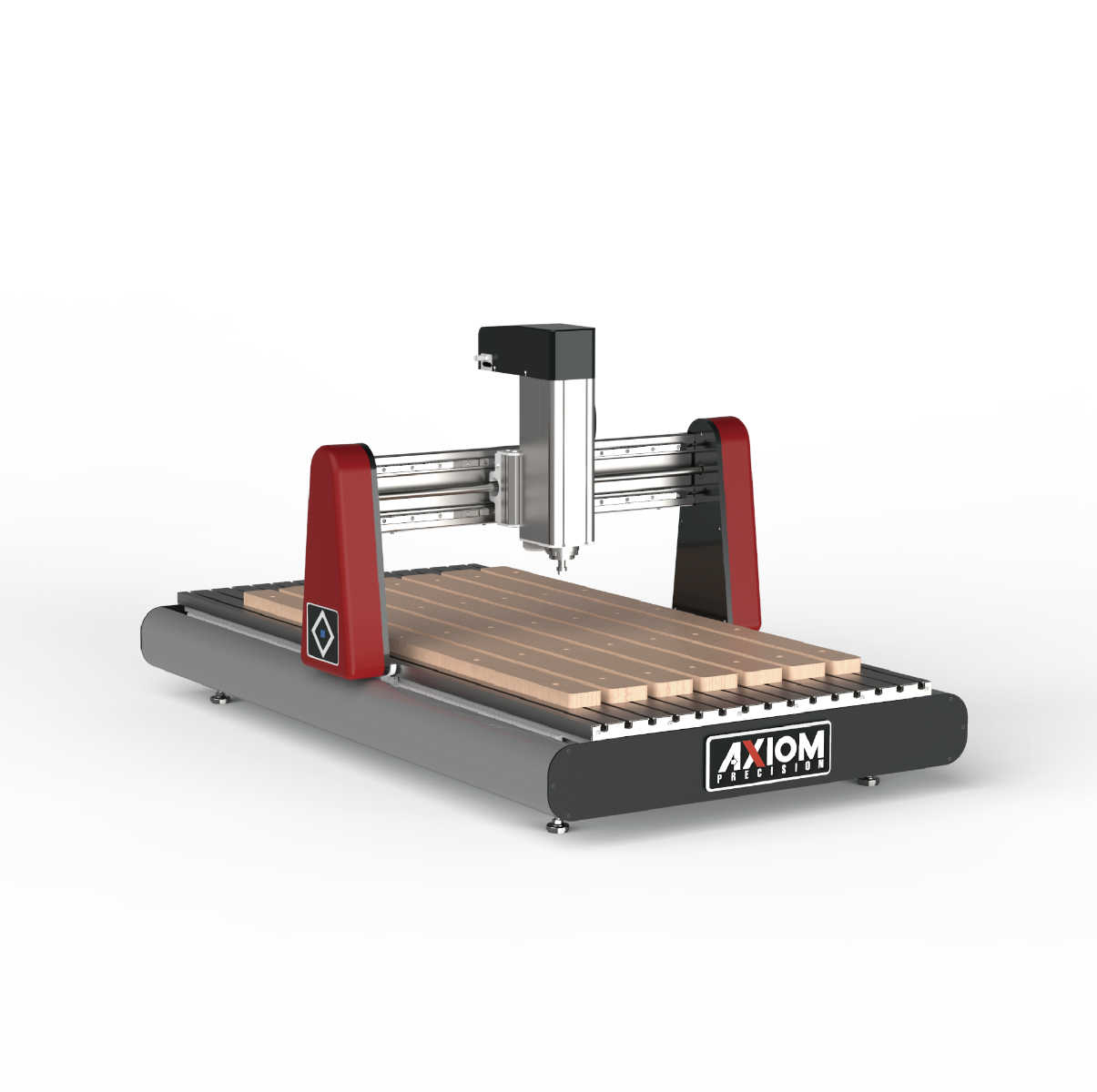

Axiom Iconic 8 24" x 48" CNC Router ICONIC8

If you're searching for the finest small-format CNC machine center, we're confident that your search will end here. Stay a while. Learn how we do things. We're convinced that the more you learn, the more you'll know that the Iconic series is the right CNC solution for you.

Features:

• Interlocking Aluminum Table - This is a seriously strong table. The massive 30mm thick extruded aluminum table provides a strong, flat surface to support your material. Integrated T-slots allow placement of hold-down clamps in any location, and a sacrificial MDF spoil board ensures that your table will always remain flat and damage-free.
• Structural Steel Frame - You wouldn’t build a home on a compromised foundation…Nor should you build a CNC router on one. Our welded, structural steel frame is heavy, rigid, and accurate. It supports the weight of your Axiom machine with ease. It also offers mounting flanges in each corner to secure your machine to an optional Axiom stand, or your work surface.
• Cast Gantry Supports - Heavy components traveling at a high rate of speed generate high forces of inertia. The horizontal gantry support (located beneath the table), and the vertical gantry legs take the brunt of that force. Each gravity-cast aluminum component is powder coated and engineered to be completely overqualified for its job.
• Proximity Sensors - These magnetic sensors act as the CNC's eyes. They allow you to ‘home’ your machine so it knows where the spindle is in relation to the working envelope. Noticeably absent in many of our competitor’s machines, these sensors prevent the gantry from colliding with the stops when you run it to the extent of its travel.
• Ball Screws - Motion on every axis of every Iconic machine is controlled by high-precision ball screws. These ball screws utilize recirculating ball bearings to provide close tolerance and offer unmatched accuracy. Their ability to create low internal friction, while withstanding high thrust loads at high rates of speed, is paramount to the accuracy of each Axiom CNC machine.
• Linear Guideways - Our linear guideways utilize recirculating bearings between a prismatic rail and a bearing block. The coefficient of friction on our linear guides is only a small fraction of what is created by traditional round guides, and are able to take loads in all directions. With these features, our CNC machines achieve high precision and greatly enhanced moving accuracy.
• Industrial CNC Controller - The task of controlling your CNC machining center shouldn’t be relegated to a PC and a piece of software. Instead, we’ve integrated an industrial DSP controller with a hand-held pendant. This control solution is powerful, stable, and terribly easy to operate. It’s also fully upgradable so you can install the latest firmware as needed.
• Cable Track Chain - A loose bundle of wires almost always results in abrasion, stress, and broken leads. Our power and data cables, as well as cooling hoses, are contained within a lightweight, flexible nylon track chains to ensure that data is never interrupted by a broken wire.
• High Torque Steppers - Depending on which machine you choose, each axis is controlled by a 57mm, NEMA 23 equivalent high-torque stepper motor. Each fast device is rated for high-duty cycles, and will provide thousands of hours of trouble-free precision.
• Tool Touch-off Device - Each time you install a bit in your Axiom CNC machine, you’ll need to accurately determine the length of the new tooling. Simply slide the tool touch-off device beneath the bit, initiate the ‘measure’ command on your hand-held controller, and the bit length will automatically be determined and stored in the DSP.
• Industrial Data Connectors - The performance of your machine relies upon the accurate transfer of data to the stepper motors. Every wire connecter found in an Axiom machine is of the highest quality available. Where available, we use aerospace quality components with metal bodies, copper terminals, and threaded locking rings.

Specifications:

• Supported Collet Size: ICONIC 8
• Collet Diameter: ER-11
• Spindle Speed (RPM): 1/8" & 1/4" Incl.
• Dust Collection Minimum CFM Required (CFM): 0-24,000 RPM
• Dust Port Outside Diameter (In.): 500
• Rapid Feed Rate - Inches P/Min (IPM): 2.5"
• CNC Working Size (W x L): 150 IPM
• Z-Axis Travel Distance: 23.81" x 47.63" (605mm x 1210mm)
• Maximum Gantry Clearance (No Spoil-Boards): 3.937" (100mm)
• Max Gantry Clearance (w. Spoil-Boards): 5.5" (139mm)
• Max Amperage: 4.5" (115m)
• Motor Power (HP): 13A
• Motor Voltage (V.): 800W (1.1HP)
• Precision Linear Guideways: 110V
• Ball Screw Diameter: X/Y/Z
• Ball Screw Resolution: 16mm
• Overall Dimensions (L x W x H) (In.): 0.00589 (0.15mm)
• Working Table Construction: 38"L x 35"W x 28"H
• Gantry Support: Interlocked - High Rigidity Aluminum Extrusion
• Prewired Voltage (V.): Machined Aluminum Billet
• Prop 65: 115V, 50~60Hz, 13A, 1-Phase
• Recommended Circuit Size (Amps.): Cancer and Reproductive Harm

Includes:

• (1) CNC Machine
• (1) 1/8" & (1) 1/4" ER-11 Collets
• (2) Wrenches
• (1) Touch-Off Device
• (1) Complete Control Box with RichAuto B11 DSP Handheld Controller and Cable
• (1) Manual
