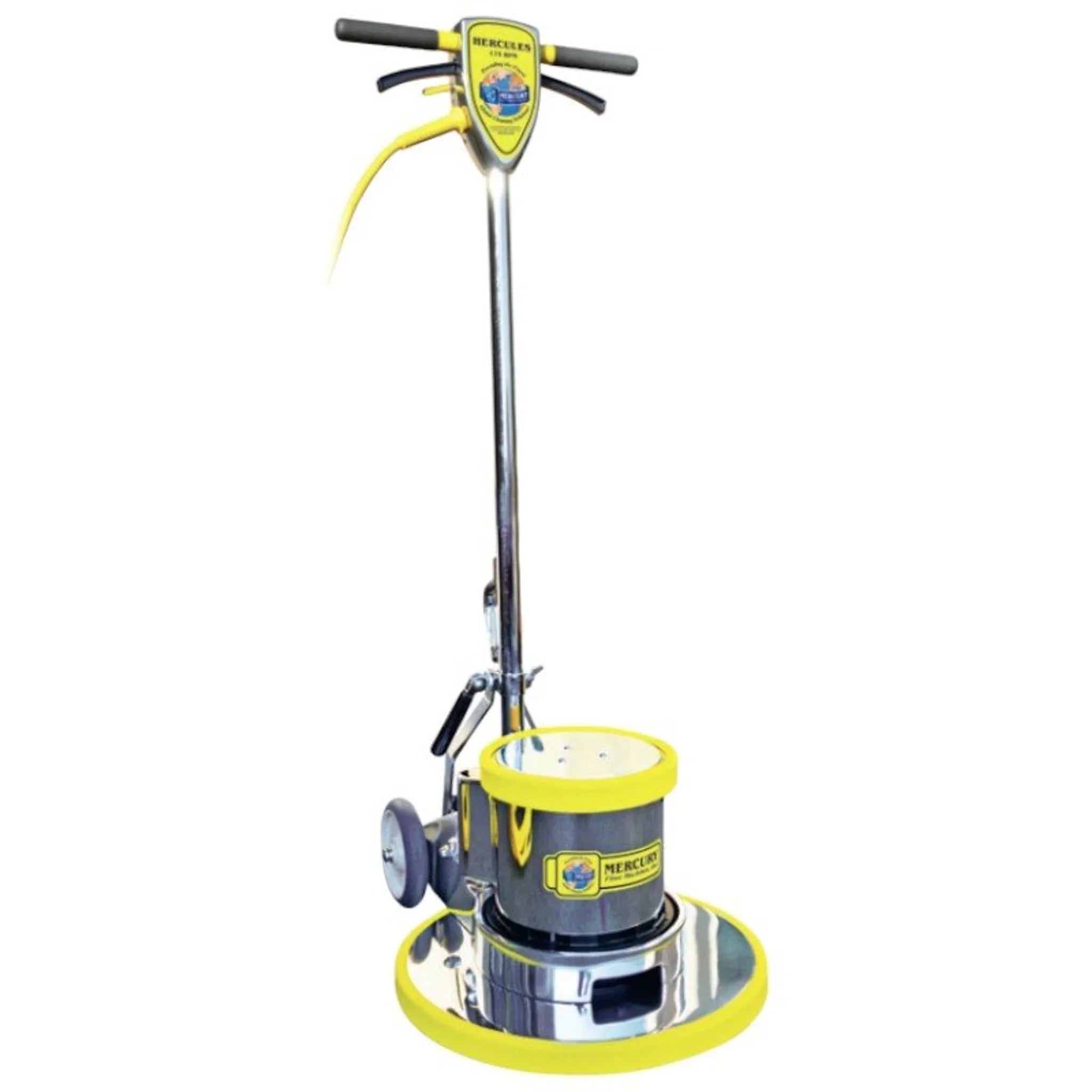

Mercury Floor Machines H-15E Hercules Floor Machine – 15", 175 RPM, 104 lbs

Mercury H-15E Hercules: 15" Super Heavy-Duty Floor Machine at 175 RPM

The H-15E is the narrowest model in the Hercules series — a 15" apron at 175 RPM, weighing 104 lbs. For facilities with access constraints that prevent any wider machine from operating in specific zones, the H-15E brings Hercules-series motor power, dual-capacitor A/C drive, and triple-planetary gearbox torque to the tightest footprint in the lineup.

H-15E Motor, Transmission, and Pad Specifications

• Apron size: 15" — the narrowest in the Hercules line; accesses zones that 17", 19", and larger models cannot
• Speed: 175 RPM — single-speed for stripping, scrubbing, buffing, and carpet bonnet cleaning
• Machine weight: 104 lbs — heavier than the 17" model (106 lbs) is false; 104 lbs is lighter than H-17E (106 lbs), H-19E (107 lbs), and H-20/21E (108 lbs)
• Motor: 1.5 HP A/C dual-capacitor — same motor platform as all Hercules models
• Transmission: Triple-planetary gearbox — three gear sets multiply torque to the pad
• Included accessories: 14" pad driver and 13" rotary brush
• Electrical: Up to 15A draw; two 15A circuits recommended for extended operation

Where the H-15E Fits When No Other Hercules Can

Most commercial facilities operate Hercules machines at 17" or larger. The H-15E exists for the zones those machines cannot reach — access corridors between equipment in manufacturing plants, server room aisles, laboratory bench passageways, walk-in cooler interiors, and any environment where a 17" machine is 2 inches too wide to operate without contact risk. At 104 lbs, the H-15E carries more weight than standard-duty 15" machines (typically 75–85 lbs), so despite its narrow pad, it delivers meaningfully more downward force per pass. This weight advantage is the primary reason to choose the H-15E over a lighter narrow machine: stripping and scrubbing effectiveness in tight spaces is limited more by machine weight and torque than by pad width, and the H-15E provides both where alternatives do not.

Pad Pressure, Torque, and the Triple-Planetary Gearbox at 15" Scale

At 104 lbs on a 14" pad driver, the H-15E delivers the highest pounds-per-square-inch of any model in the Hercules series — the same machine weight concentrated over the smallest pad area. This localized pressure is the mechanical basis for the H-15E's effectiveness in stripping: the pad contacts finish with more force per square inch than a 19" or 21" machine at the same weight, which means chemical-to-mechanical action at the finish surface is more efficient per pass. The triple-planetary gearbox sustains the 1.5 HP motor's torque output to the 14" pad throughout each pass, and the dual-capacitor A/C motor prevents the heat buildup under sustained load that single-capacitor motors experience in extended stripping sessions. For facilities that have historically relied on manual methods or consumer-grade machines in these narrow spaces, the H-15E is a meaningful capability upgrade in a compatible footprint.

Documents

Owner's Manual · Parts List · Sell Sheet · Wiring Diagram
