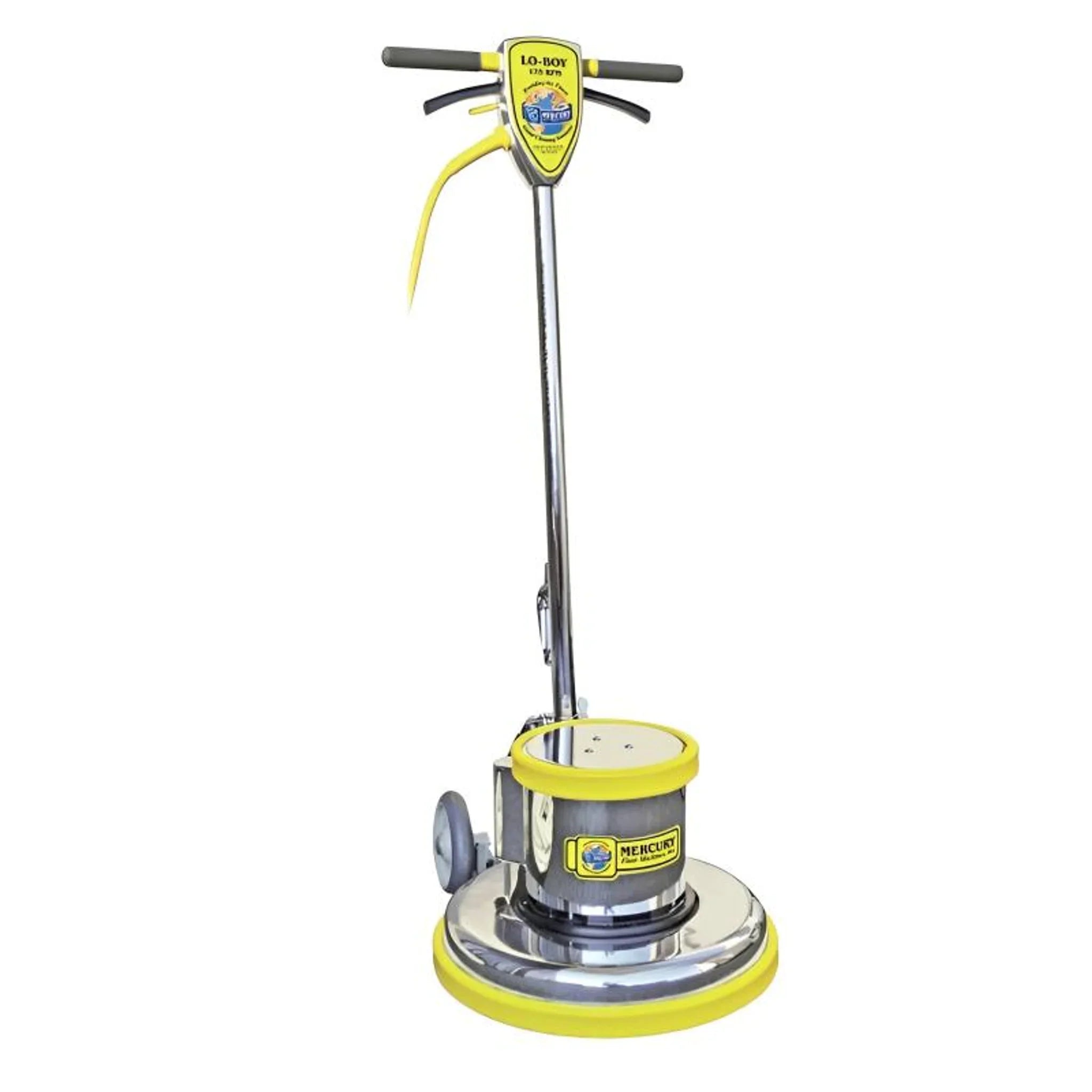

Mercury Floor Machines L-21E Lo-Boy Floor Machine – 21", 175 RPM, 105 lbs

Mercury L-21E Lo-Boy: 21" Ultra-Quiet Floor Machine at 175 RPM

The L-21E is the largest apron size in the Lo-Boy series — 21" at 175 RPM, weighing 105 lbs. Like the L-19E and L-20E, the L-21E positions its gearbox under the apron rather than in the handle column, which reduces noise transmission through the machine frame. At 21", it offers the widest coverage in the Lo-Boy lineup while retaining the acoustic profile that makes the series suitable for occupied-building cleaning.

L-21E Motor, Transmission, and Pad Specifications

• Apron size: 21" — the widest in the Lo-Boy series; covers more floor per pass than the 19" or 20" models
• Speed: 175 RPM — identical to the Hercules series; low noise output at the same cleaning speed
• Machine weight: 105 lbs — 2 lbs lighter than the L-20E (103 lbs) wait, 2 lbs heavier; heavier than L-20E (103 lbs) and L-19E (102 lbs)
• Motor: 1.5 HP A/C — same power as the Hercules series; draws 13–15A under load
• Gearbox location: Under the apron — enclosed in the low-profile housing for noise dampening
• Included accessories: 19" pad driver and 18" rotary brush
• Electrical: 13–15A draw; two circuits recommended for sustained operation

Where the 21" Lo-Boy Fits in Large-Format Quiet Cleaning

The L-21E is the Lo-Boy model for large open floor areas — hospital atria, hotel lobbies, airport concourses, and university commons where a 19" or 20" machine would require more passes to cover the same square footage. In these environments, the noise reduction benefit of the Lo-Boy gearbox design matters most: the larger the open space, the further machine noise travels, and the more disruptive standard-weight floor machines are to occupants or visitors. At 105 lbs, the L-21E is 3 lbs lighter than the H-21E Hercules (108 lbs) — a marginal difference in cleaning performance but a meaningful one for operators who move the machine frequently between floors or load it onto freight elevators. If the priority is maximum pad pressure and noise is not a constraint, the H-21E delivers 3 additional pounds over the same 21" pad area.

Under-Apron Gearbox Design at 21" Scale

The Lo-Boy's gearbox location under the apron provides greater noise benefit at larger apron sizes because the apron housing creates a larger acoustic enclosure around the rotating gear assembly. At 21", the apron deck spans more surface area, giving the gearbox more physical shielding from the surrounding environment. This is why the L-21E is quieter in measured operation than a hypothetical standard-height machine with the same 21" apron: more apron area means more enclosure. At 105 lbs and 175 RPM, the gearbox is handling the same torque load as the Hercules equivalent — the engineering difference is acoustic management, not power delivery. For facilities that run overnight cleaning and need to transition to daytime operations without changing machines, the L-21E covers the full floor area of the H-21E at lower noise output.

Documents

Owner's Manual · Parts List · Sell Sheet · Wiring Diagram
