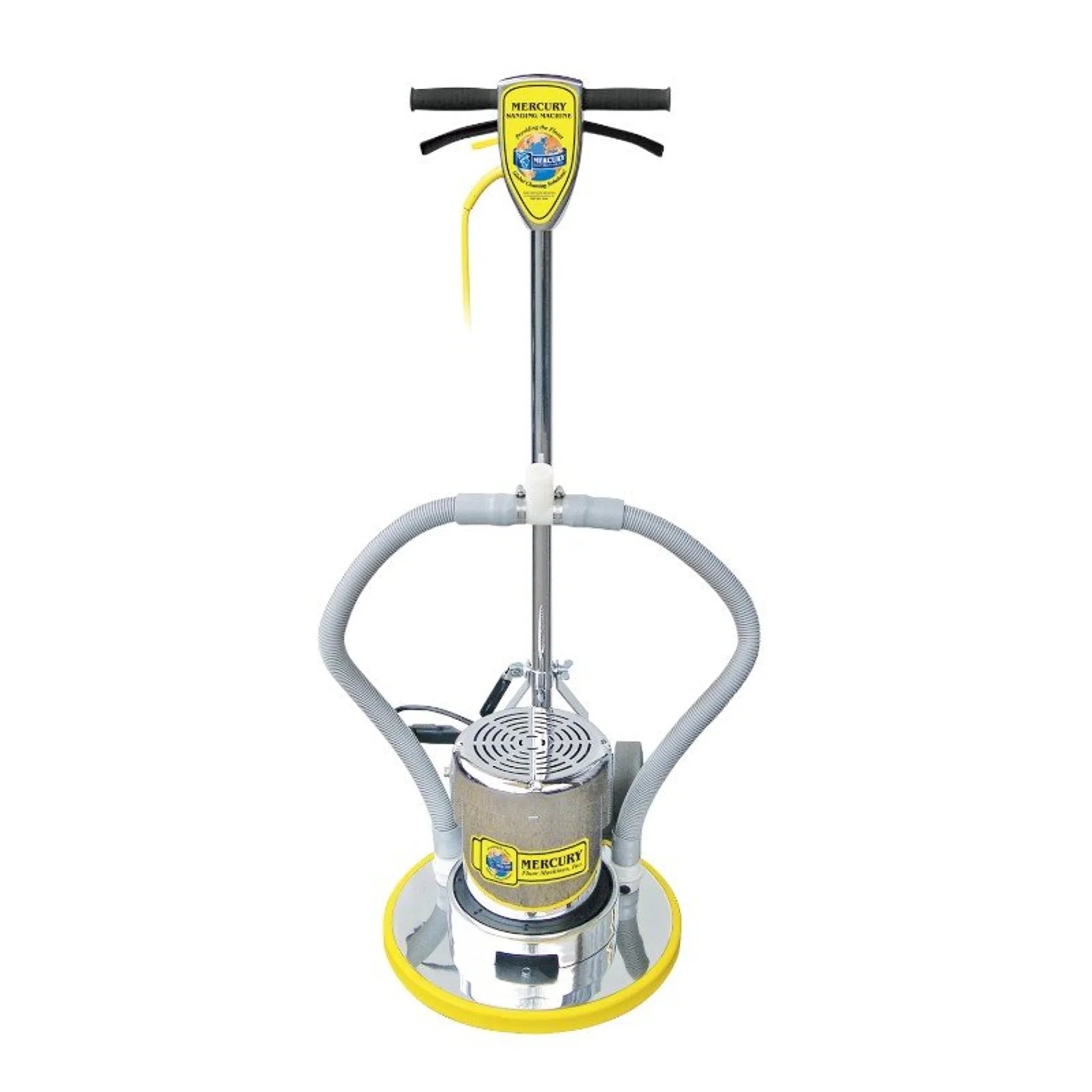

Mercury H-19S Hercules Floor Sander – 1.5 HP Sealed Motor, 19" Apron, 175 RPM

H-19S Hercules Floor Sander — 19" Sealed Motor Sanding Machine for Intermediate-Size Floors

The Mercury H-19S Hercules is the 19-inch version of the sealed-motor Hercules sanding line — one inch narrower than the H-20S with the same 1.5 HP sealed motor, triple-planetary transmission, and polished aluminum chassis. The H-19S is the right choice when the job site has doorways or corridors where a 20" apron is a tight fit, or when the facility manager specifies a 19" machine to match their existing pad inventory. It runs the same 18" rotary brush and accepts a 19" pad driver, handles wood, stone, and concrete sanding applications, and carries the same 5-year motor/transmission/chassis warranty as the rest of the Hercules line. Two YouTube videos demonstrate the machine in operation — see the Video section below.

H-19S Sealed Motor Performance and Pad Configuration

The sealed motor protection and triple-planetary gearbox are identical to the H-20S — the only difference is the one-inch narrower apron profile and corresponding brush/pad sizes.

• Sealed 1.5 HP AC motor (15 A, dual capacitors) — completely enclosed against dust infiltration, extending motor life in sanding environments where open motors fail from debris accumulation
• Triple-planetary high-torque transmission — delivers consistent 175 RPM under load on hardwood, concrete, and stone without motor strain
• 19" apron with 17" rotary brush — the active sanding element; compatible with standard 17" round abrasive screens and brushes
• 18" rotary pad driver with riser — for pad-based applications; the riser raises the driver to the correct operating height for the 19" apron
• 107-lb polished aluminum chassis — all-metal weight provides consistent downward pressure on the abrasive surface for uniform sanding results
• 6" non-marking fixed wheels — stable, level movement across the floor without marking finished or unfinished surfaces

H-19S Applications and Environments

Floor finishing contractors working in hotel corridors, school hallways, and apartment building common areas choose the H-19S when 20" machines are a tight fit through fire doors and doorways. Contractors who work in older buildings with narrower interior dimensions use it as the primary machine where the H-20S would require repositioning around obstacles. Stone restoration specialists polishing marble and terrazzo in tight retail spaces and restaurant dining rooms where maneuvering a 20" machine around fixed tables and fixtures is difficult use the 19" profile for better access. The sealed motor makes it appropriate for any application where fine dust is unavoidable and the machine will run for multiple hours per day.

H-19S RPM, Pad Compatibility, and Warranty

Runs at 175 RPM — appropriate for sanding, surface preparation, and light polishing. Use standard 17" abrasive screens for wood sanding, 19" diamond pads for concrete and stone surface prep, and 17"–19" floor pads for polishing sealed surfaces. The H-19S carries Mercury's 5-year warranty on the motor, transmission, and chassis.

Specifications

Documents

H-19S Owner's Manual
H-19S Wiring Diagram
H-19S Parts List
H-19S Sell Sheet

Video Overview
