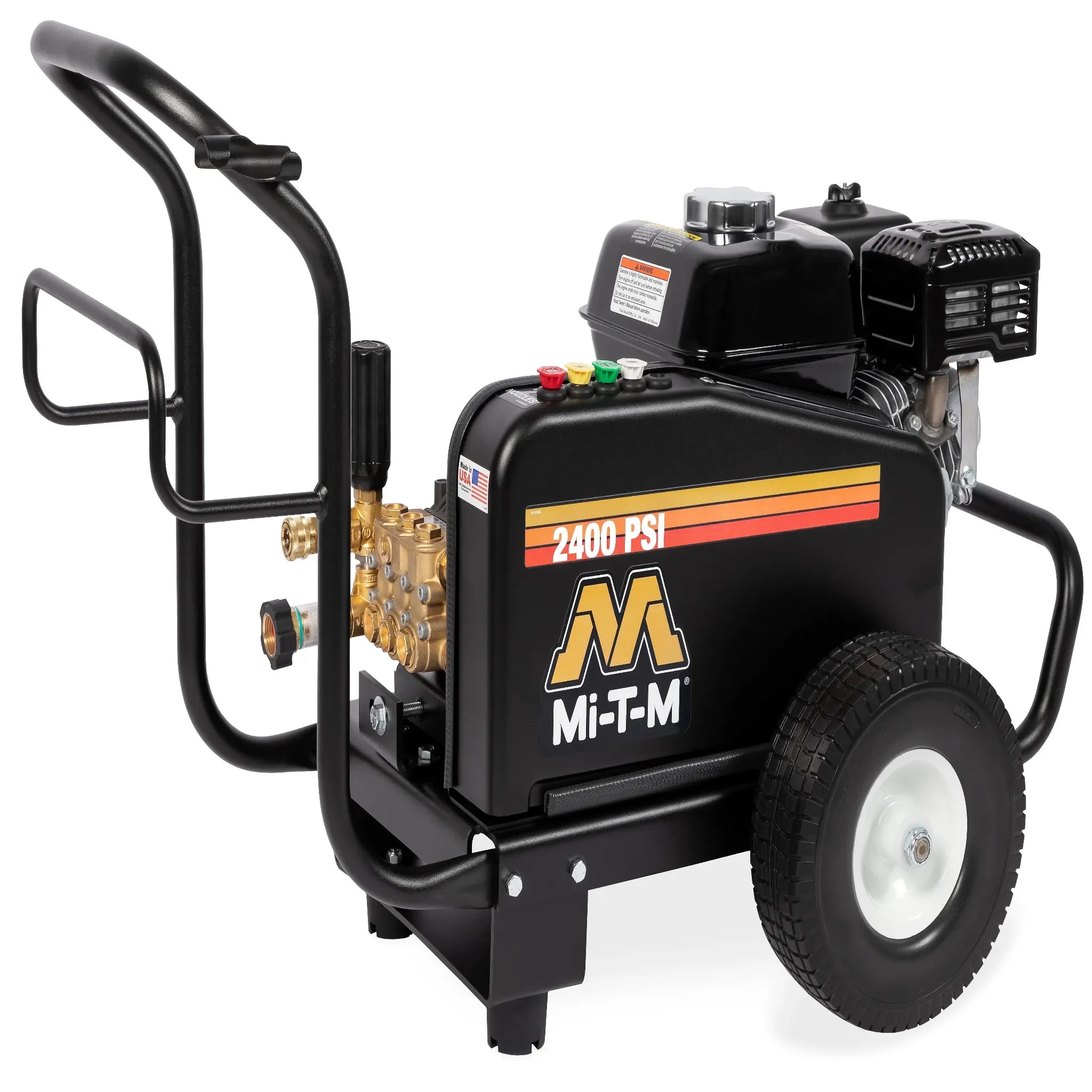

Mi-T-M JCW-2403-0MHB Gasoline Belt Drive Pressure Washer – 2400 PSI, 2.8 GPM, Honda GX200

Mi-T-M JCW-2403-0MHB: Belt Drive Gasoline Pressure Washer at 2400 PSI / 2.8 GPM

The Mi-T-M JCW-2403-0MHB delivers 2400 PSI at 2.8 GPM (6.72 cleaning units) through a belt-drive AR pump powered by a 196cc Honda GX200 OHV engine. At 178 lbs net, it rides on 10-inch flat-free tires for field mobility. The belt-drive connection reduces pump operating temperature and vibration compared to direct-drive designs, extending pump service life in sustained commercial use.

Belt Drive System, Honda GX200, and AR Pump Specifications

• AR belt-drive pump — runs cooler and quieter than direct-drive; forged brass manifold with thermal relief valve for overheating protection
• 196cc Honda GX200 OHV engine — commercial-grade engine with adjustable pressure unloader for precise PSI control
• 2400 PSI / 2.8 GPM — 6.72 cleaning units suitable for fleet washing, construction equipment, and agricultural machinery
• 10-inch flat-free tires — transport across gravel, mud, and uneven job-site terrain without flat risk
• 36-inch lance — working distance reduces operator contact with spray blowback
• 50-foot non-marking hose — reaches across vehicles and large surfaces without staining adjacent materials
• Four quick-connect nozzles included — 0°, 15°, 25°, and 40° tips for surface-specific pressure patterns

Commercial Applications: Construction, Agriculture, and Fleet Washing

Concrete contractors use the JCW-2403-0MHB to strip forms, clean mixers, and wash cured concrete spatter from equipment. Agricultural operations wash combines, tractors, and livestock facilities where a fuel-independent electric unit is not practical in the field. Fleet maintenance managers use it at staging areas for exterior washing of trailers, work trucks, and heavy equipment between jobs. Municipalities deploy this unit for graffiti removal and sidewalk maintenance where portability matters.

Compliance, Optional Accessories, and Documents

Not for sale in California — 49-state engine only. California requires a CARB-compliant engine variant. The optional CX-0005 Insulated Dual Lance (36-inch, factory order only) allows switching between high and low pressure chemical injection without changing nozzle tips. Includes insulated trigger gun for operator safety.

Spec Sheet | Manual
