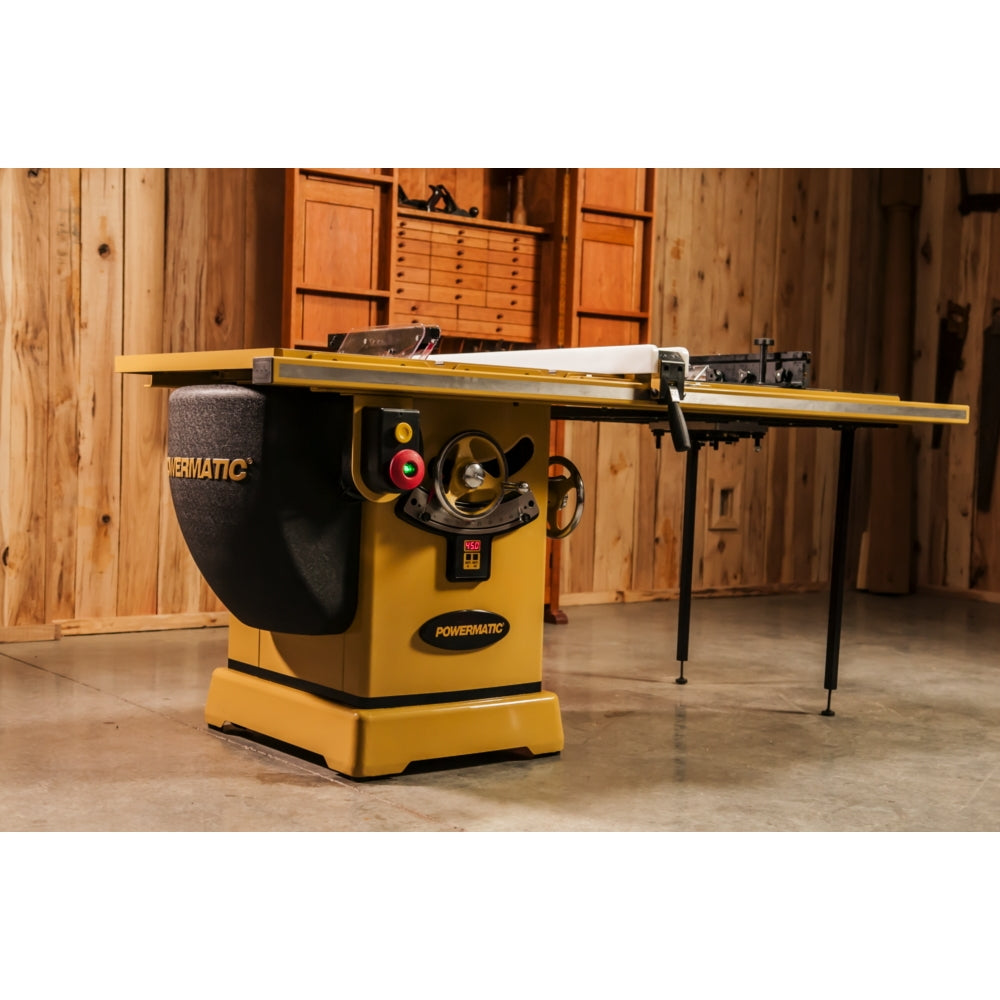

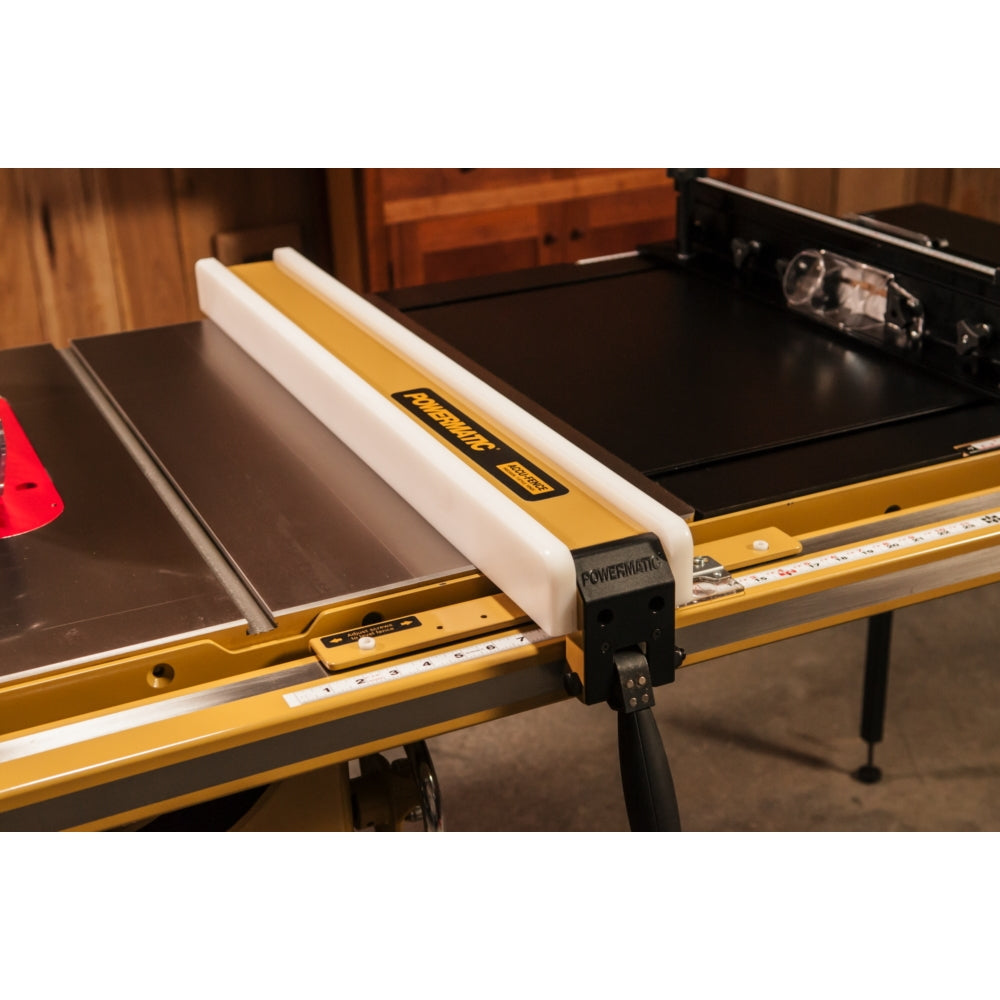

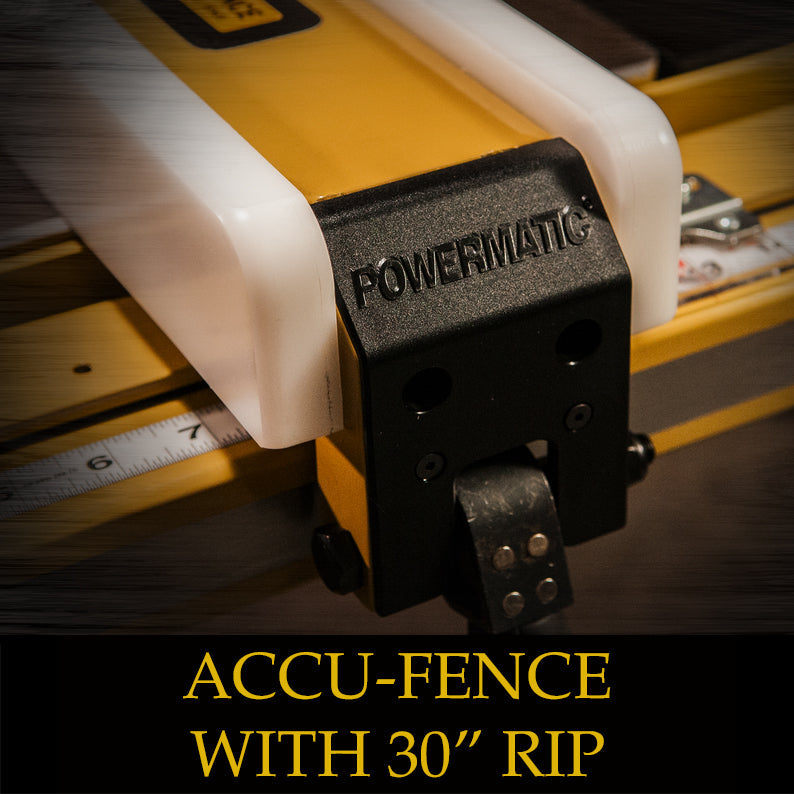

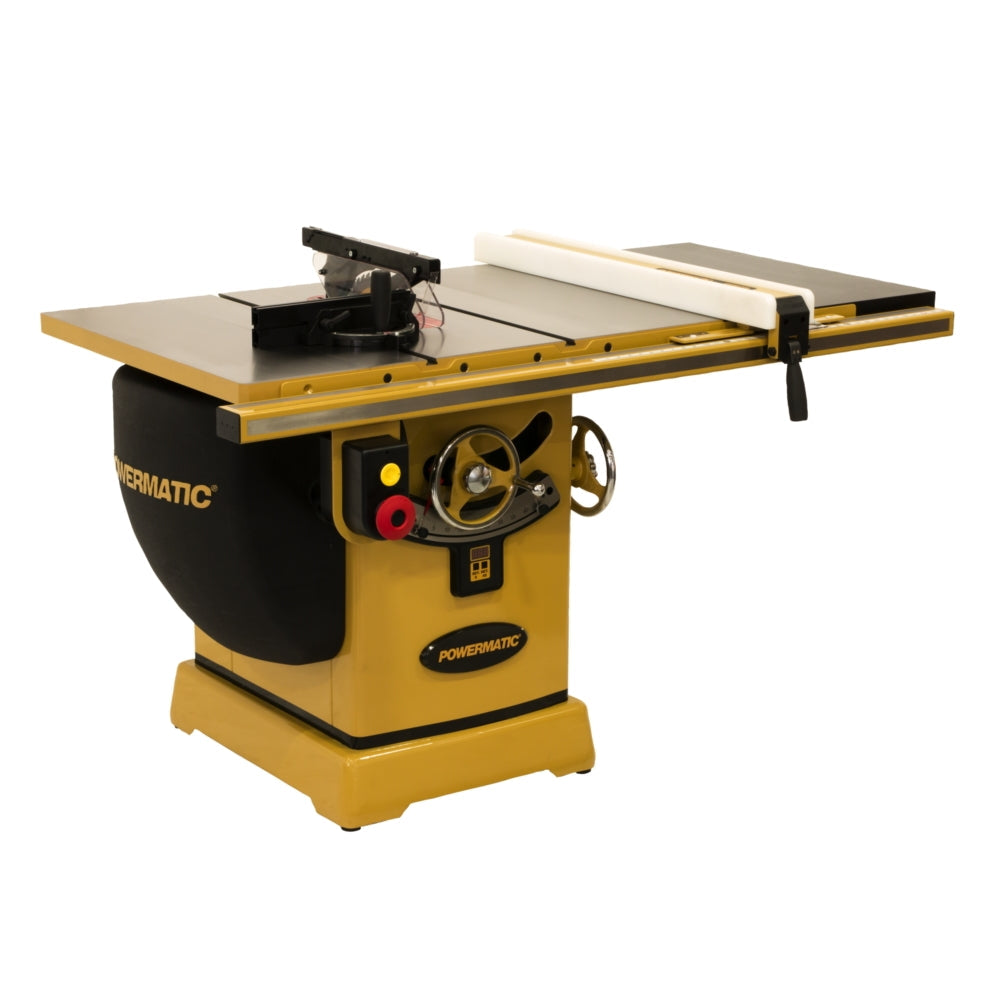

Powermatic PM2000 10 in. Tablesaw with 30 in. Accu-Fence System, 3HP, 1PH, 230V PM23130K

Powermatic PM2000 10 in. Tablesaw with 30 in. Accu-Fence System, 3HP, 1PH, 230V PM23130K

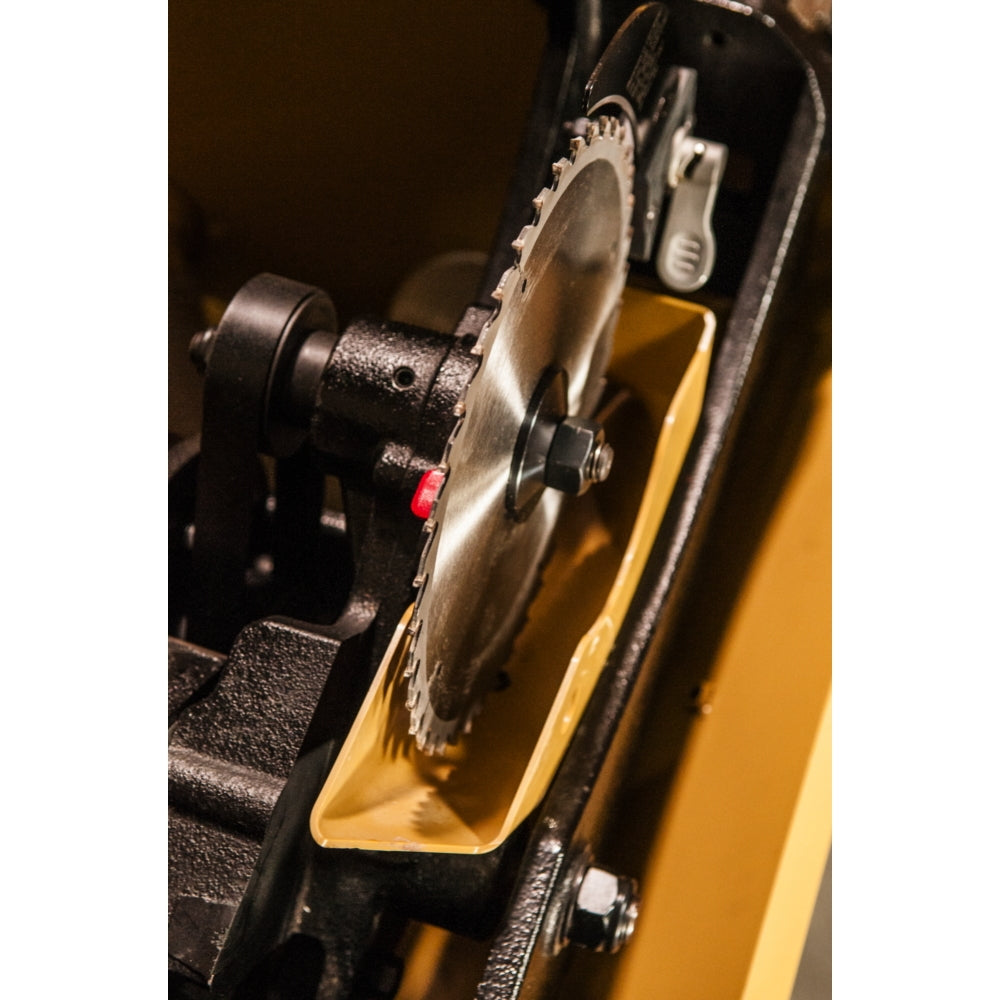

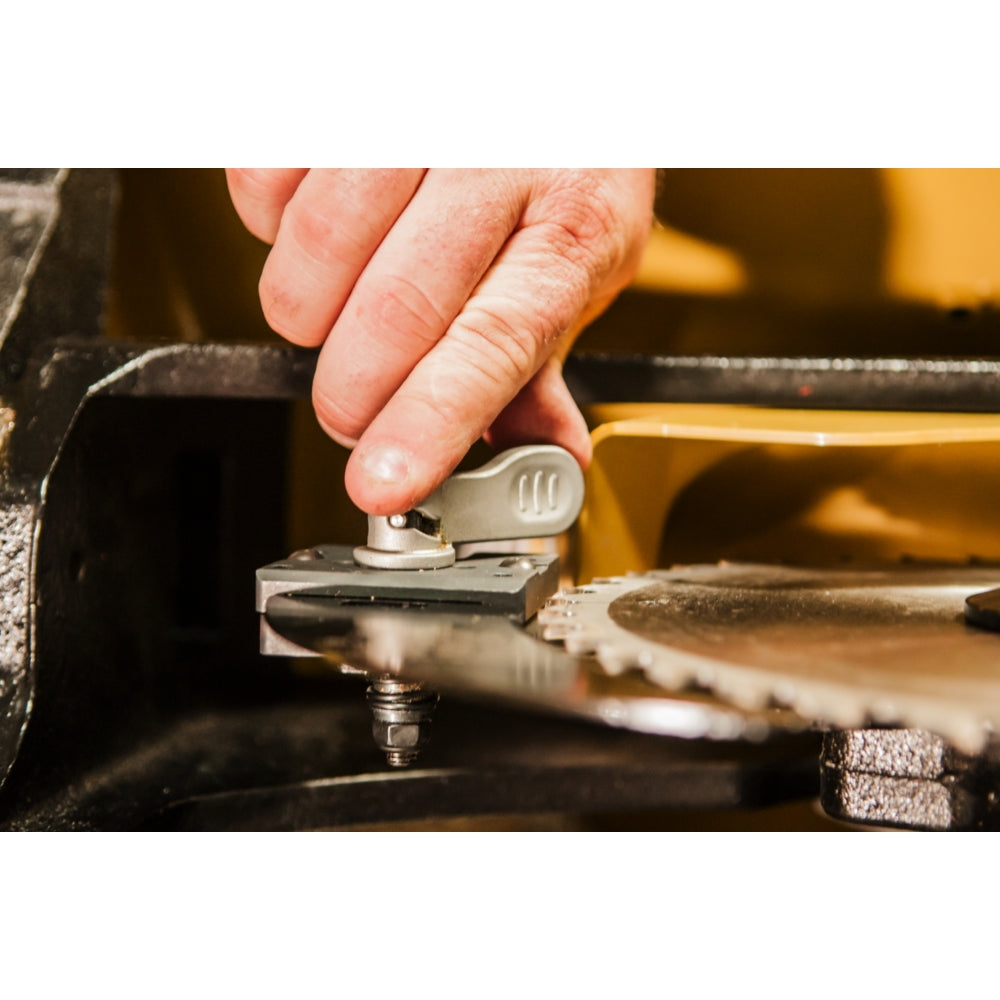

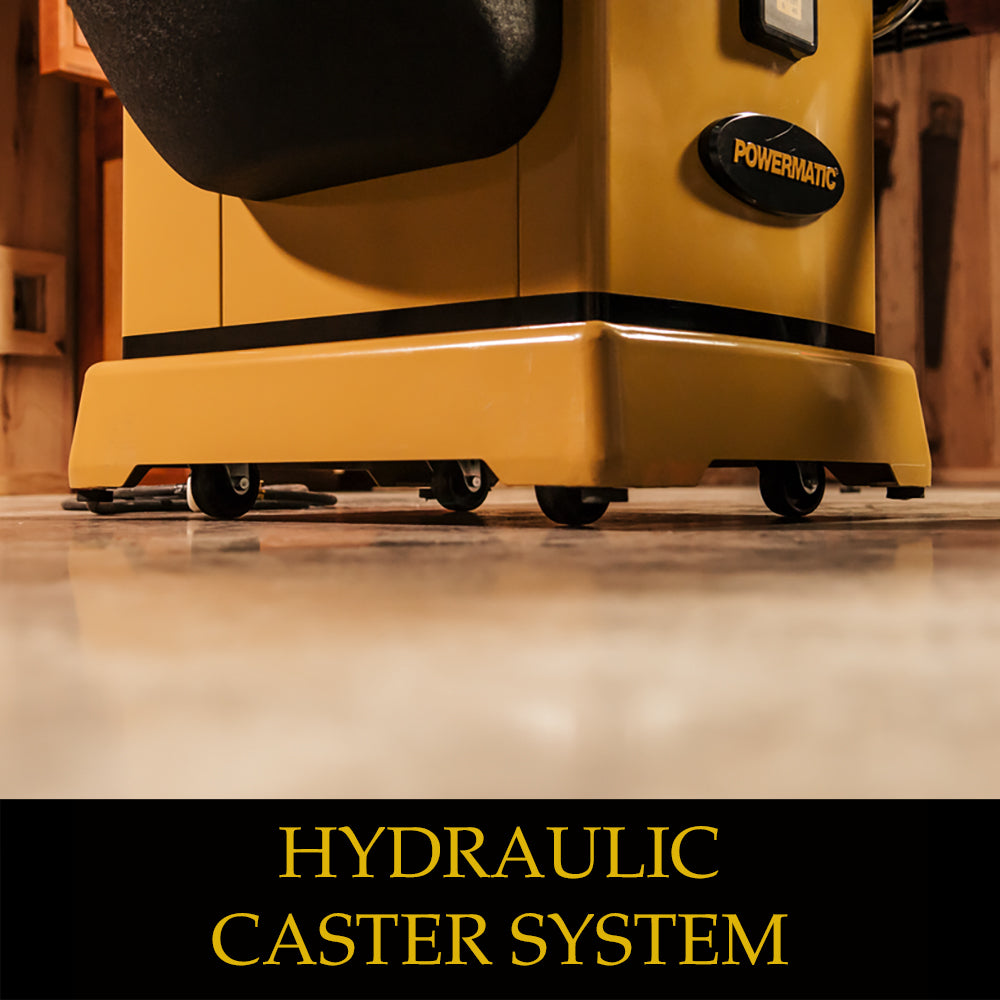

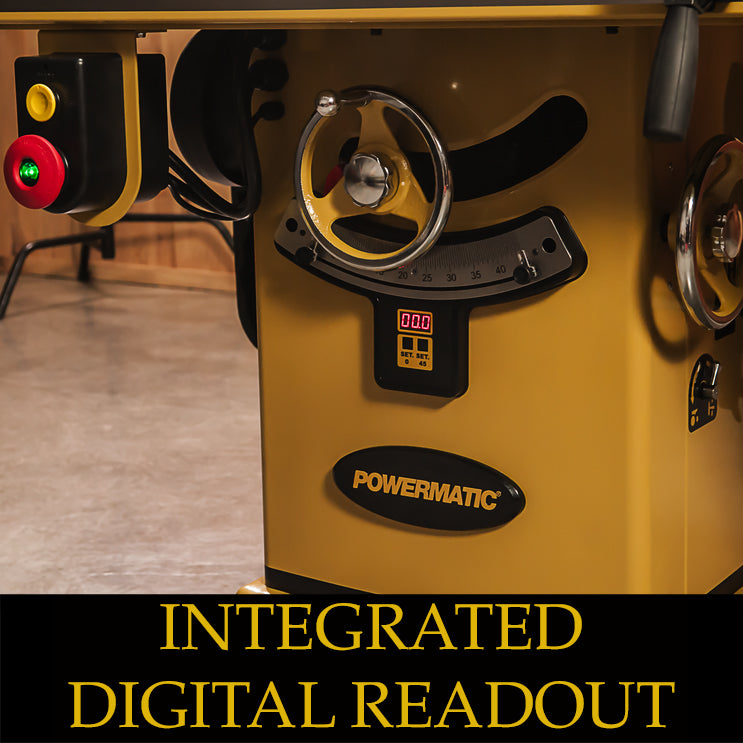

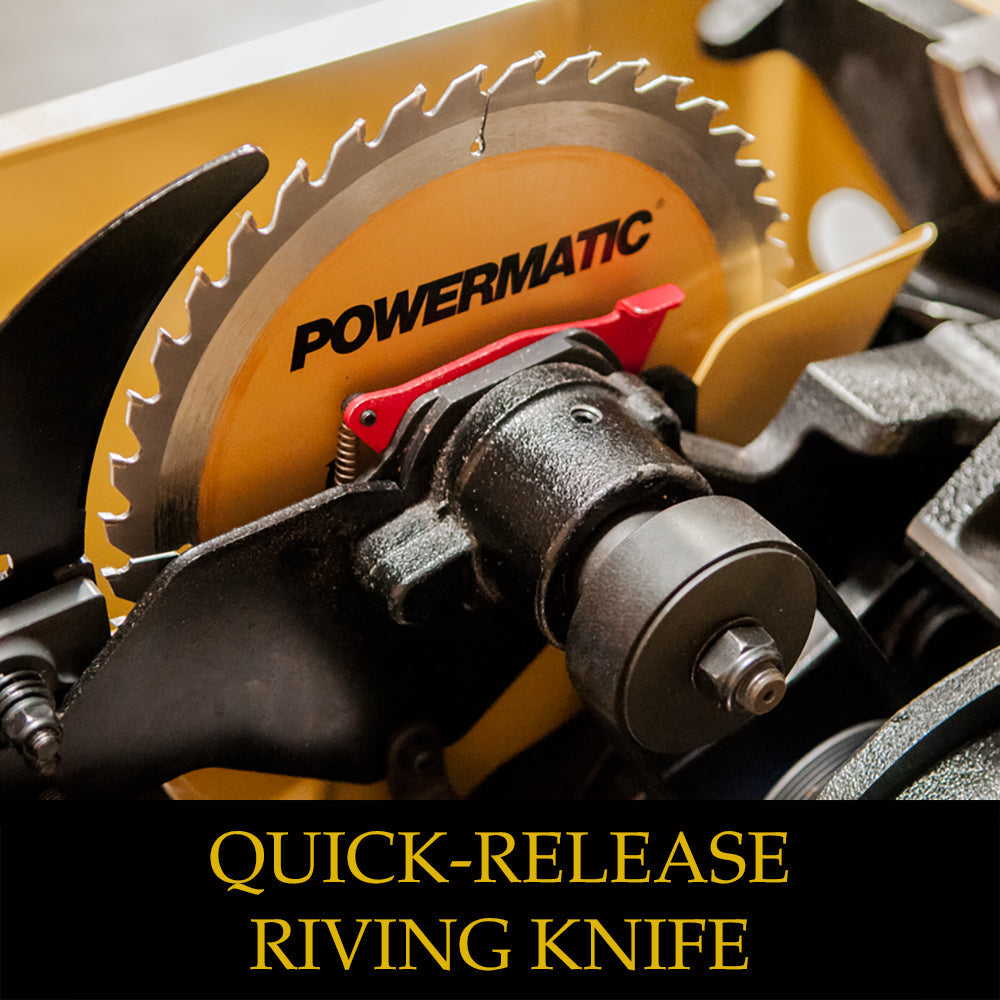

The award winning PM2000 table saw sets a new standard for innovation with an array of patented features and massive body design. The cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital read out as well as adjustable angle indicators for repetitive bevel cuts. The newly designed integrated retractable hydraulic caster system mobilizes your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple clean-up. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.

Features:

Specifications:

• Style (Type) Cabinet
• Blade Diameter (In.) 10
• Arbor Diameter (In.) 5/8
• Arbor Speed (RPM) 4500
• Maximum Depth of Cut at 90 Degrees (In.) 3-1/8
• Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
• Maximum Diameter of Dado (In.) 8
• Maximum Width of Dado (In.) 13/16
• Table in Front of Saw Blade at Maximum Depth of Cut (In.) 11-1/4
• Maximum Rip Right of Blade (In.) 30
• Maximum Rip Left of Blade (In.) 13-1/2
• Table Type Cast Iron
• Table Height from Floor (In.) 35
• Table Size (In.) 22 x 30-1/2
• Table Size with Extensions (In.) 42 x 30-1/2
• Table T-Slot (In.) 3/4 x 3/8
• Dust Collection Minimum CFM Required (CFM) 400
• Dust Port Outside Diameter (In.) 4

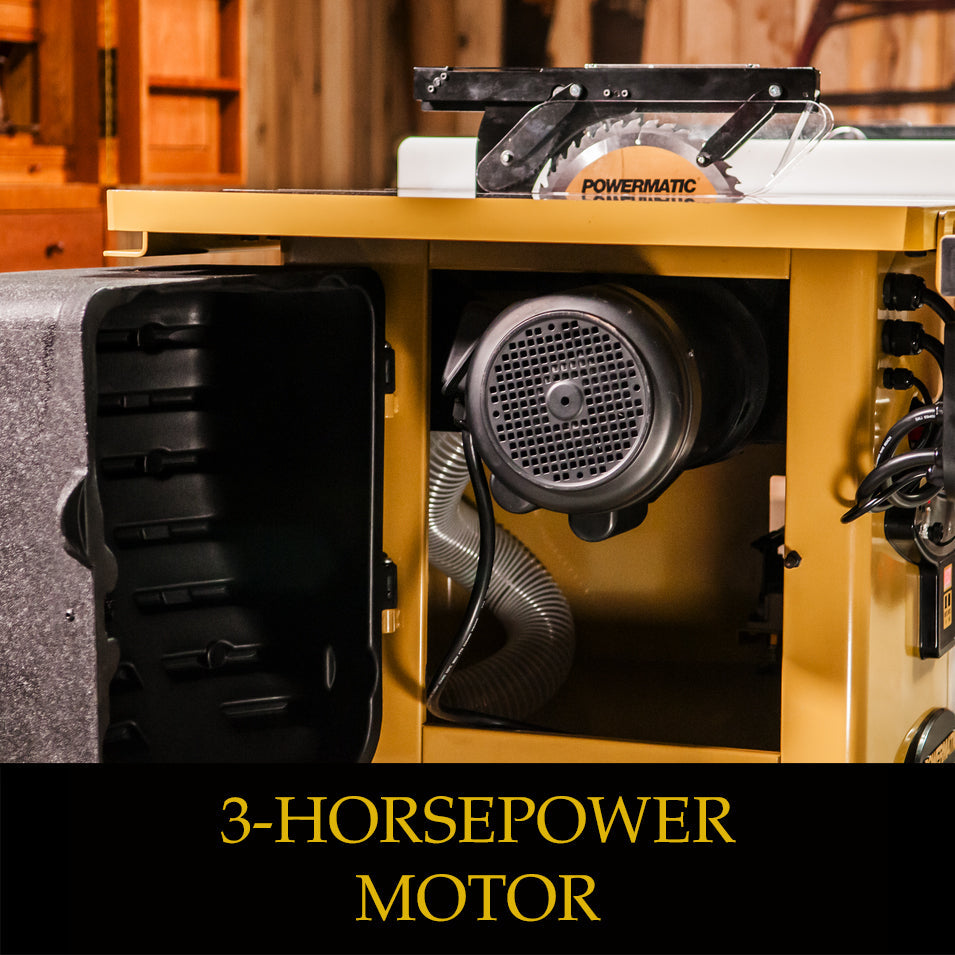

• Motor Power (HP) 3
• Motor Phase 1
• Motor Voltage (V.) 230
• Motor Current (Amps) 14.5
• Recommended Circuit Size (Amps.) 20

Warranty and Service:

Walter Meier (Manufacturing) Inc. warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier (Manufacturing) Inc. Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.

Powermatic 5-year Warranty:

POWERMATIC products carry a limited warranty which varies in duration based upon the product. This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage. The warranty covers only the initial purchaser of the product.
