Powermatic 16" Parallelogram Helical Cutterhead Jointer with ArmorGlide 7.5hp, 3PH, 460V

Powermatic 16" Parallelogram Helical Cutterhead Jointer with ArmorGlide 7.5hp, 3PH, 460V

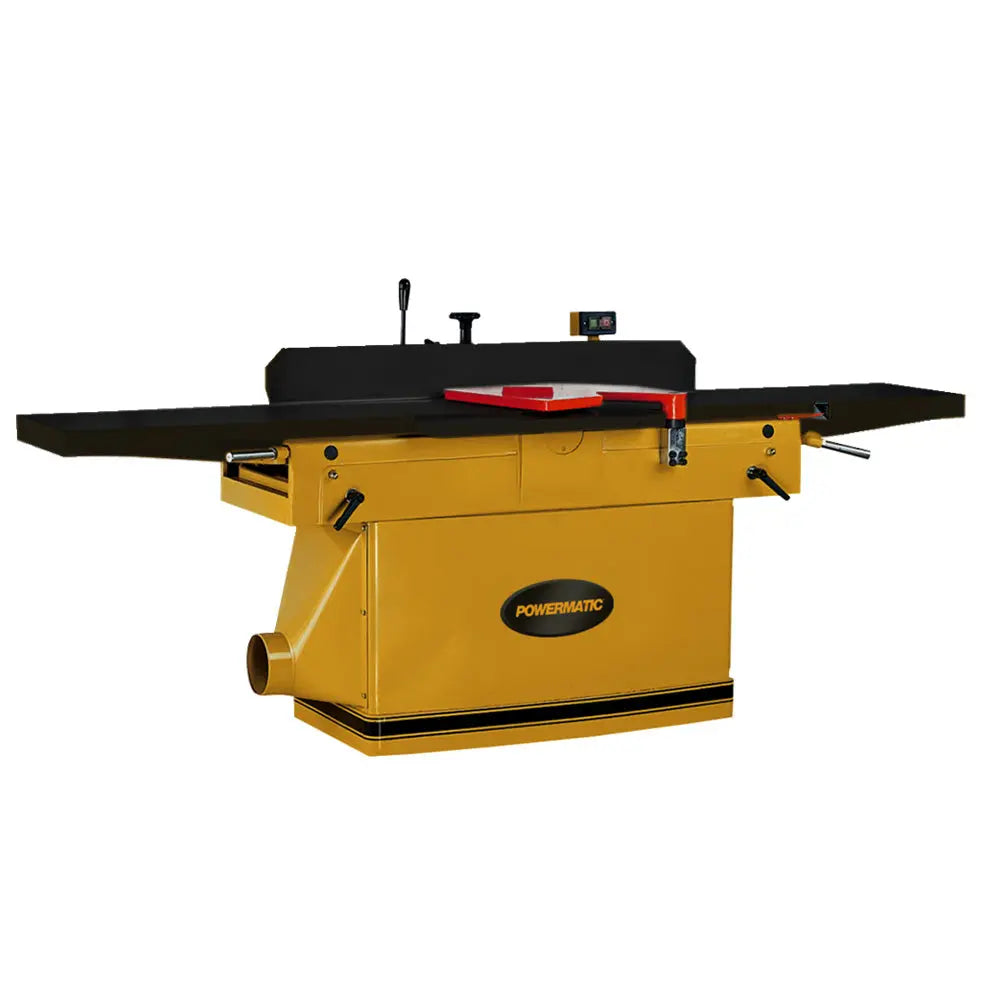

Now featuring ArmorGlide Technology, the Powermatic PJ1696T 16-Inch Jointer offers big capacity and performance in a machine loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles.

The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty.

The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing, and never needs adjustments. The heavy-duty 7.5hp motor delivers all the power you need for even the biggest jobs.

ArmorGlide Technology pros:

• Enhanced visibility: The dark surface reduces glare, so you can see where you're cutting better.
• Rust resistant: Ditch the steel wool and never worry about rust again.
• Low friction: Coated tables require 50% less force, so you get more control.
• Maintenance-free: Get rid of the waxes and messy cleaning supplies, so you can do more of what you love.
• Durable coating: ArmorGlide tables can withstand 250,000 passes without showing signs of wear.

Features

• ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
• Cast iron fence bevel controls include positive stops at 45 degrees and 90 degrees
• Full size rabbeting table supports large workpieces for rabbets up to 3/4-inch deep
• Helical cutterhead features 58 two-sided knife inserts that reduce noise, eliminate adjustments, and speed knife changes
• Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
• Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
• Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play

Specs

Cuts per minute: 20,800
Cutterhead dia.: 4"
Cutterhead speed: 5,200 RPM
Cutting capacity (W x D): 16" x 3/4"
Infeed table length: 47-1/2"
Motor power: 7.5hp
Motor voltage: 460V
# of knives: 58
Dust port outside dia.: 6"
Min. dust collection: 800 CFM
Table height from floor: 37-1/2"
