• Description

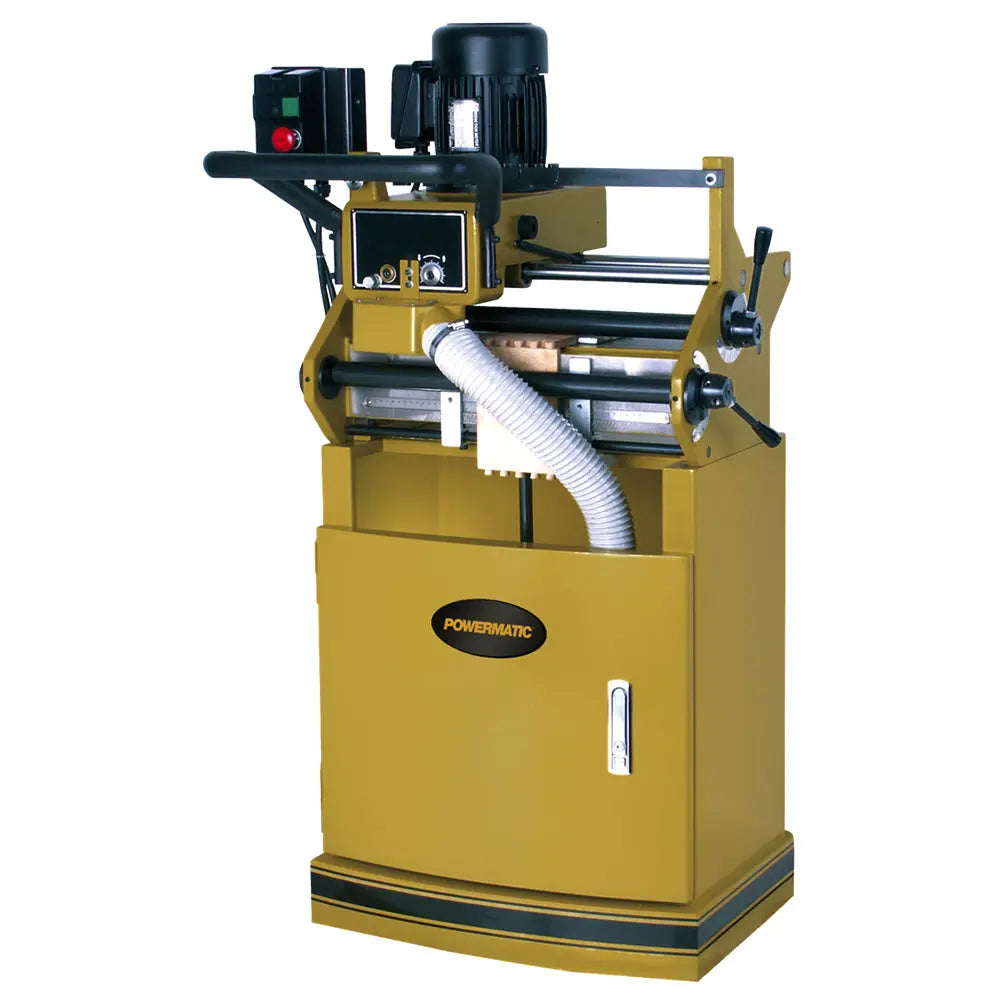

Powermatic's DT45 single spindle dovetailer gives quality to the most popular joints in drawer construction. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. Use the DT45 to produce cleanly cut, quality dovetails and enhance your products.

The DT45 is complete with a 1hp 1-phase motor, manual eccentric clamping, magnetic starter, carbide-tipped cutter, and a four-sided template that produces dovetails on 1", 1-9/16", 2", and 3-1/8" centerlines. The use of different dovetail centerlines allows you to create a unique, custom appearance.

Features
  • Four separate dovetail centerlines
  • Eccentric spindle collet for resharpened cutters
  • 3/16" to 3/4" cutter height
  • Manual eccentric clamping
  • Extra-large soft grip handle provides control and comfort
  • The precision carriage bearings are sealed on both ends to eliminate dust buildup
  • Visual stylus and template aids in guiding the carriage
  • Spring-loaded carriage makes for smooth, effortless dovetail cutting

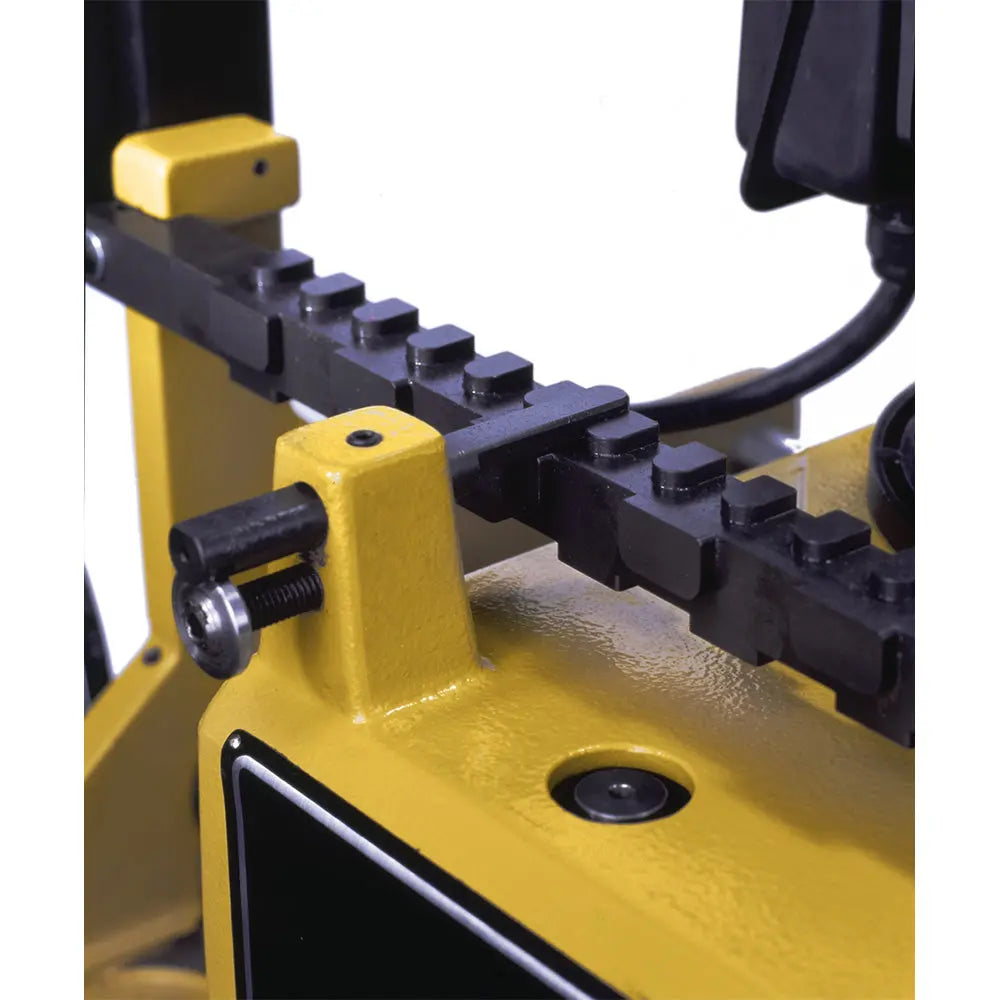

  • Material stops provide convenient positioning of the workpiece
  • Cast iron and steel construction for added stability and durability
Specs

Motor: 1hp
Electrical: 1-phase, 230V
Spindle speed: 18,500 RPM
Max. workpiece size (L x W): 31" x 11"
Min. workpiece size (L x W): 7-7/8" x 2-3/8"
Max. dovetail height: 3/4"
Min. dovetail height: 3/16"
Max. front thickness: 1-3/4"
Min. front thickness: 9/32"
Table height: 35"
Overall dimensions (L x W x H): 33" x 33" x 61"
Dust collection port: 2-1/2"
Dust collection required: 500 CFM
Shipping weight: 447 lbs.
