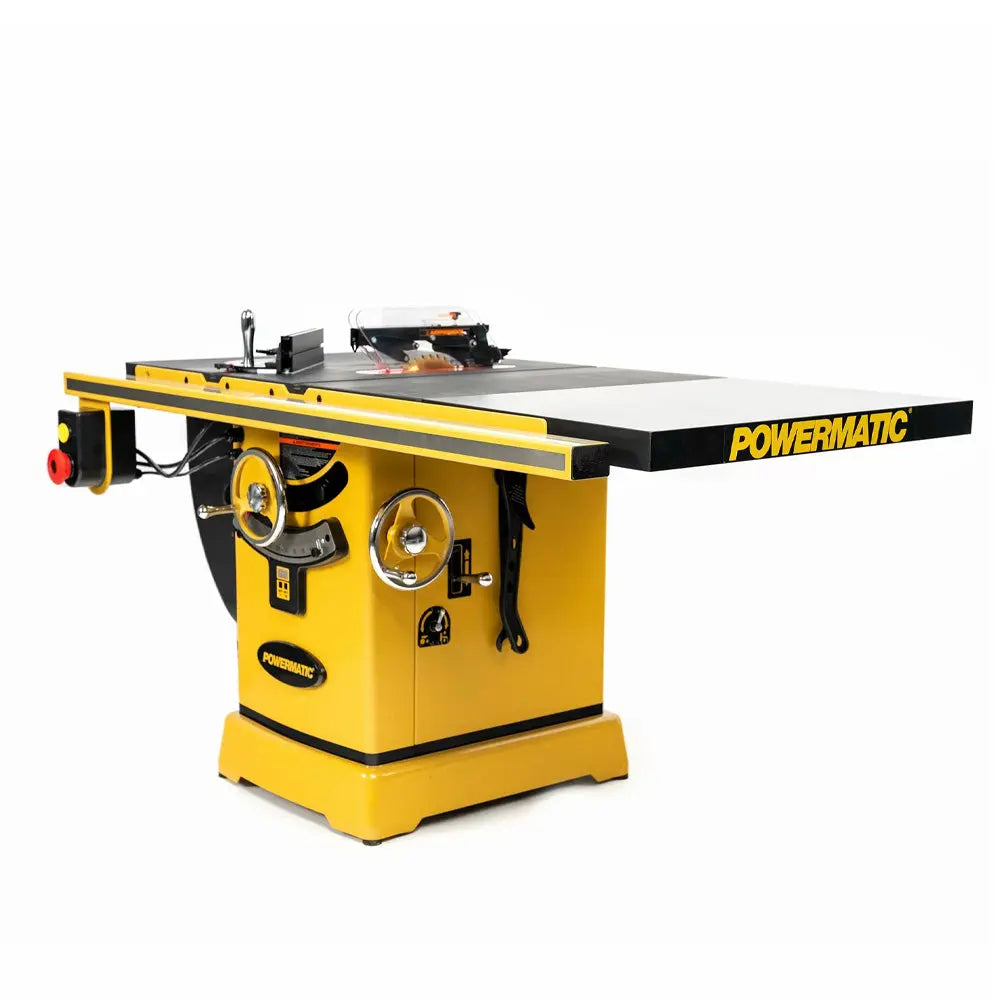

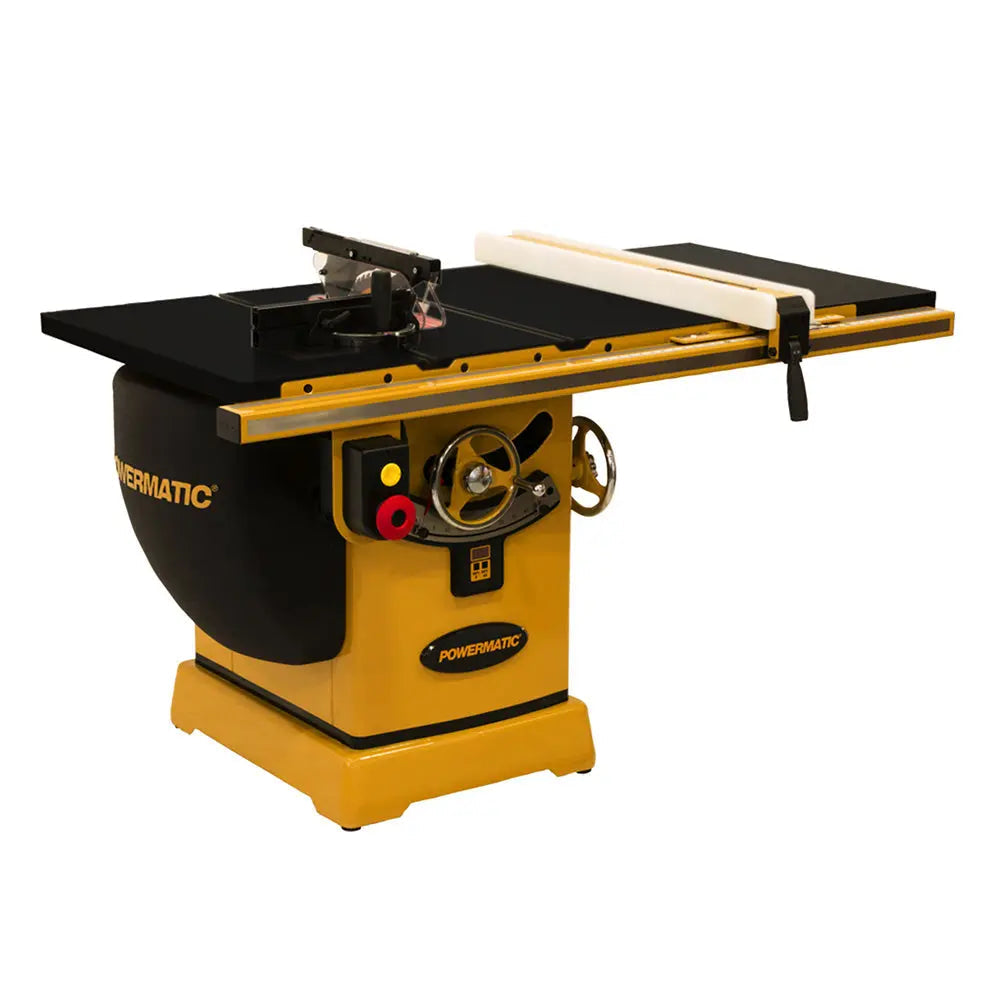

Powermatic PM2000T 10" Table Saw with ArmorGlide & Extension Table 5hp, 1PH, 230V (30" Rip)

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000T Table Saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide coated cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback.

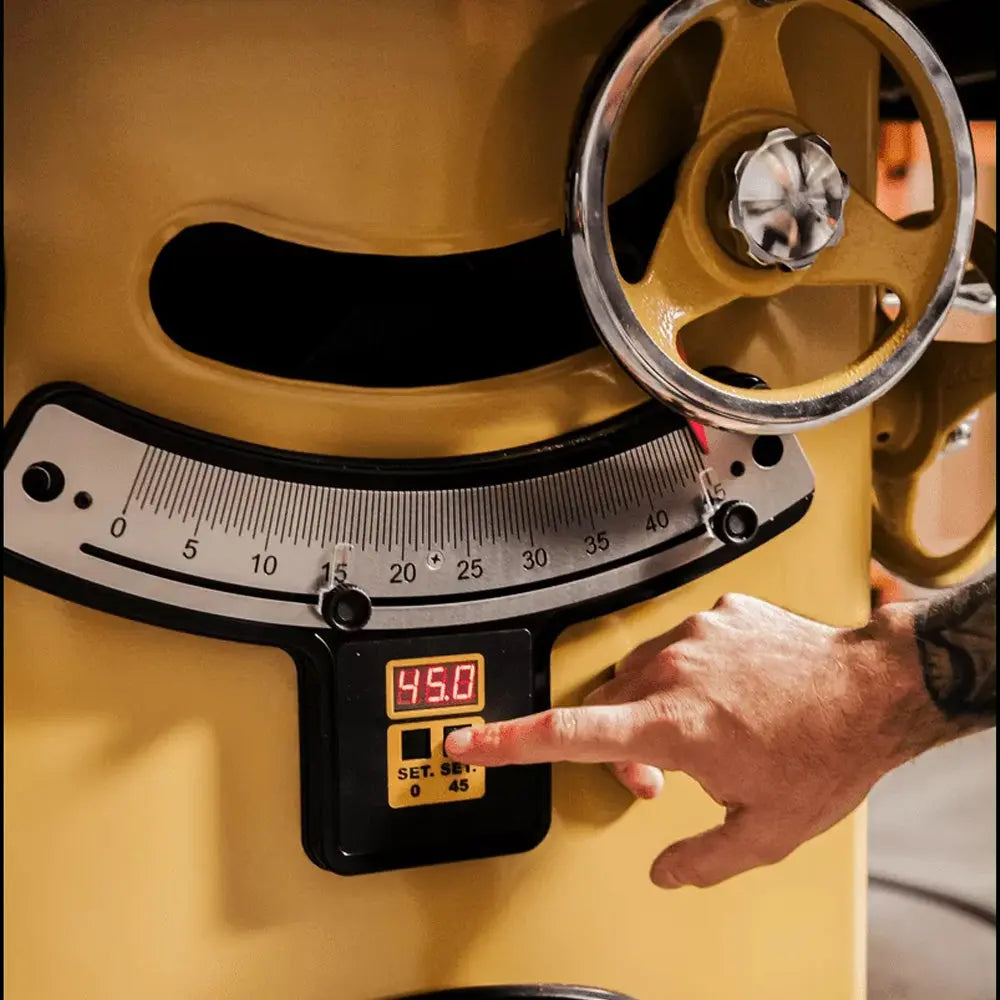

The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts. The newly designed integrated retractable hydraulic caster system lifts your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade.

Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple cleanup. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.

ArmorGlide Technology pros:

• Enhanced visibility: The dark surface reduces glare, so you can see where you're cutting better.
• Rust resistant: Ditch the steel wool and never worry about rust again.
• Low friction: Coated tables require 50% less force, so you get more control.
• Maintenance-free: Get rid of the waxes and messy cleaning supplies, so you can do more of what you love.
• Durable coating: ArmorGlide tables can withstand 250,000 passes without showing signs of wear.

Features

• ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control

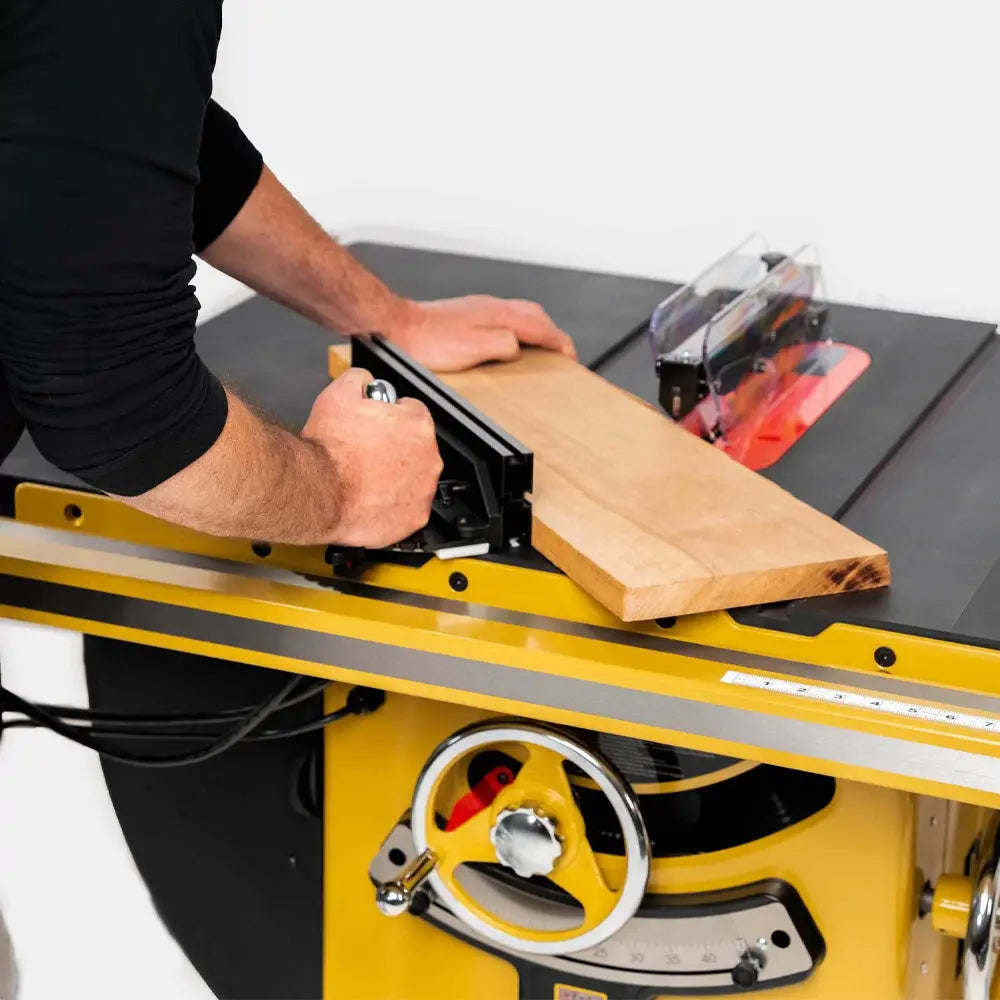

• Miter gauge is built with robust materials with many positive stops for the most commonly used angles
• Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
• Arbor lock for quick and easy blade changes
• Integrated digital read out ensures precise bevel cuts
• Improved dust collection port provides convenient access to the inside of the saw cabinet for simple cleanup
• Hydraulic caster system allows for ease of movement around the shop
• Matching beveled edge between table and extension wings
• One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
• Precision-ground, high-luster cast iron tabletops feature front and rear edge bevels

Specs

Arbor dia.: 5/8"
Arbor speed: 4,500 RPM
Blade dia.: 10"
Dust collection: 400 CFM
Dust port outside dia.: 4"
Max. depth of cut: 2-1/8" or 3-1/8"
Max. dia. of dado: 8"
Max. rip left of blade: 13-1/2"
Max. rip right of blade: 30"
Max. width of dado: 13/16"
Motor power: 5hp
Motor amps: 4.8
Motor voltage: 230V
Rec. circuit size: 30 Amps
Table height from floor: 35"
Table size: 30-1/2" x 22"
Overall dimensions: 66-3/4" x 39-1/8" x 40-3/8"
Net weight: 405 lbs.

Video
