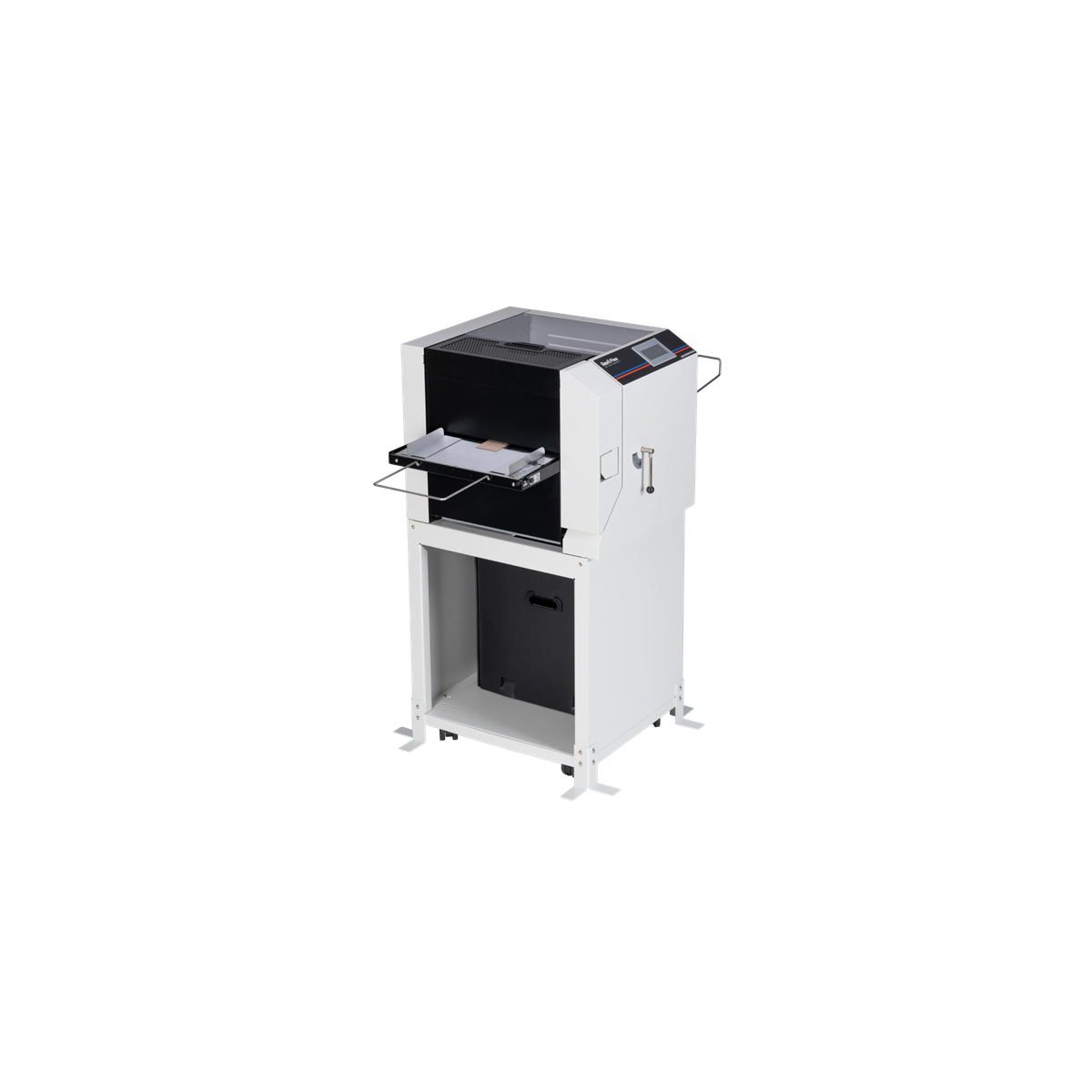

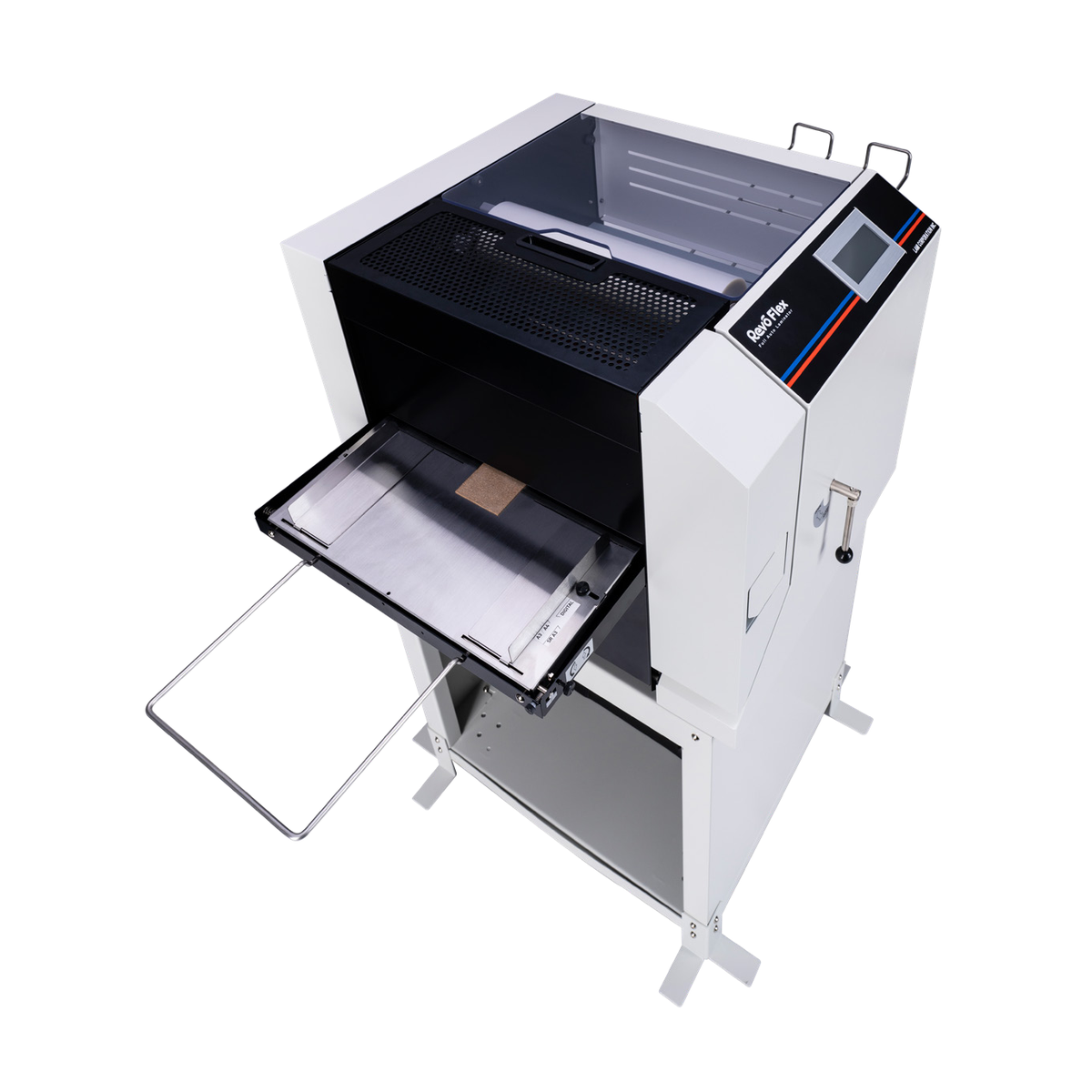

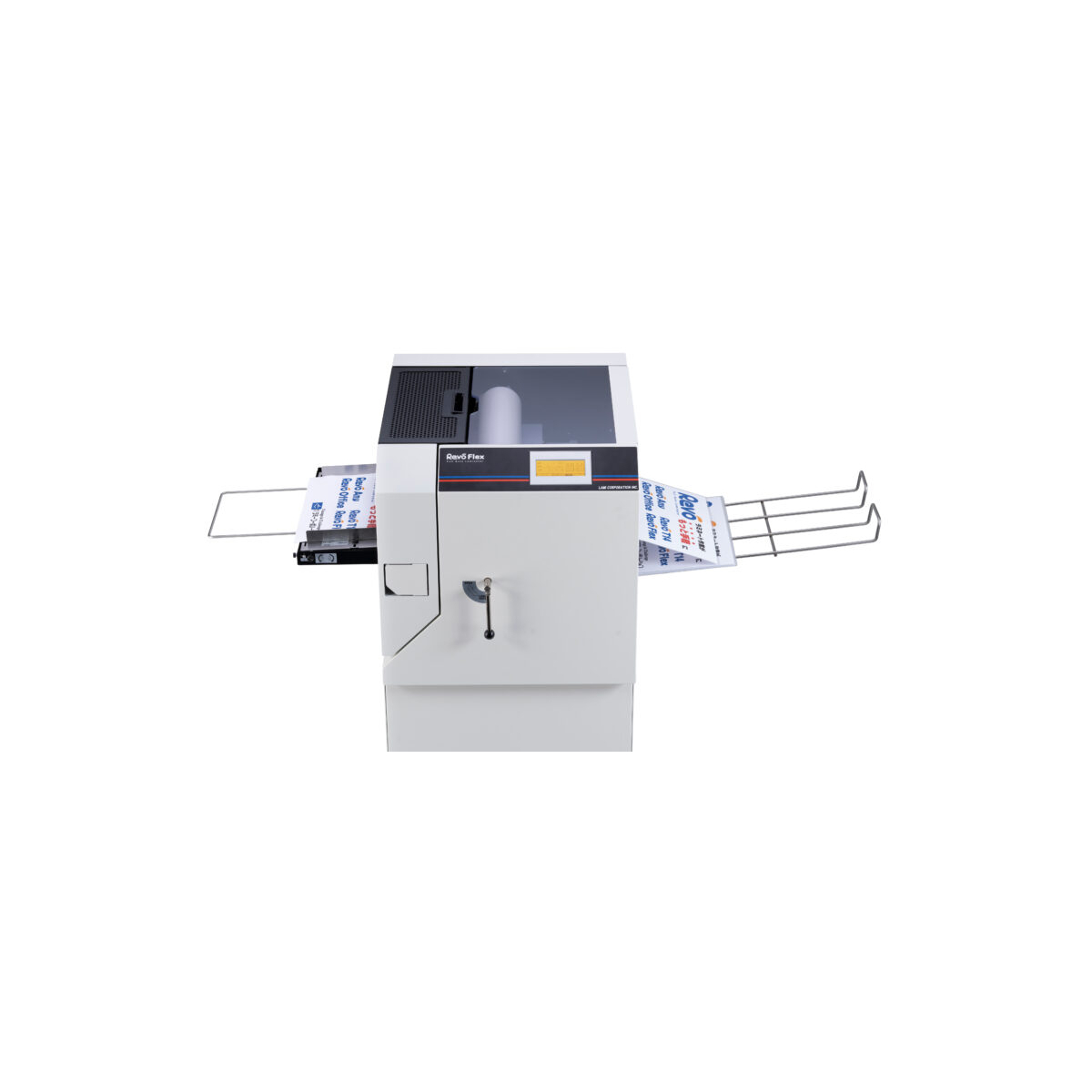

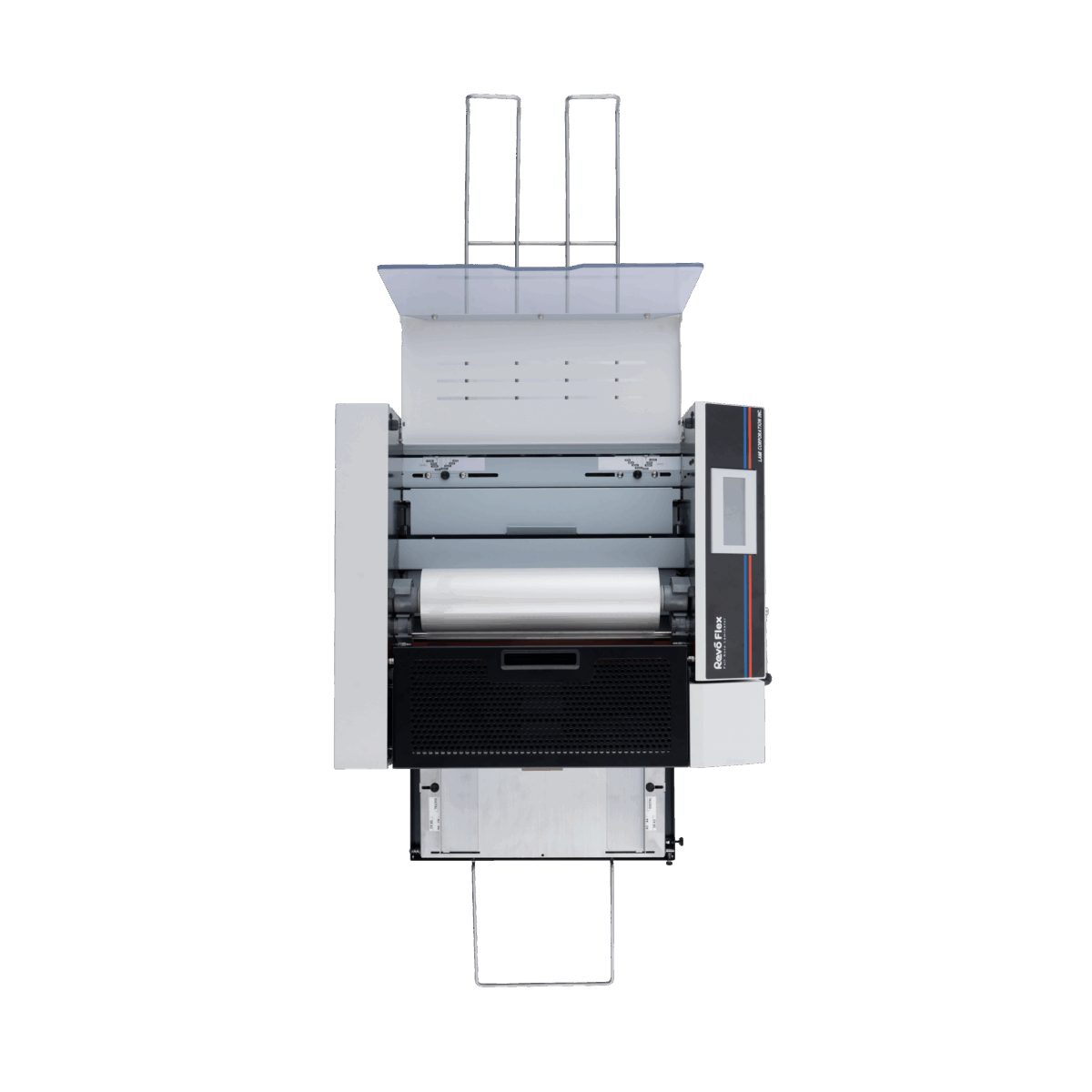

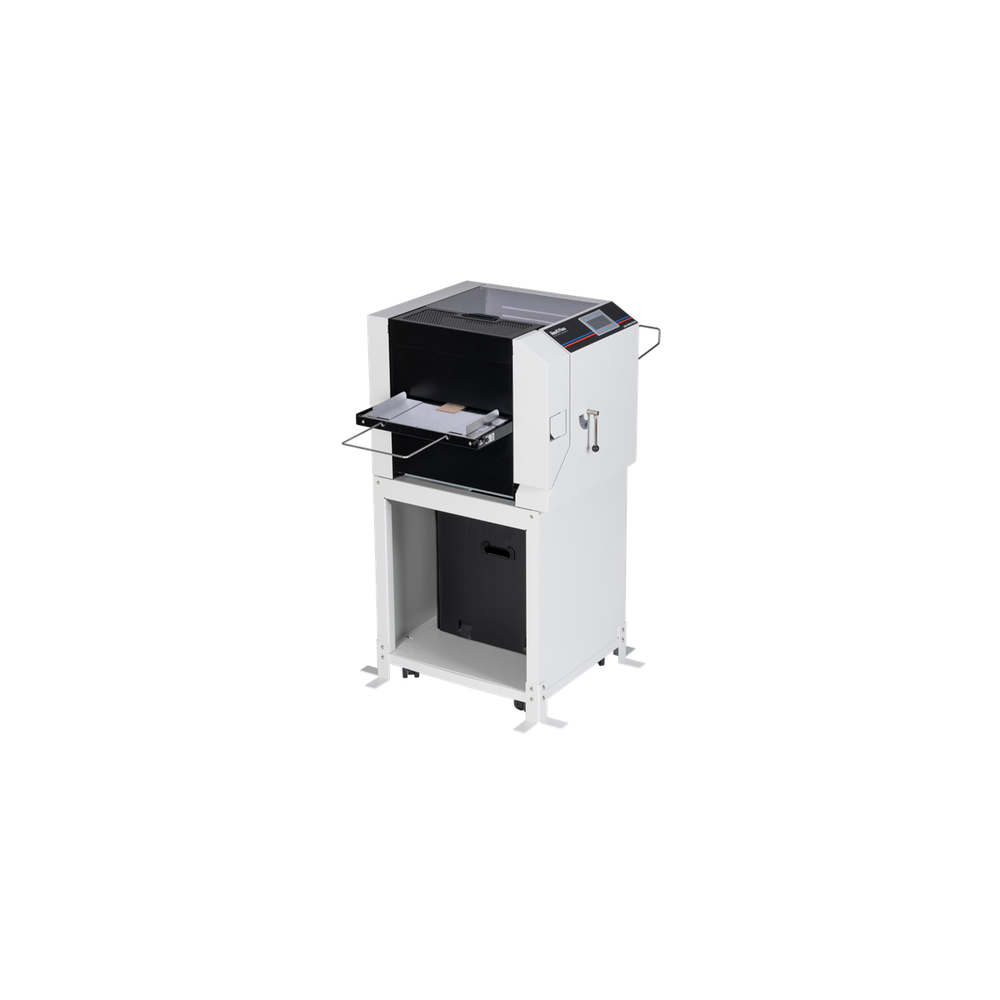

Revo Flex — 4-Side Trim Fully Automatic Laminator

The Revo Flex is the next generation of automatic lamination. Feeding, laminating, cutting and trimming all four sides happen in one pass, from a single press of the start button — no second machine, no separate trimming step, no operator standing by.

The trim positions are fully adjustable, so you can produce a true flush cut or leave a deliberate encapsulation border, with or without margin. A no-waste run mode eliminates sheet trim entirely when you do not need it. Adjustable speed and resist roller pressure let it hold quality across a wide range of paper weights and film thicknesses, and the touch panel keeps the adjustments in one place.

Specifications

• Max sheet width: 13"
• Max film width: 12.6"
• Speed: up to 420 sheets/hour (27.5–78 inches per minute, adjustable)
• Feeder capacity: 200 sheets
• Film thickness: 1.5–10 mil
• Trimming: internal 4-side, with or without margin
• Power: 110v
• Shipping dimensions: 51" x 24" x 42.5"
• Weight: 154 lbs (ships LTL)

Good to know

Stand is included. Film is not — the Revo Flex uses Lami Corporation film only, in 12.6" width. See Revo Flex Lamination Film for compatible rolls.
