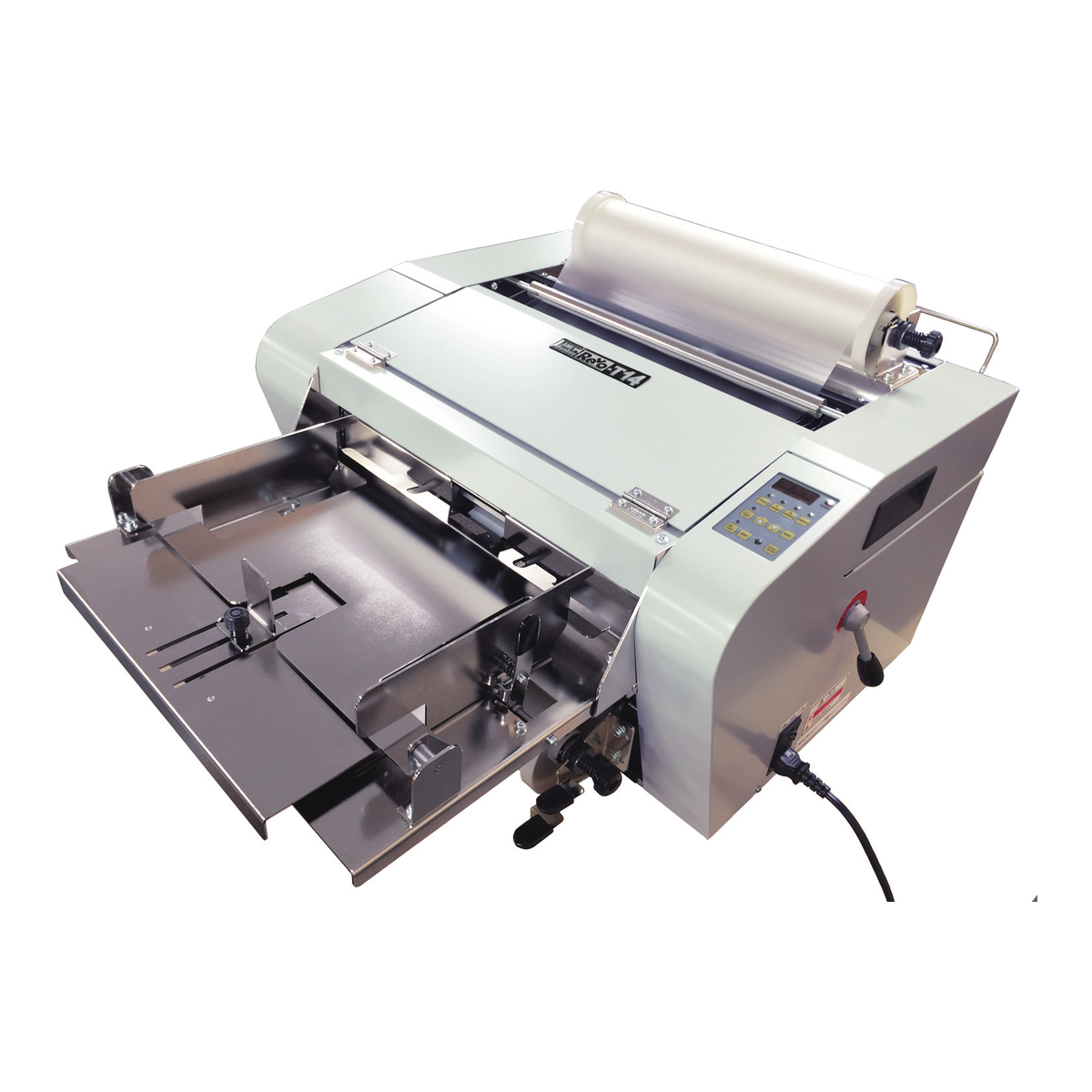

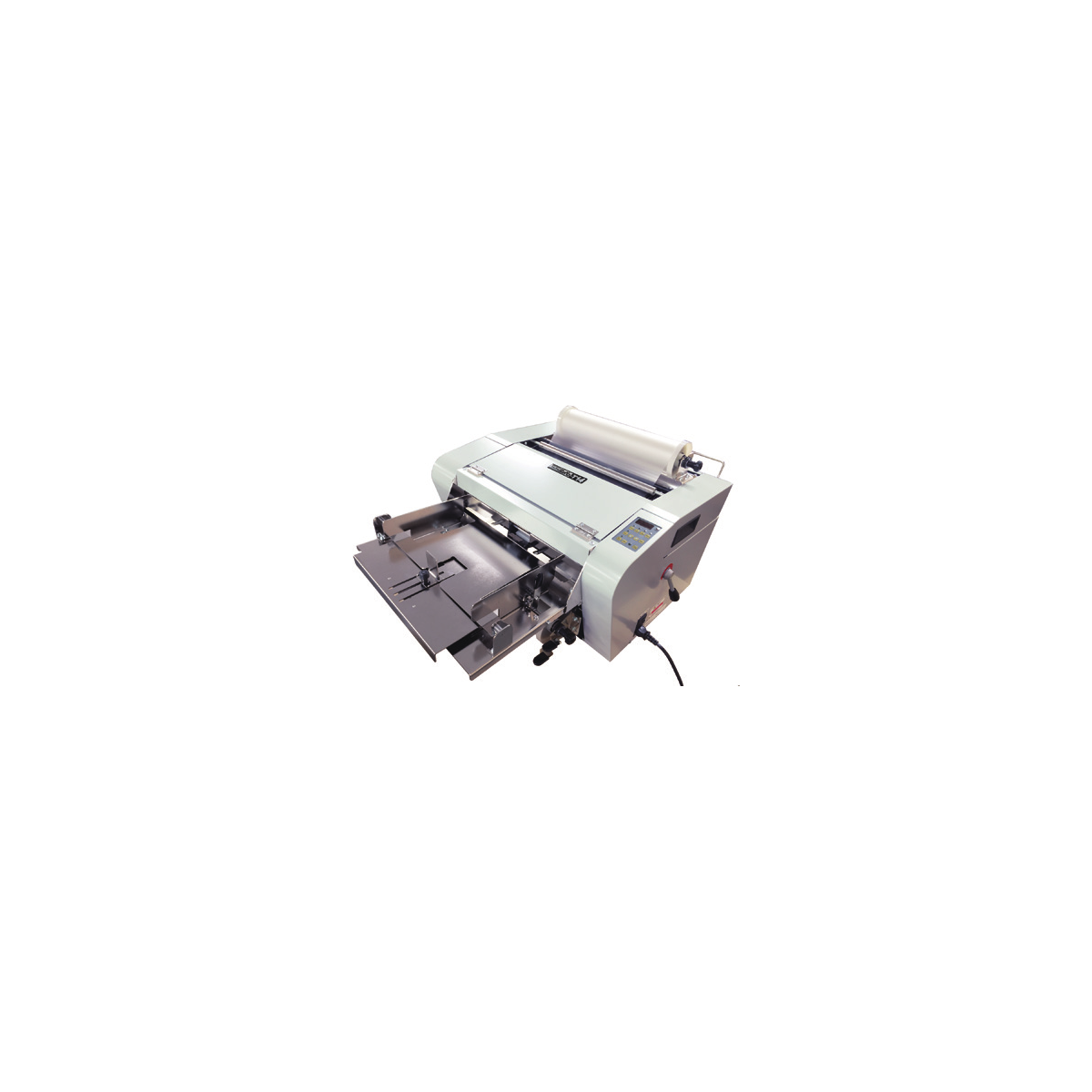

Revo T14 — High-Volume Automatic Encapsulation Laminator

The Revo T14 is a fully automatic encapsulation laminator built for volume. Load up to 300 sheets, press start, and it feeds, laminates and cuts unattended at 425 sheets per hour on letter stock.

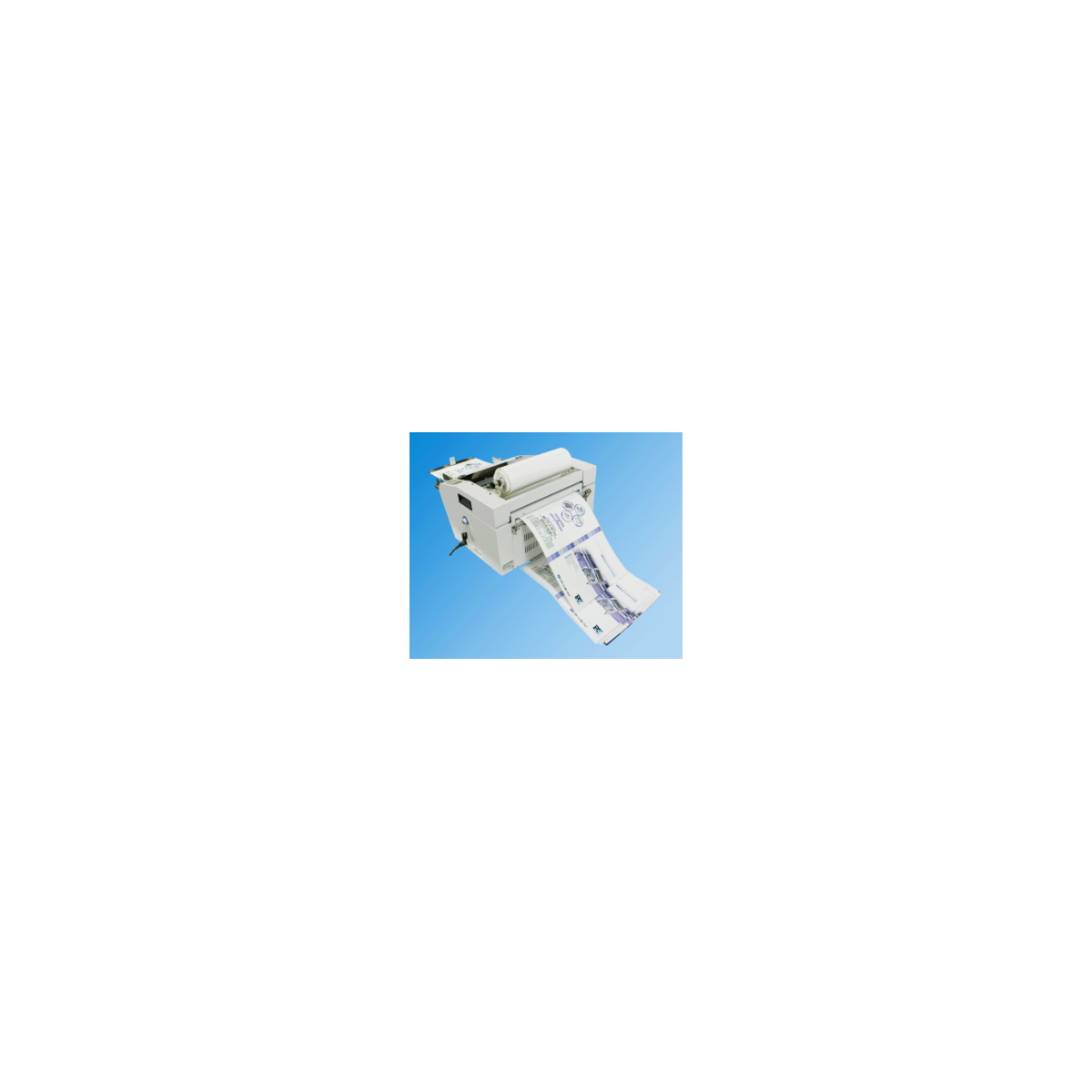

A six-roller system — four heated, two steel — holds quality consistent across thin and thick paper alike, and two cooling fans keep encapsulation clear rather than cloudy. Warm-up is five minutes. Because it runs roll film rather than pouches, it will also produce a continuous length sheet, which makes it the machine of choice for encapsulated banners and oversized custom work.

Specifications

• Max sheet width: 13"
• Max film width: 12.3"
• Speed: up to 425 sheets/hour at 8.5" x 11", 216 sheets/hour at 11" x 17" (63 inches per minute)

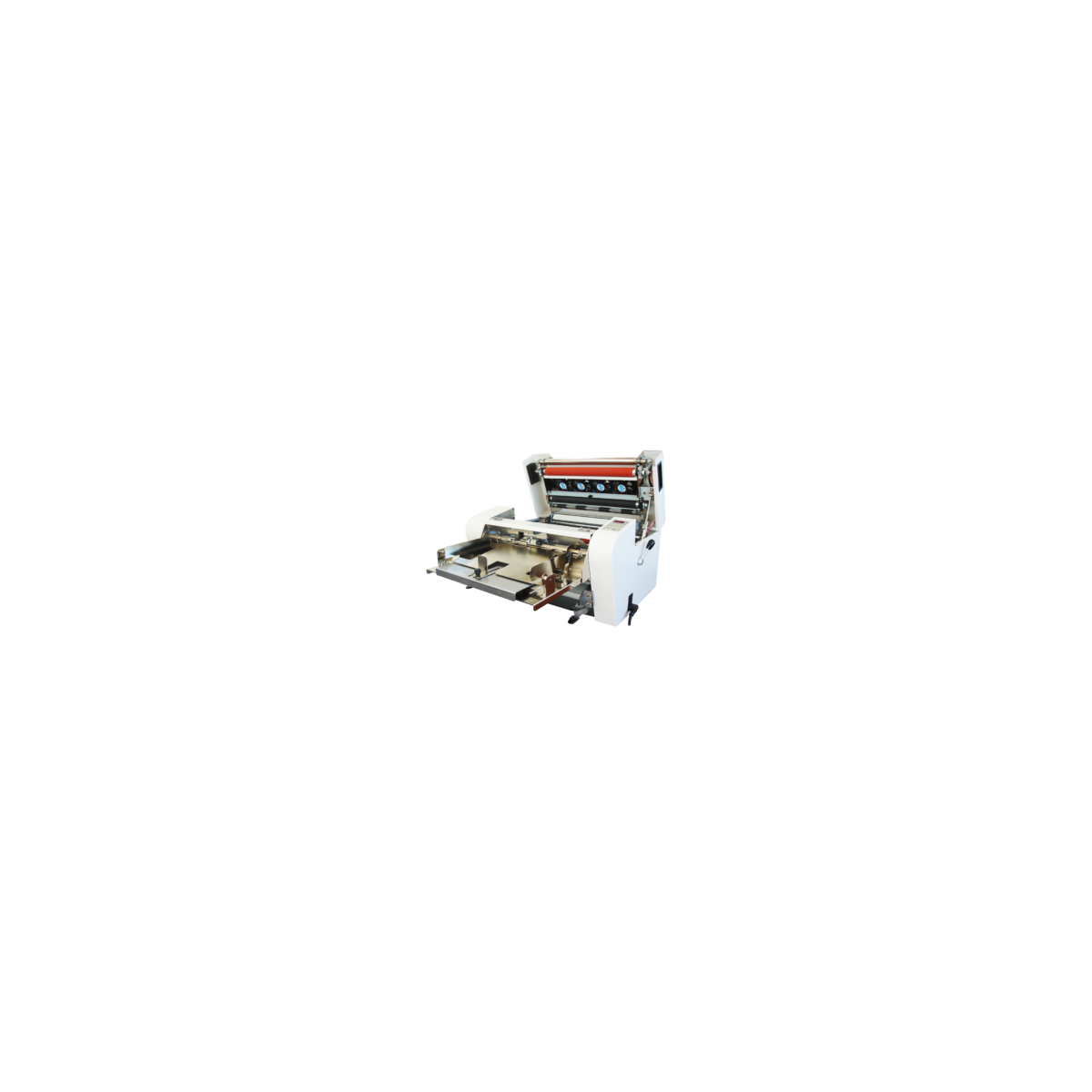

• Rollers: six — four heated, two steel
• Film thickness: 2–5 mil
• Temperature: adjustable, digital LCD
• Power: 110v
• Shipping dimensions: 48" x 44" x 36"
• Weight: 205 lbs including stand (ships LTL)

Tip from the shop floor

Run 12" film on 12" x 18" digital stock to gang multiple images on one sheet, then flush-cut trim them apart.

Good to know

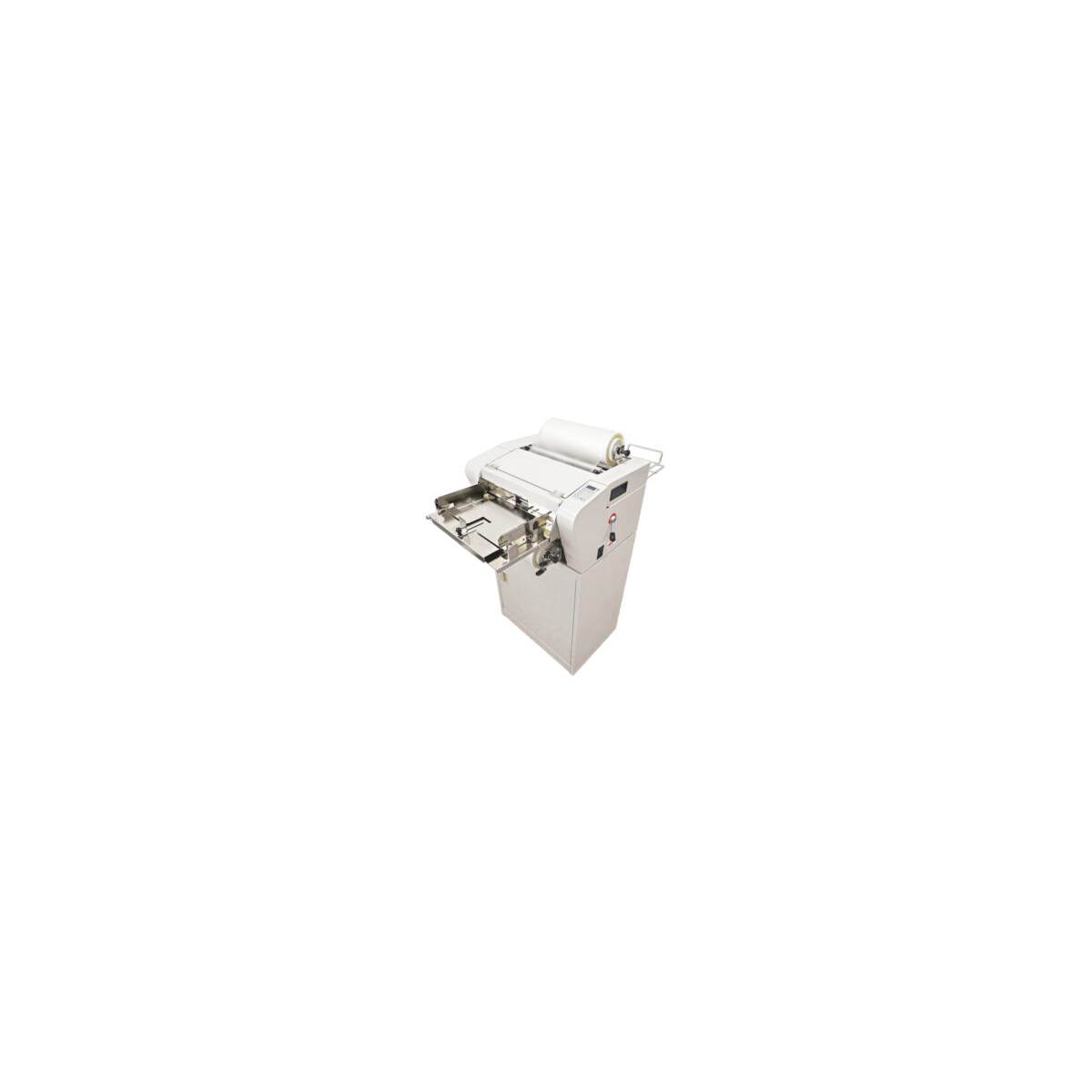

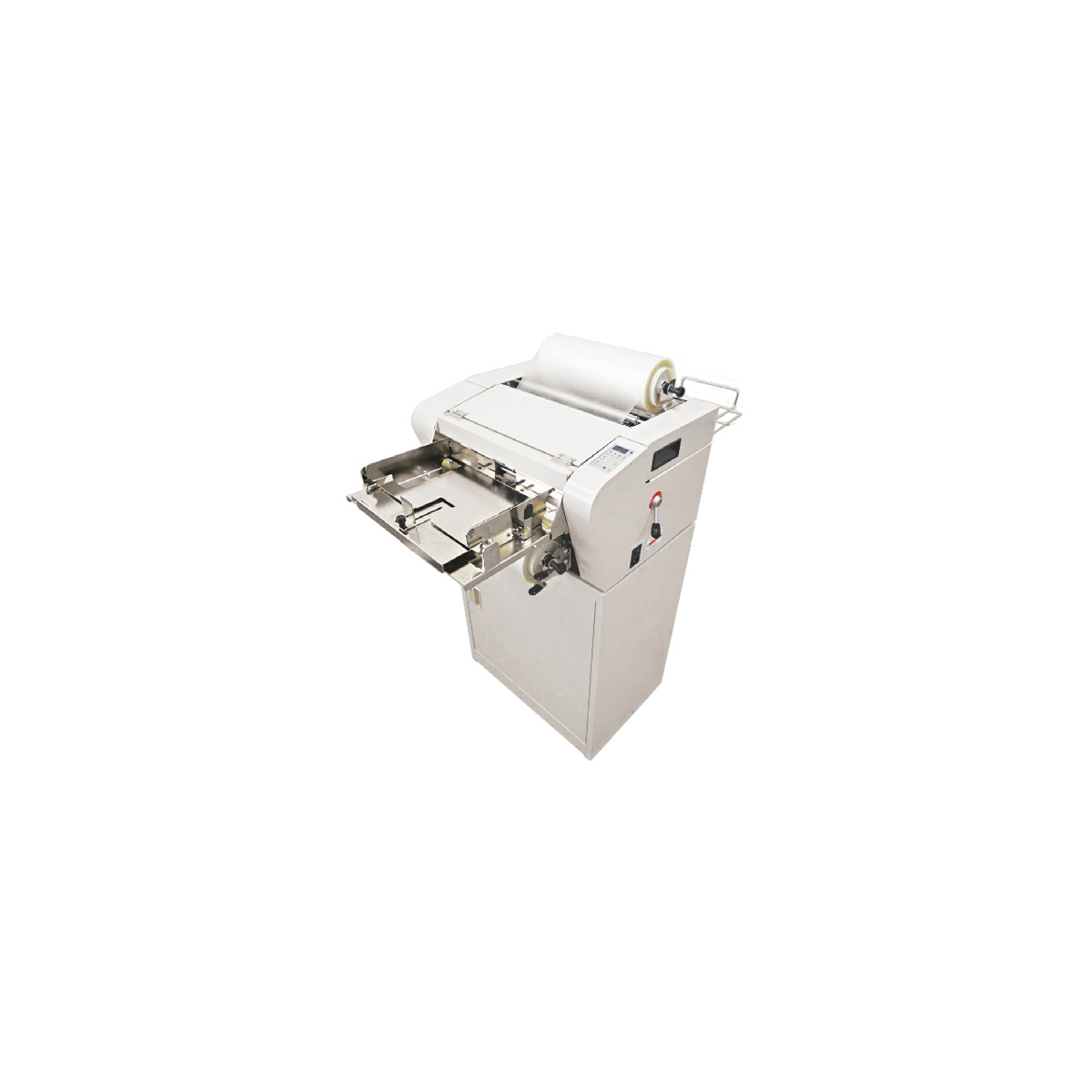

Film is not included. Uses Lami Corporation film only. Optional cabinet/stand and spare roll mandrels are available separately.
