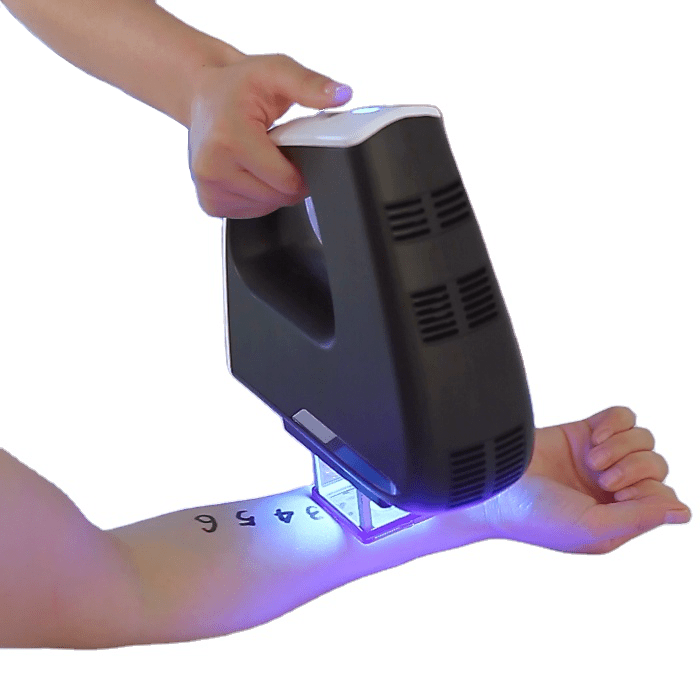

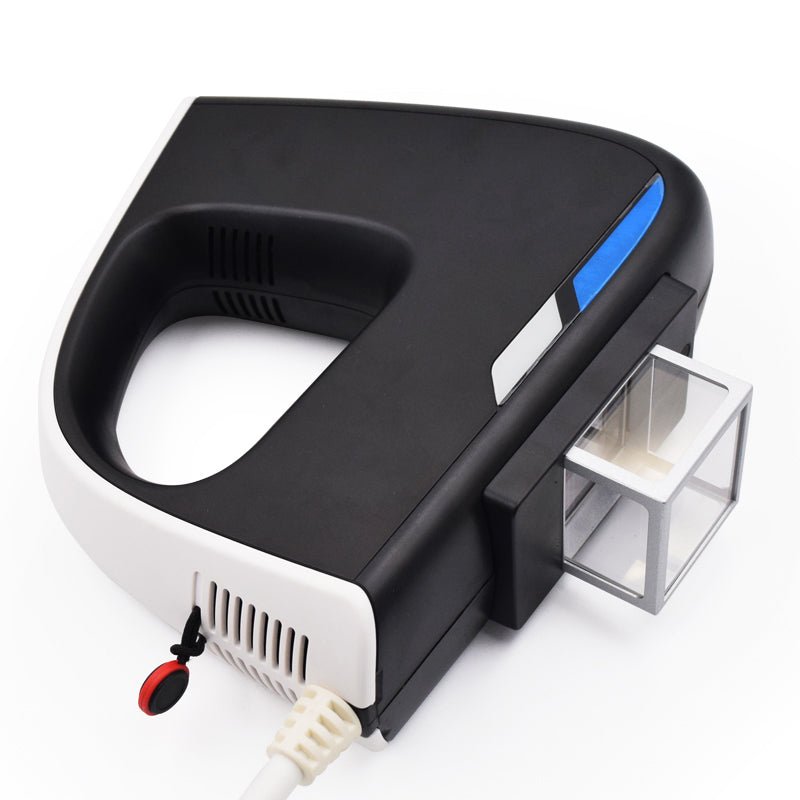

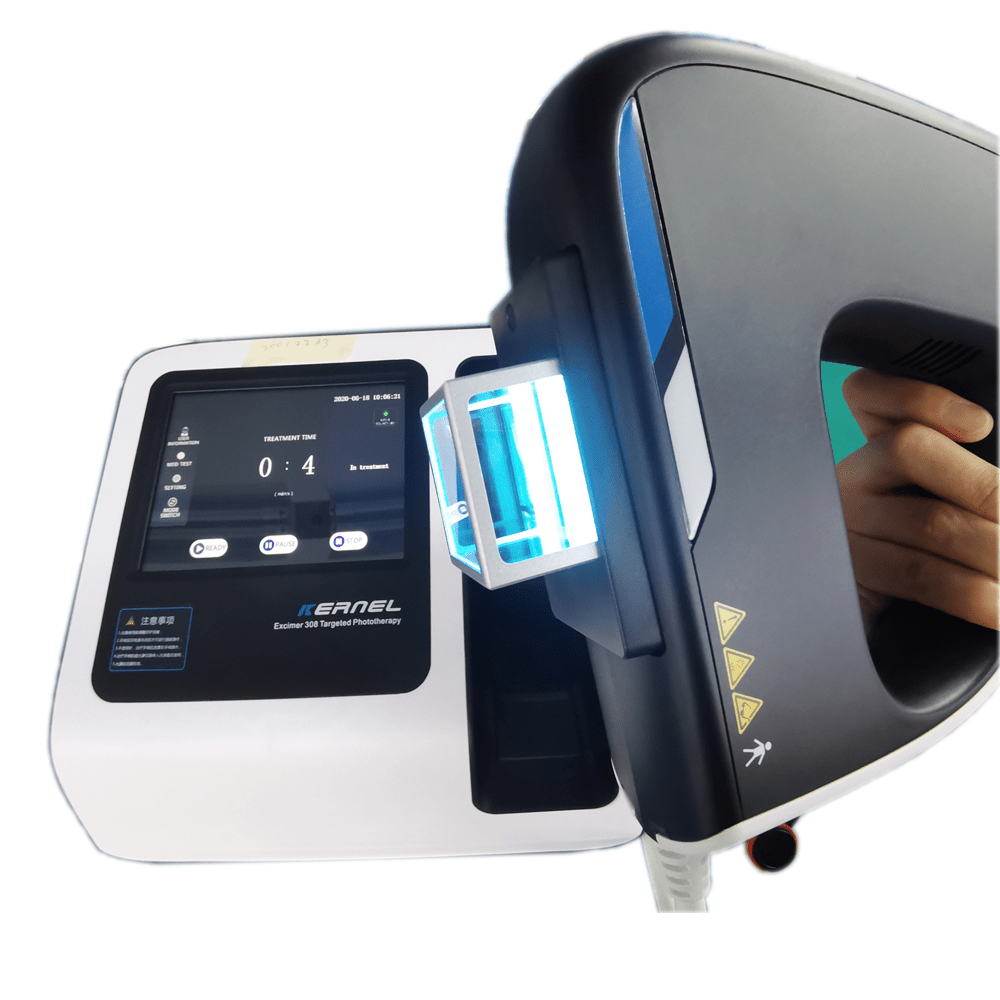

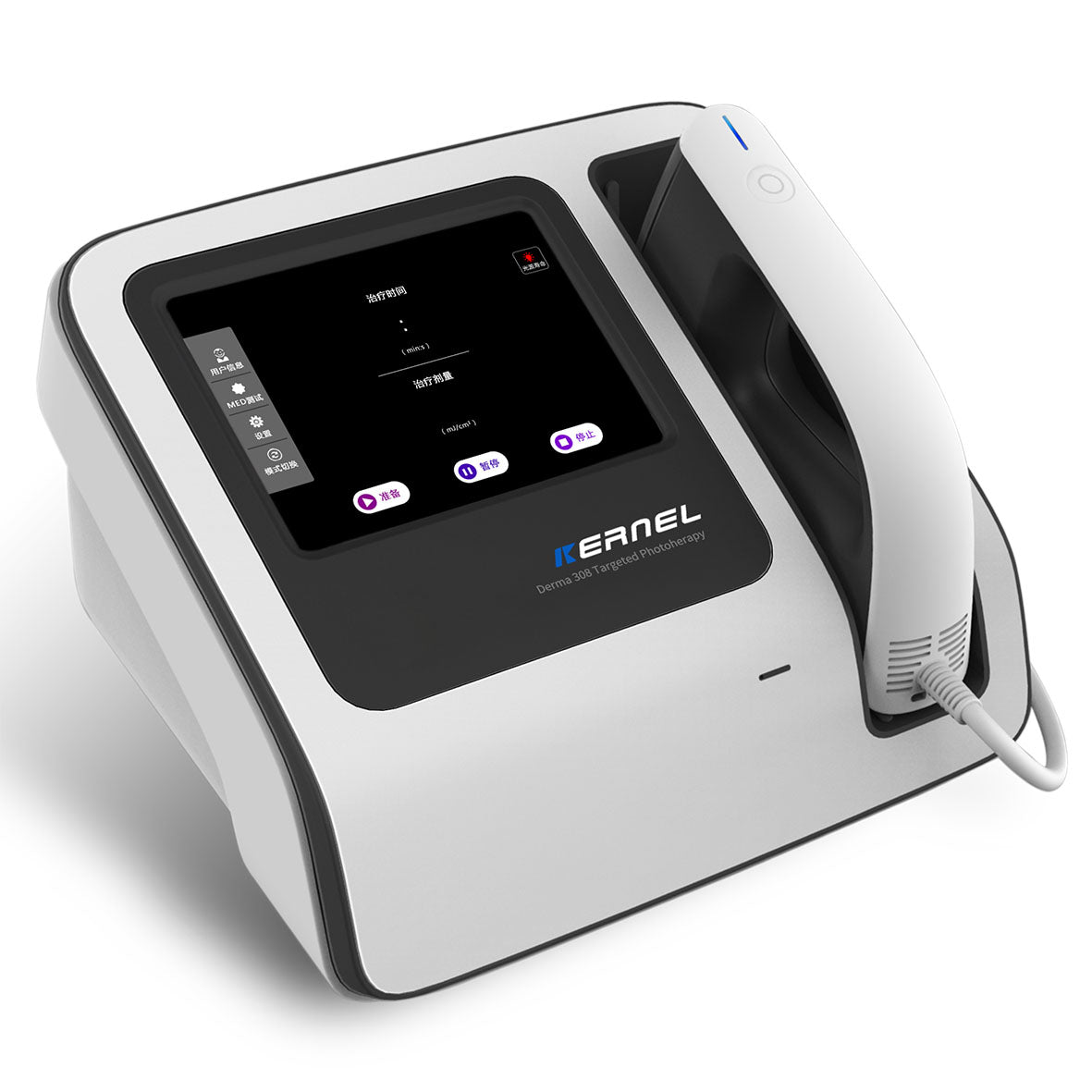

Shape Tactics 308nm Excimer Laser System

The Shape Tactics 308nm Excimer Laser System is a targeted phototherapy device utilizing a 308nm xenon chloride (XeCl) excimer light source, designed for the treatment of various dermatological conditions such as vitiligo, psoriasis, eczema, and pityriasis rosea.

Specifications

Certificate: FDA Approved

Operation Mode: Continuous operation

Light Source / Output Waveform: XeCl Excimer Light / Excimer Laser

Wavelength: 308–311 nm ± 3 nm

Irradiation / Treatment Area: 20 cm² ±10% (≈ 3 in² ±10%)

Irradiation Intensity: 50–55 mW/cm² ±10%

Treatment Speed: Up to 12× faster than standard devices

Treatment Modes: Time and Dosage (Dose & Time)

Time Setting Range: Up to 120 seconds

Work Distance: 1.18 in ± 0.20 in

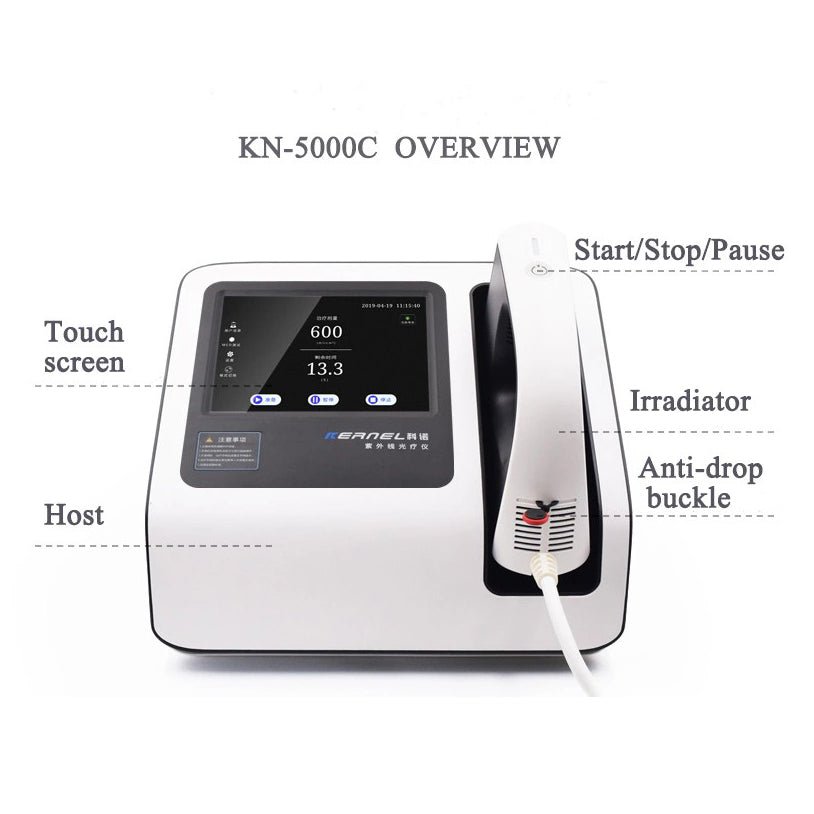

Display & Control

Screen: 8-inch color LCD touch screen

Built-in Functions: Minimum Erythema Dose (MED) test function

Management System: Fingerprint login & irradiation intensity calibration system

Power & Performance

Power Supply: AC220V ±10% 50Hz ±2% (output: 100–240V, 50/60Hz)

Rated Power: 160 VA

Mobility: Corded (no built-in battery)

Safety & Accessories

Shading Sheets / Interchangeable Tips: Multiple specifications to precisely control irradiation range, suitable for different lesion sizes (includes 6 interchangeable tips)

Protective Gear: UV safety goggles included

Lifespan & Build

Light Source Lifespan: Approx. 500 hours (rated ≥500 hours, typically ≤500 hours)

Dimensions: 16.5'' L × 13.6'' H × 16'' W

Weight: 11.02 lbs

Package Contents

1x Main Machine
1x UV Goggle
1x Charging Cable
6x Interchangeable Tips
