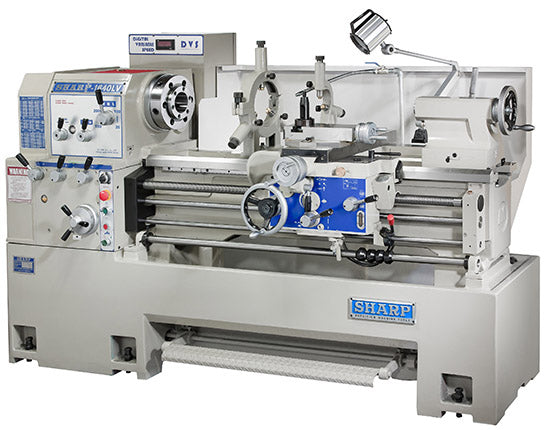

Sharp Industries 18" x 60" Vari Speed Precision Lathe - 1860LV

Sharp Industries 18" x 60" Vari Speed Precision Lathe - 1860LV

• These lathes are equipped with geared headstock, hardened and ground bed ways. Larger models are built on one piece casting bases for rigidity.
• The spindle is mounted on 2 precision tapered roller bearings and one ball bearing. This triple bearing support system ensure accuracy and rigidity at all times.
• The headstock can be adjusted for heavy irregular work piece at high speed turning to ensure vibration free operations.
• Handles that are used for engaging gears are built with locking pins to prevent the handles from being knocked out of place accidentally or under heavy cutting circumstances. Repositioning of handles is done by pulling the spring-loaded handle back and then shifting.
• The universal gearbox design allows easy selection of inch and metric threading by just turning the lever to the assigned position instead of changing individual gears outside the headstock.
• Selection of gears at the gearbox is done by a rotational style lever that results in less movement of the gears compare with the back-and-forth shifting style lever. Less movement of the gears means less wear and greater accuracy.
• For maximum stability and minimum distortion, the entire base of the machine is made out of one-piece casting. The casting is made from high quality Meehanite process to ensure high tensile strength with excellent vibration dampening features.
• The gapped bed design allows extra large work piece to be chucked at the spindle when the gap is taken out.
• Bedways are induction hardened and ground for durability.
• Headstock gears are hardened and ground, made out of Chrom-Moly alloy steel for maximum wear.
• The headstock is equipped with a job button that allows inching movement of the spindle for easy engagement of gears.
• One shot lube system is installed in the apron to direct lube oil to all the sliding surfaces.

STANDARD ACCESSORIES:

• 3-jaw chuck. (10”)
• Steady rest with bronze tip (1/2-6”)
• Follow rest
• Face plate (16”).
• Coolant system.
• American toolpost.
• Halogen work light.
• Longitudinal carriage stops.
• Tool kit.
• Full length Splashguard.

OPTIONAL ACCESSORIES:

• Call for Pricing
• 3 Jaw chuck (12”)
• 4 Jaw chuck (16”)
• Steady rest with roller jaws
• Follow rest
• Micrometer carriage stop
• Chuck guard
• Drill chuck
• Live centers
• 4 way tool post
• Quick-change tool holder.
• 5C collet closer
• Taper attachment
• Digital Readout System
