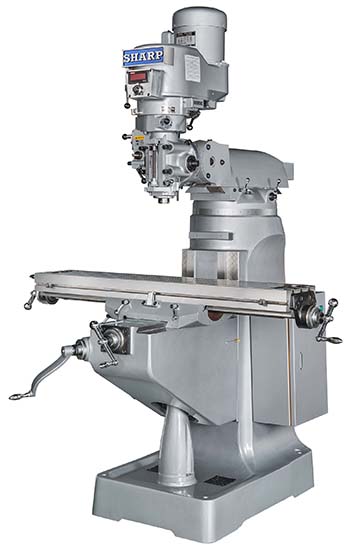

Sharp Industries 9" x 49" Table Vertical Knee Mill - LMV-49-DVS

These vertical knee mills are equipped with vari-speed drive. The dove tail ways chromed, and the box ways are hardened and ground.

ISO 9002 Certified:
Quality Up To World Industry Standards.

Meehanite Casting:
Highest Grade Of Casting Possible.

A Pair Of Precision ABEC-7 Angular Contact Bearings To Support Spindle. The Quill Is Ground And Chromed To Fit The Housing:
This Insures A Spindle Run out Of .0002” T.I.R.

Motor Shaft And Varidrive Pulleys Are Dynamically Balanced, Then Chromed For A Flawless Fit, Ground Ribs On Inside Diameter:
For Smooth Speed Changes.

Motor Shaft Has An Oil Channel In The Center That Is Fed By A Grease Fitting On The Lower End:
To Keep Vari-Drive Pulley Moving Smoothly On The Shaft.

This LMV-49DVS Mill Uses A Roller Bearing For The Lower Support Of The Shaft: It Ensures Proper Loading, Support And Alignment It Also Prevents The Shaft From Being Distorted By The Tension Of The Belt:
For Quiet, Accurate Operation At Any Speed For Years And Years.

One Shot Lubrication System:
For Lubrication Of Ways And Lead Screws. (X,Y And Z-Axis)

Hand Scraped Saddle And Knee:
For Better Oil Retention. It Avoids Having Chips And Dirt Embed In The Knee And Damage The Sliding Surface.

Oil Groove Are Milled:
For Maximum Lubrication On All Wear Areas.

Table And Saddle Backlash Is Controlled By Double Nut Design:
Keeps Lead Screw In Contact With Bronze Nuts An All Times To Keep Backlash At .0008” Within 20”.

Table And Saddle Are Mounted With Thrust Bearings That Are Pre Loaded:
Eliminating Endplay For Precisely Controlled Lateral Movement.

Patient Knuckle Design Uses 6 Bolt 3 Per Side, Securing Them From The Outside:
This Method Locks The Head Securely Resulting In Better Accuracy And Performance.

STANDARD ACCESSORIES:

• DVS Head
• Hard-chromed ways
• Precision Ground and Flaked Table
• Unique Double Nut Backlash System
• Double Fan Cooling System
• Cutler Hammer On/Off Switch
• One-shot lube system
• Front and rear rubber way covers
• Tool kit

OPTIONAL ACCESSORIES:

• Call for pricing.
• 440 V Transformer - 3HP
• Auto Lube Pump w/ 2 adjustments
• 6" Kurt Vise with Swivel Base D688
• Righ Angle Milling Attachment with Arbor
• Drill Chuck & Drill Arbor
• Coolant system with chip pan
• Maxi Torque Rite Power Draw Bar
• Riser block (4”, 7”)
• R-8 Collet Set of 11 (1/8"-3/4" by 1/16")
• Clamping Kit
• Halogen work light
• Spare Kit
