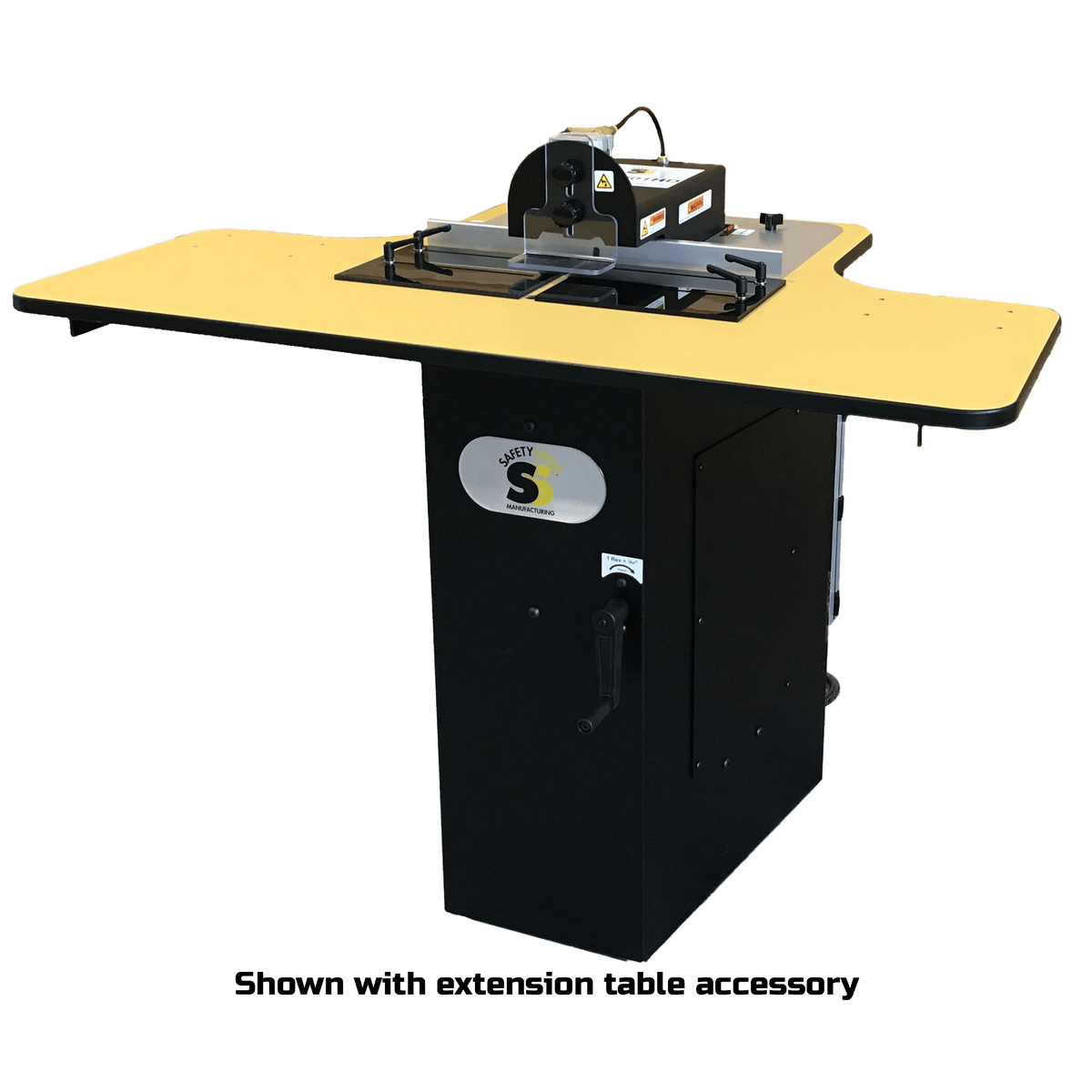

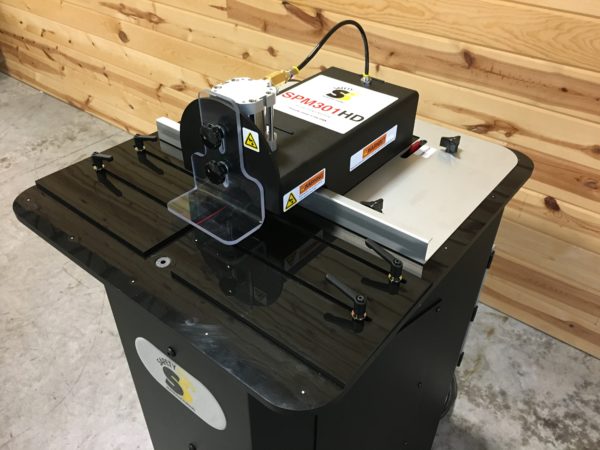

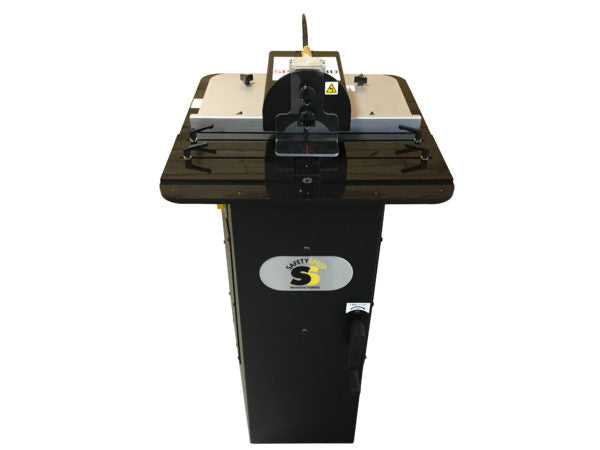

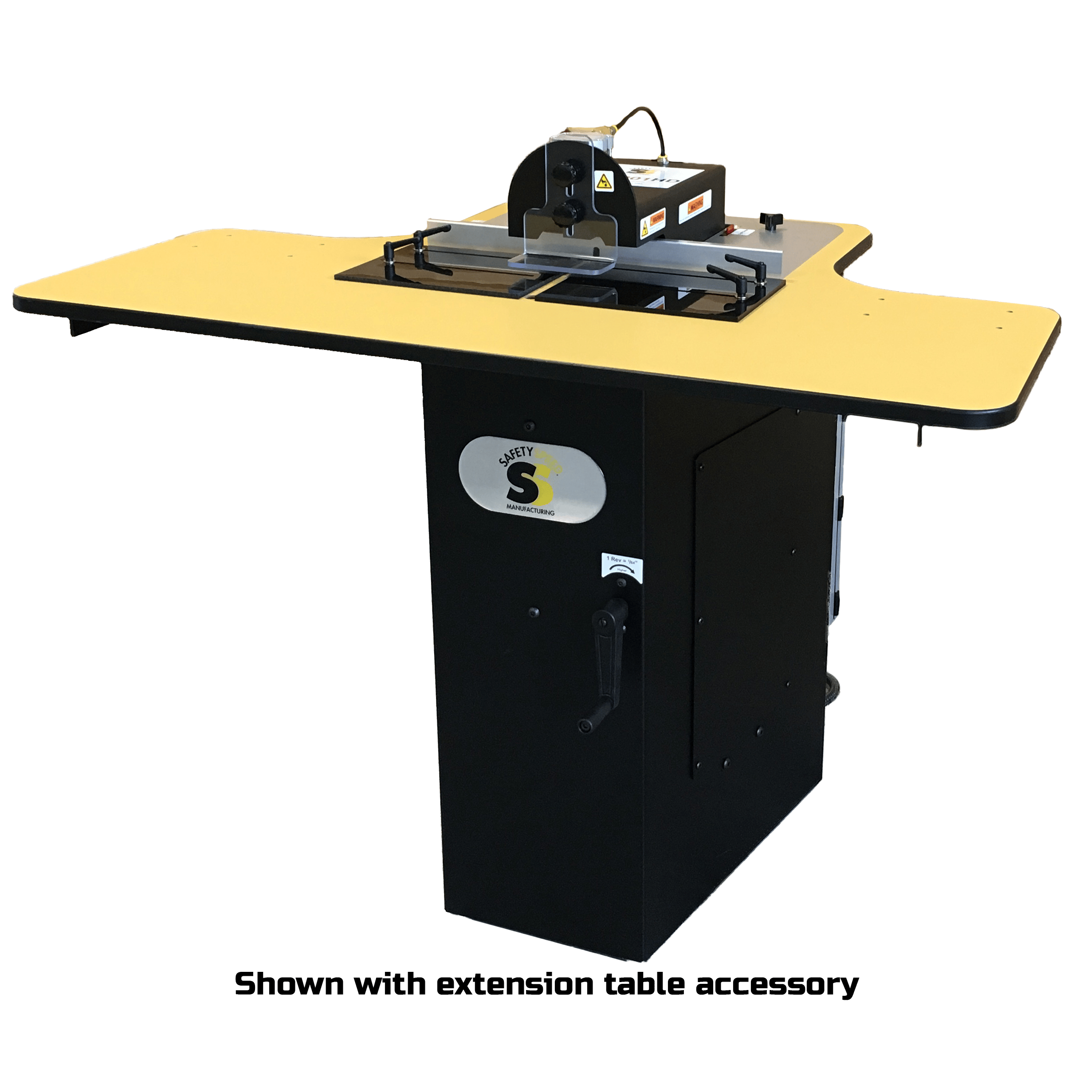

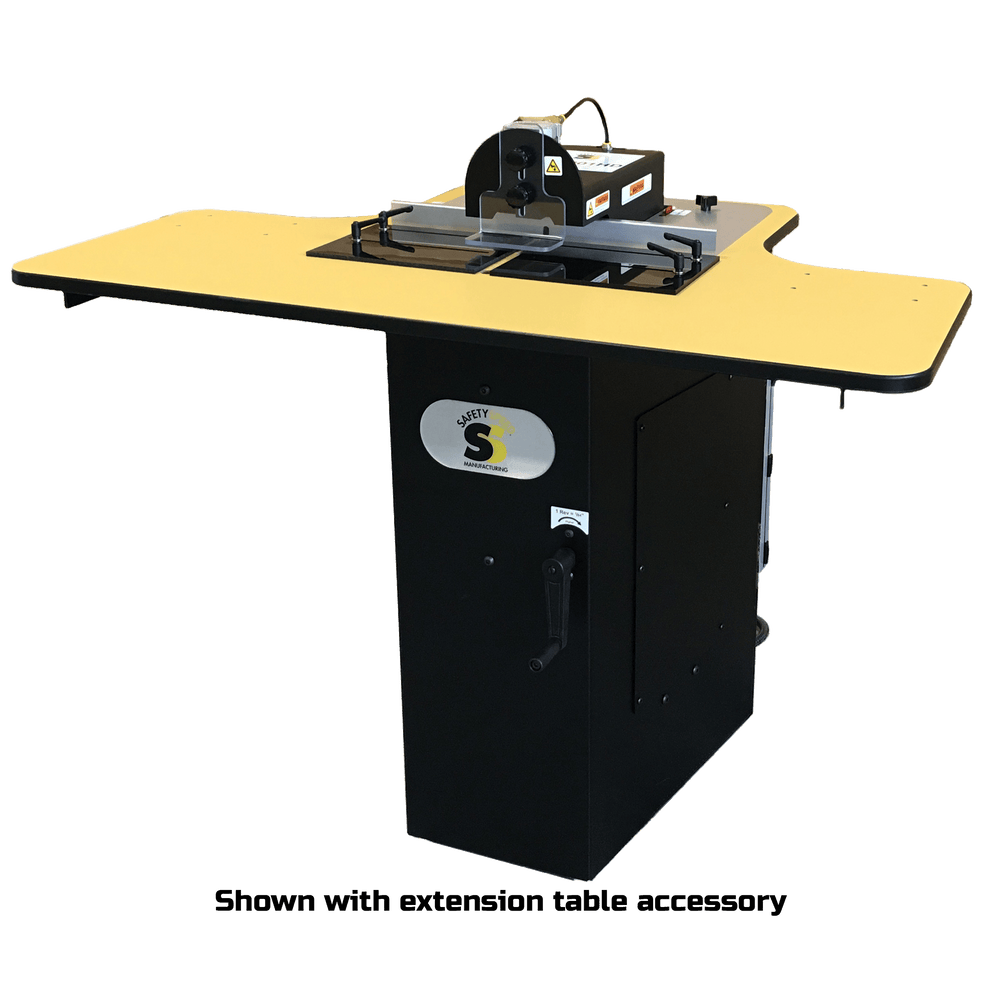

Safety Speed | Screw Pocket Machine | SPM301HD

Pocket-hole joinery for high production woodworkers made easy with our SPM301HD Screw Pocket Machine. This machine allows for simultaneously drilling a pilot hole and machining a screw pocket in under a second.

Key enhancements on the SPM301HD from the SPM301 Screw Pocket Machine are:
  1. A spindle motor just like the ones in a CNC machine, running continuously with minimal maintenance
  2. An air drill replacing a router motor

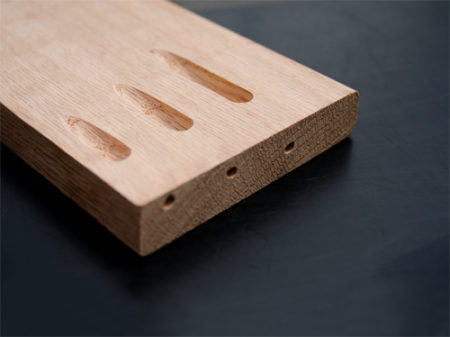

A two-in-one motion simultaneously drills a six degree pilot hole and machines a screw pocket in under a second on most wood species.  The SPM301HD features a heavy-duty, direct drive continuous electric spindle motor, allowing for continuous pocketing production. Learn how Moore’s Country Woodcrafting, Inc doubled screw pocketing production and began pocketing one million screw pockets per year with this machine.

Description

The SPM301HD features  a heavy-duty, direct drive continuous electric spindle motor for those jobs that just keep on coming.  Unlike others of its kind, the SPM301HD features cam-driven action providing fast, smooth cutting action under complete mechanical control throughout the machine cycle. The new pilot air drill and end mill produce superior low-angle 6 degree screw pockets. Requires standard 220V and 6.2 CFM at 90 PSI based on 25% load factor, 25% duty cycle.

Additional information

Weight 350 lbs
Dimensions 32 x 22 x 44in
Crated Dimensions

36" × 28" × 49"

Vacuum Diameter Required

3" Hose Connection

Vacuum CFM Required

220 CFM

Air Requirement

6.2 CFM at 90 PSI
* Rating based on 25% load factor, 25% duty cycle

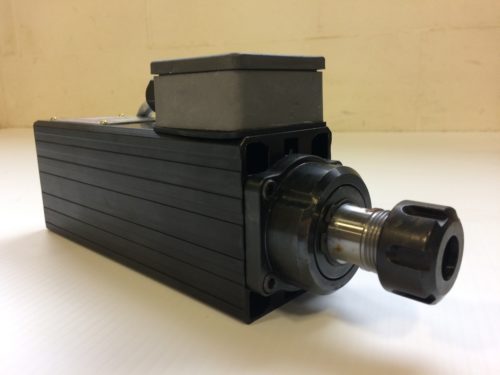

Spindle Motor

5 amp/18,000 RPM, 3/8" (ER20) Collet

Screw Pocket Angle

Six Degrees

Spindle Motor Amps

5 amps

Spindle Motor Collet

3/8” Collet

Spindle Motor Max RPM

18,000

Air Drill

.7HP

Air Drill Collet

1/4" Collet

Air Drill Max RPM

25,000

Screw Pocket Depth Range

.5" to 1.5"

Country of Origin

USA



Product manual

Download the manual

Product parts

Download the product parts

Pocket Machine Features

Download the Pocket Machine Features

SPM 301 & 301HD Catalog Page

Download the SPM 301 & 301HD Catalog Page
