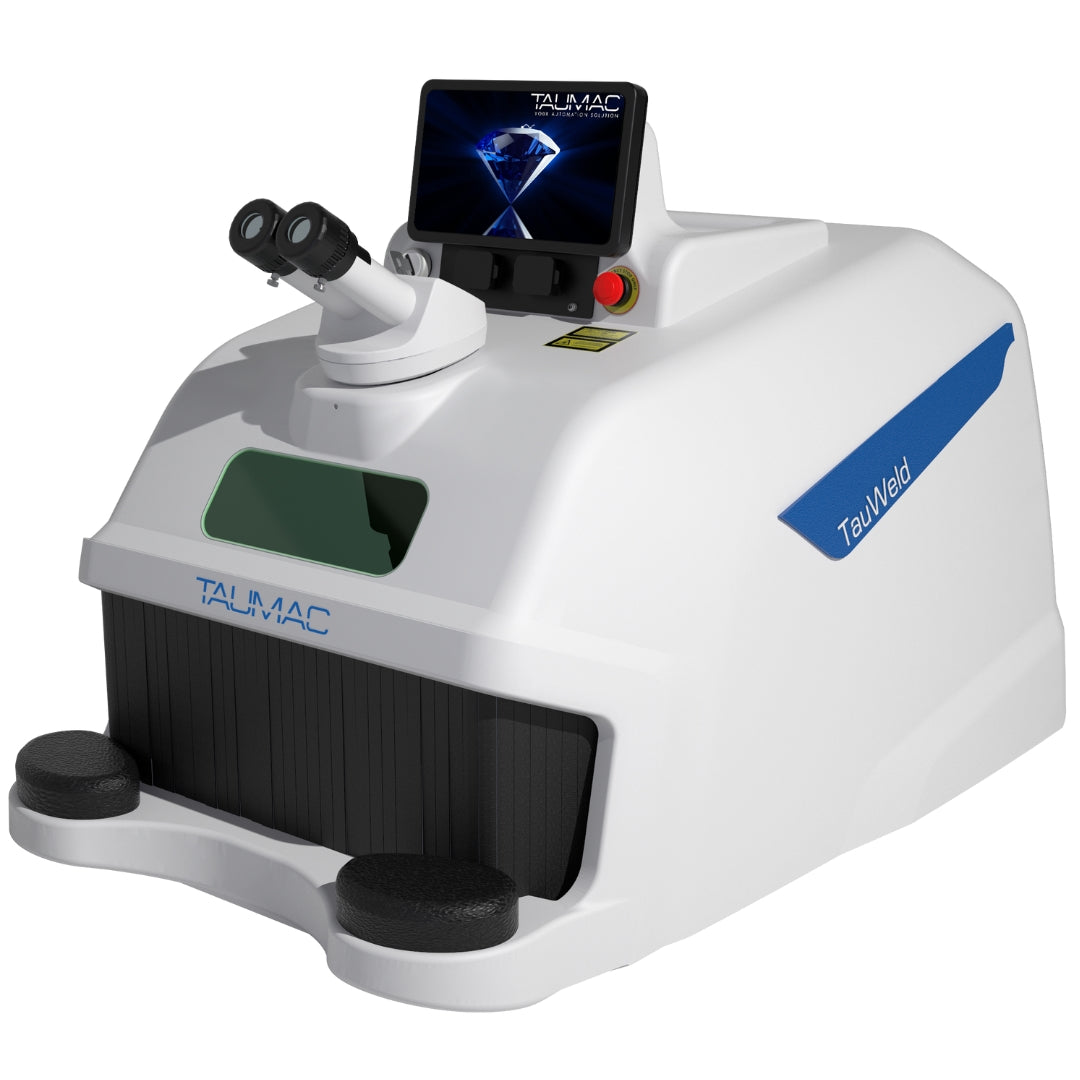

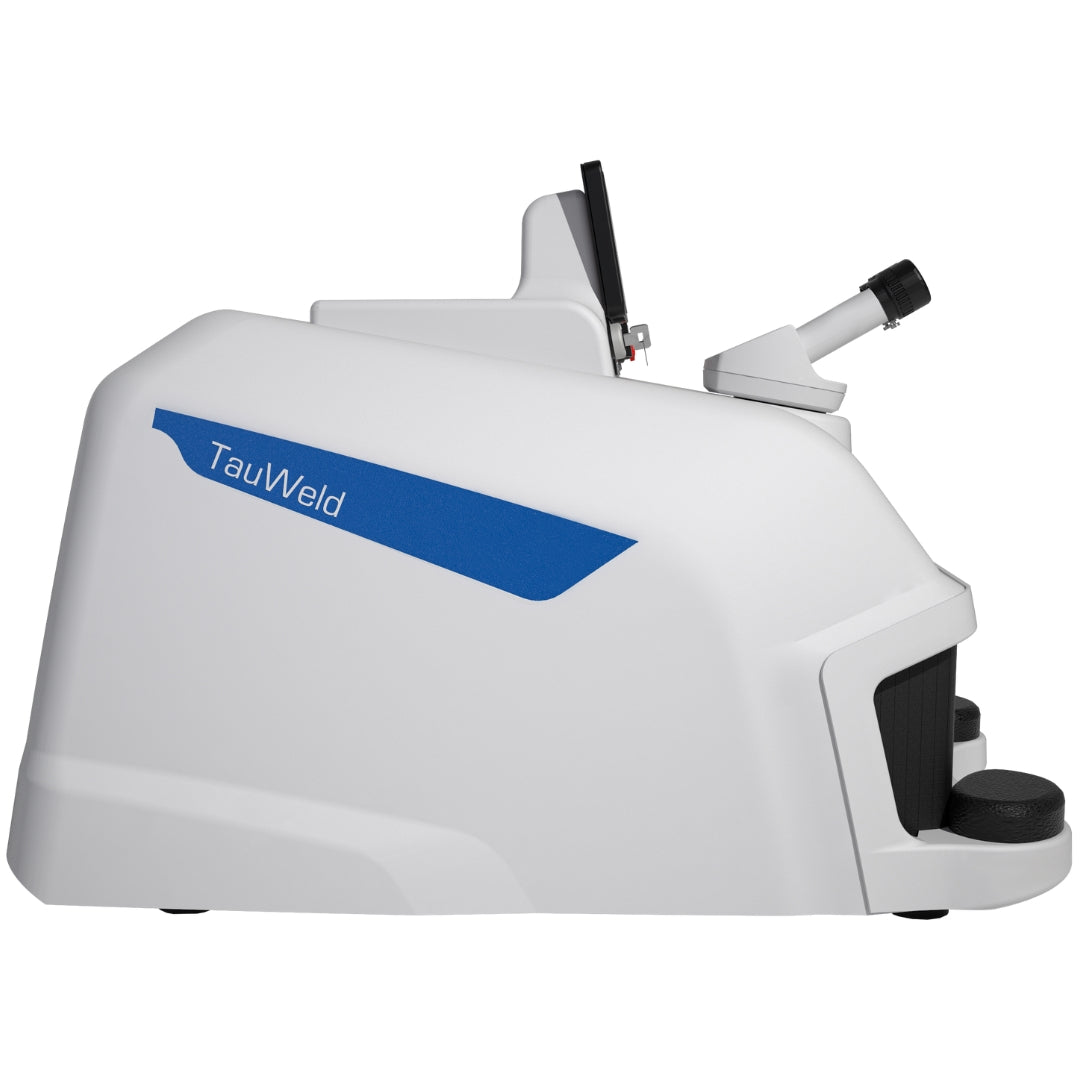

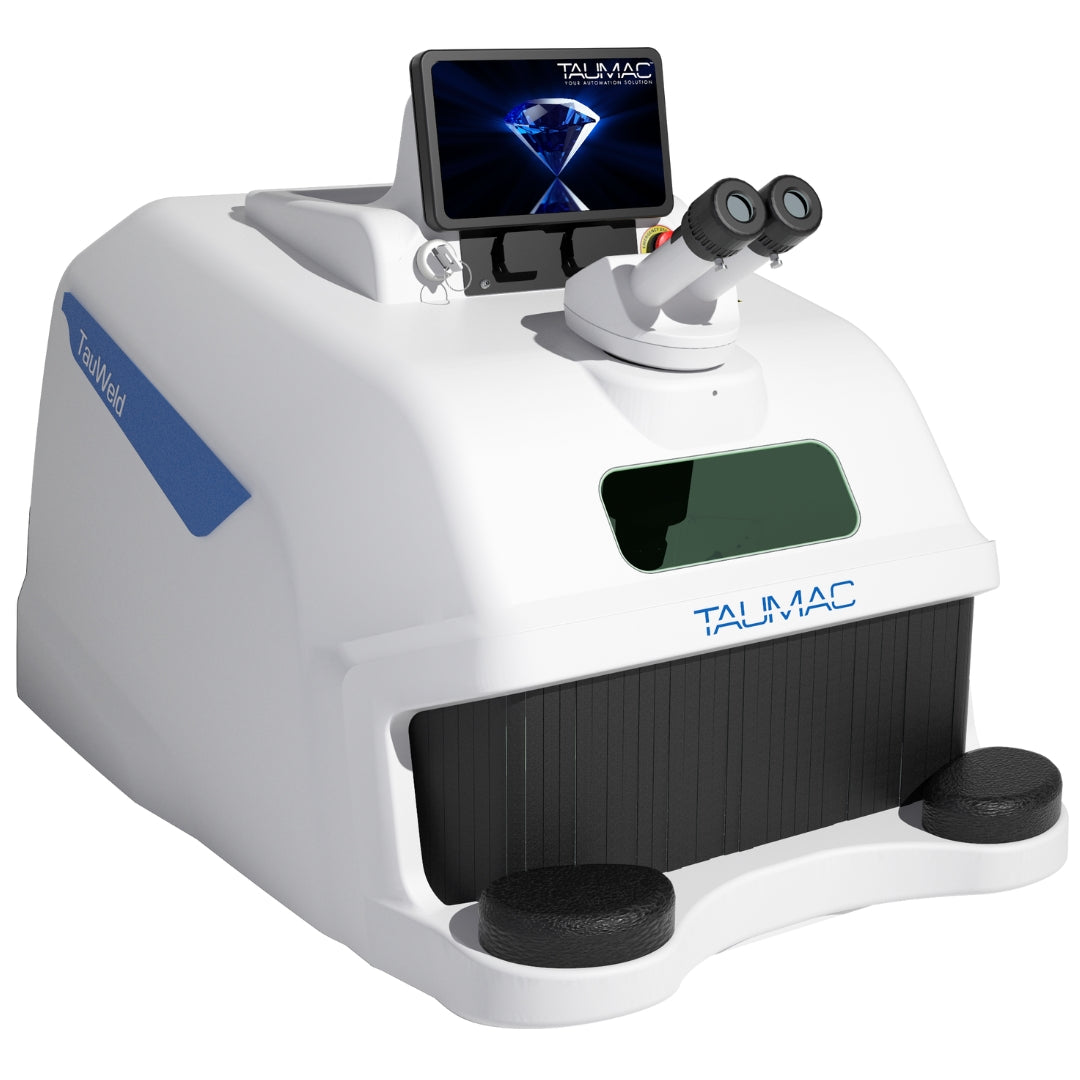

PepeTools Tauweld 200J Benchtop Laser Welder

PepeTools Tauweld 200J Benchtop Laser Welder

An engineering marvel, the Tauweld by Pepetools is a compact and powerful laser welder that can handle the most demanding tasks in a jewelry, dental, or industrial workshop. Manufactured in Italy in partnership with Pepetools, the Tauweld is a reliable workhorse powered by a 2 year manufacturer warranty with free remote training and support setup included.

Our 200J Benchtop Laser Welder – an advanced, state-of-the-art welding machine meticulously engineered to meet the demanding needs of precision welding. This high-performance equipment integrates a wide array of innovative features, providing exceptional quality and versatility for all types of alloy welding tasks.

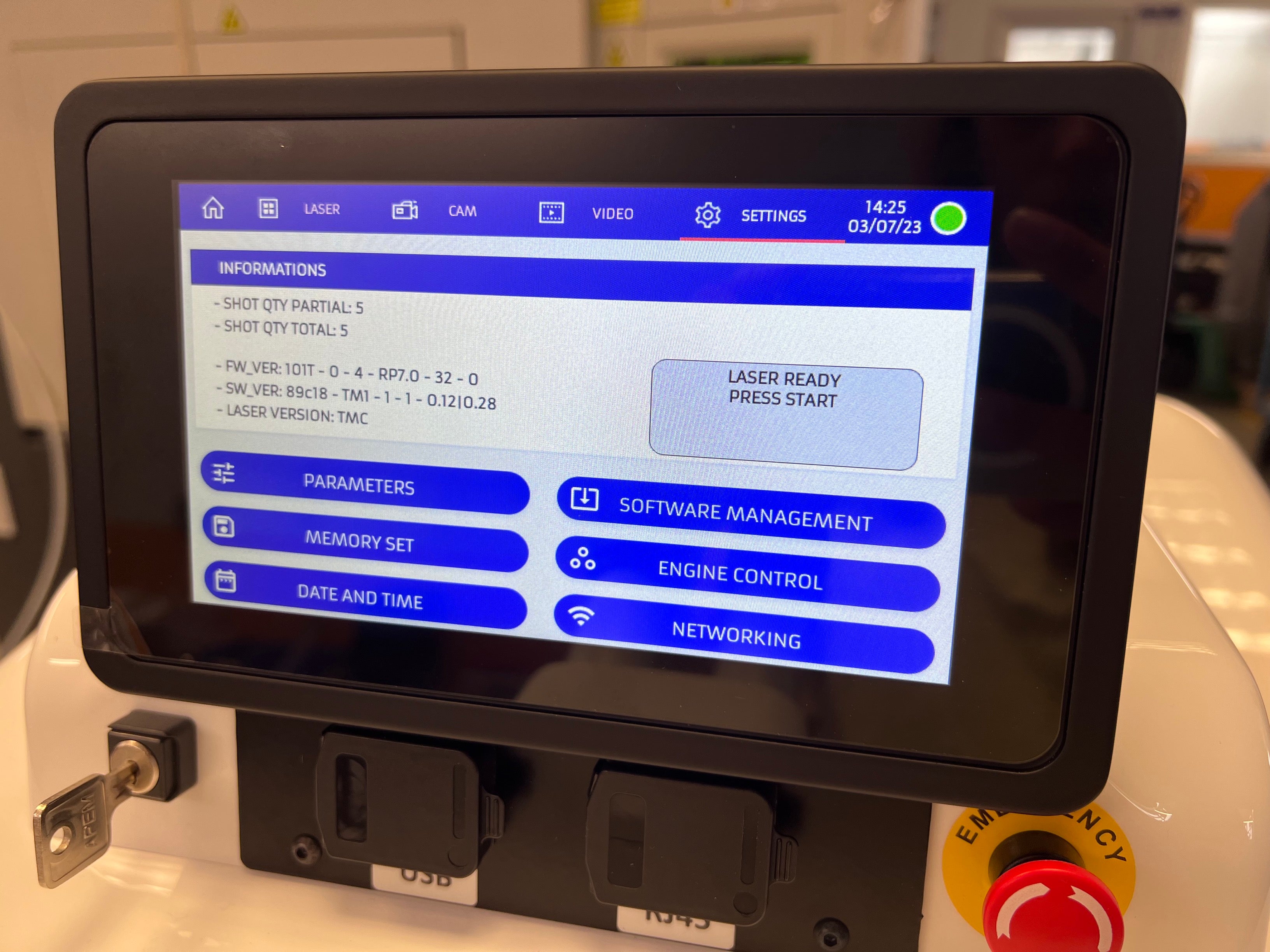

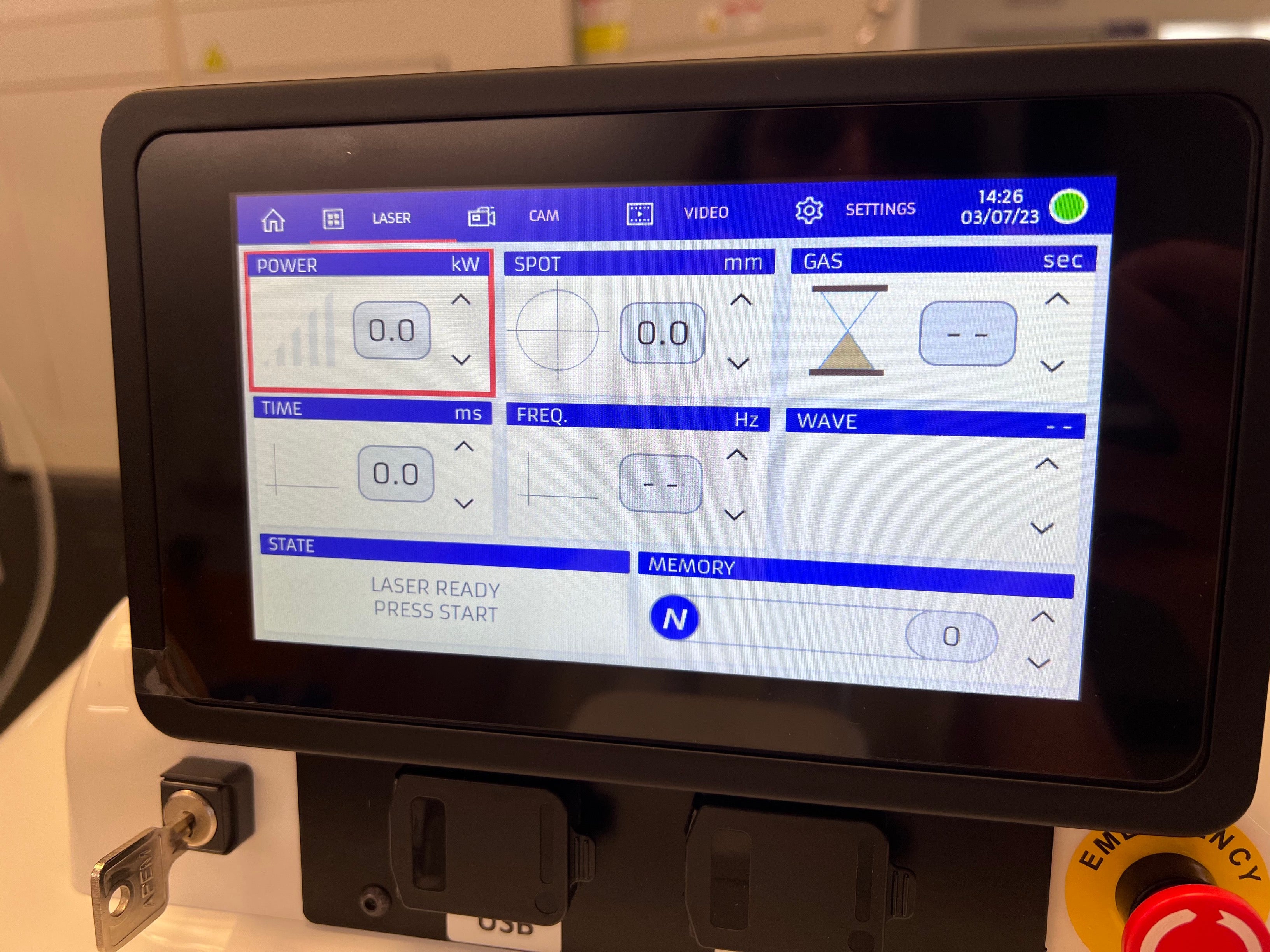

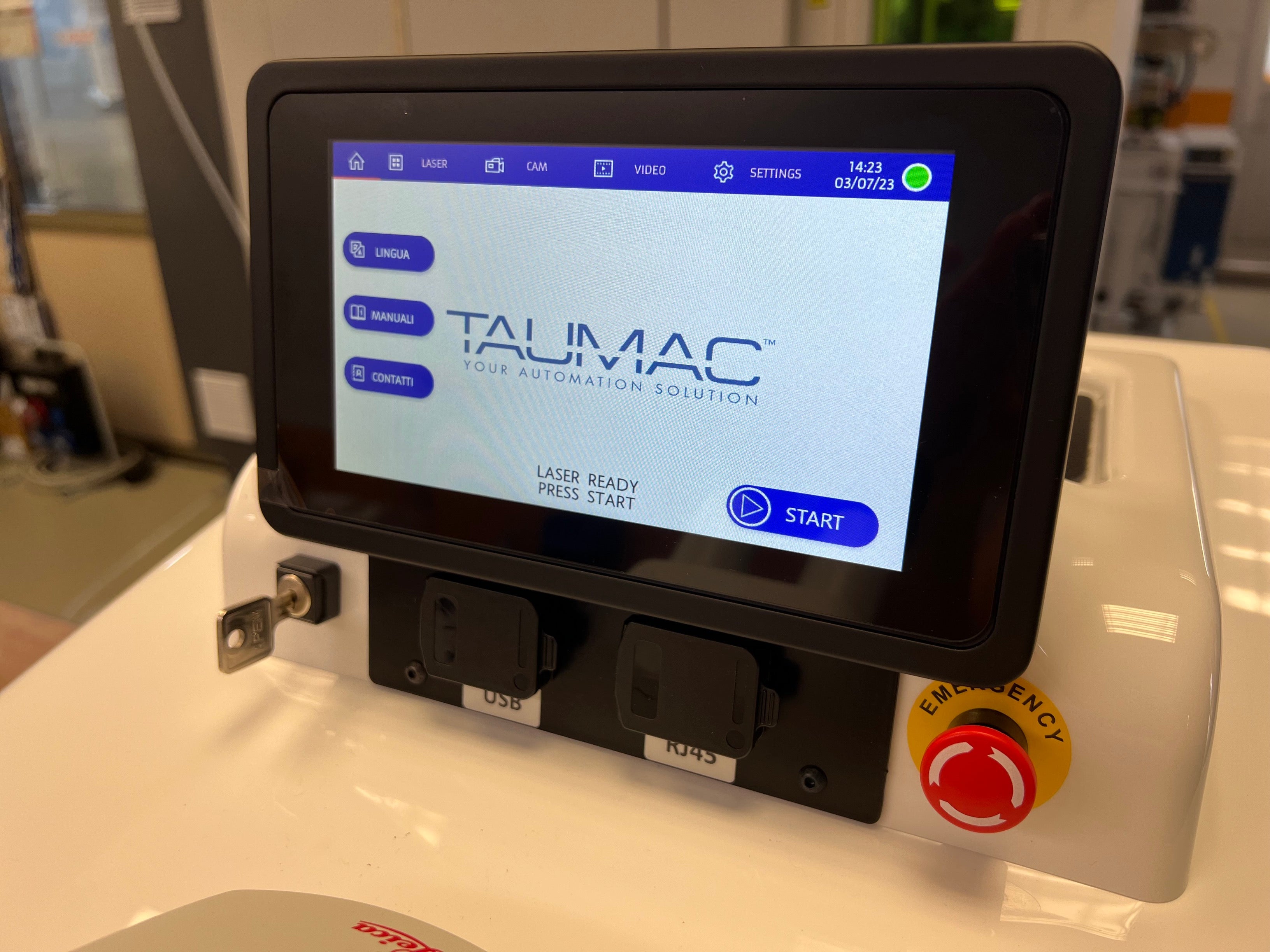

Boasting an intuitive user interface with a vibrant 7-inch color touchscreen display, this laser welder facilitates quick and easy access to work parameters and efficient management of options. A user-friendly experience is further enhanced with an integrated USB Drive, allowing for seamless saving of work parameters and convenient software upgrades. A port allows for a connection to an external monitor for instructional use.

Equipped with 100 memory cells, this welder enables the storage of numerous work settings, making it ideal for an array of varied welding projects. The powerful and silent hydraulic cooling circuit ensures efficient operation, with an optional external additional cooling feature available for high working cycles.

For unmatched welding quality on all types of alloys, our 200J Benchtop Laser Welder comes with 5 pre-set waveforms (pulse-shaping). The machine also features a built-in LED lighting system, illuminating the work area for optimal precision.

Designed for precise welding tasks, our benchtop laser welder is equipped with an Argon gas supply, directly on the welding surface and coaxial to the spot. It comes with a post-gas and pre-gas control, ensuring a clean and controlled welding environment.

The 200J Laser Welder comes with a standard soft spot feature and an Nd:YAG 7mm crystal type. With a pulse duration of 20ms, a peak power of 10kW, and a repetition of 30Hz, this machine is designed to deliver high performance and quality welds. It has an average power of 200W, with spot dimensions ranging from .01mm to 2mm.

This robust and durable machine weighs approximately 94.8 lbs (43kg), making it portable and suitable for various work environments. It comes in compact overall dimensions of approximately 32.5" x 24" x 23.2" (825mm x 610mm x 590mm tall), making it an ideal choice for workshops where space is a premium.

Experience precision, power, and versatility with our 200J Benchtop Laser Welder, designed for superior welding performance on all types of alloys.

Specifications:

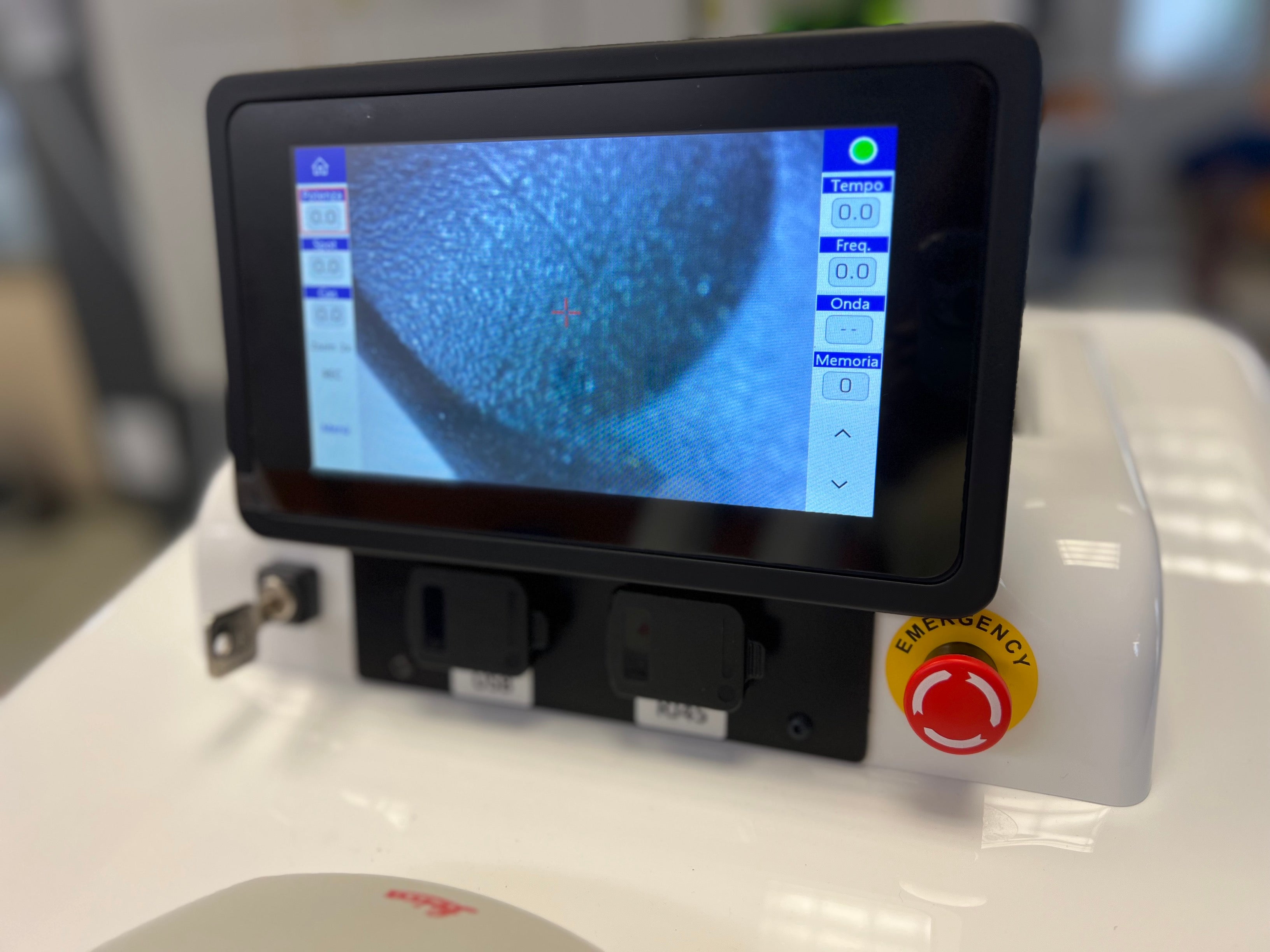

• Incorporated within the system is a high-definition camera that enables in-chamber visualization and recording, creating an optimal solution for educational demonstrations and training. It also facilitates live-action video and static image capture, which can be relayed to a computer monitor via an RCA jack for review or promotional uses.
• The apparatus comes equipped with an HDMI port, a feature that enables data migration from any device. This facilitates the preservation of settings for future utilization, transference of data for detailed analysis, or redistribution of configurations across other machinery within your workspace, ensuring accurate and instantaneous sharing of optimal settings for any given task.
• The system is outfitted with interchangeable eyepieces, enabling users to align the crosshair lens with their dominant eye, thus enhancing welding precision.

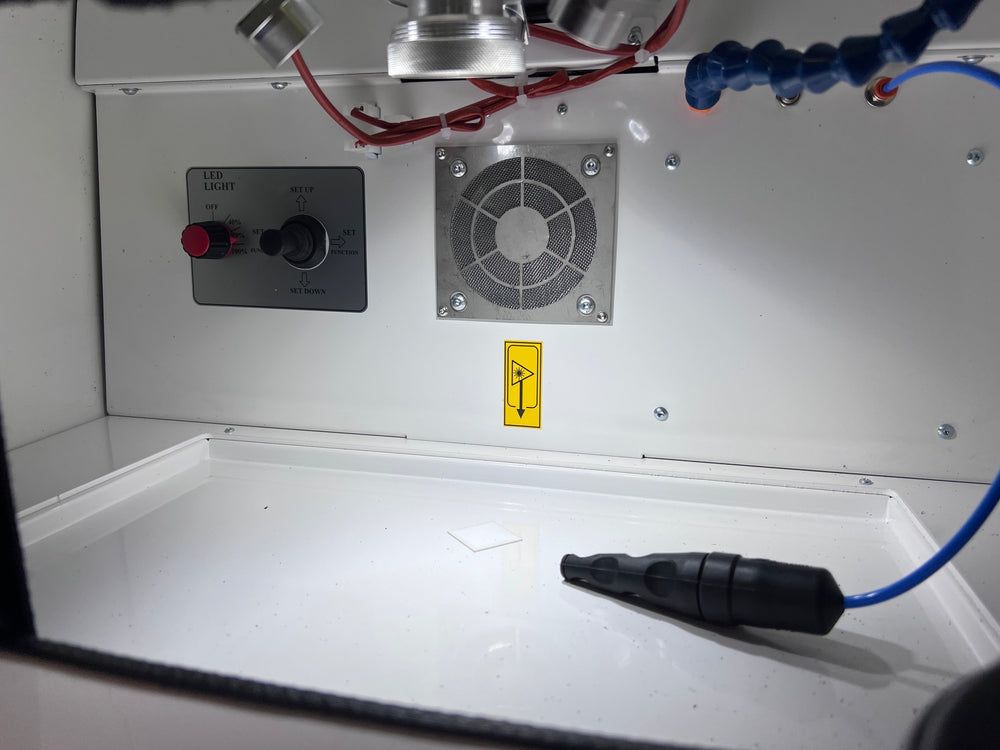

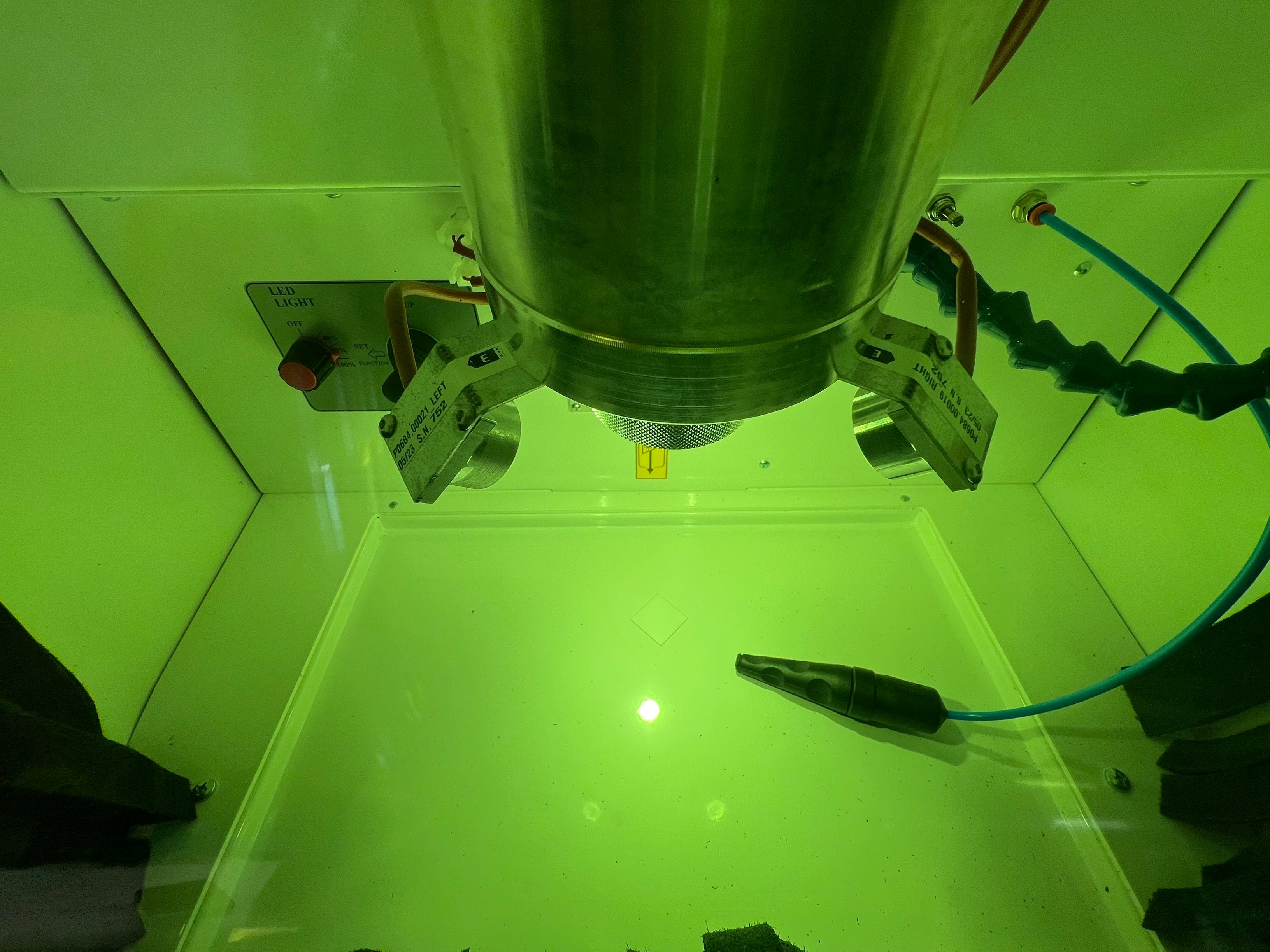

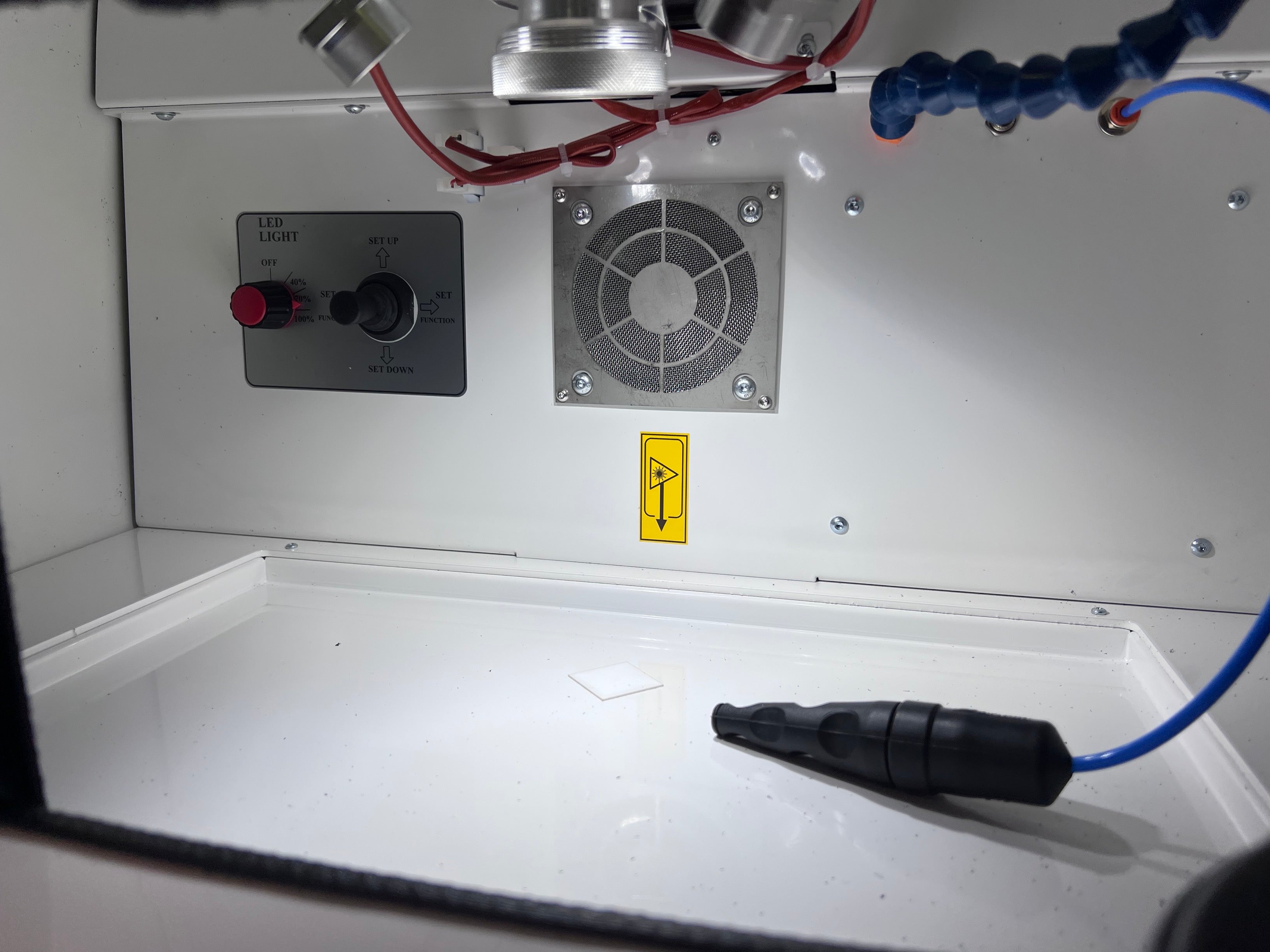

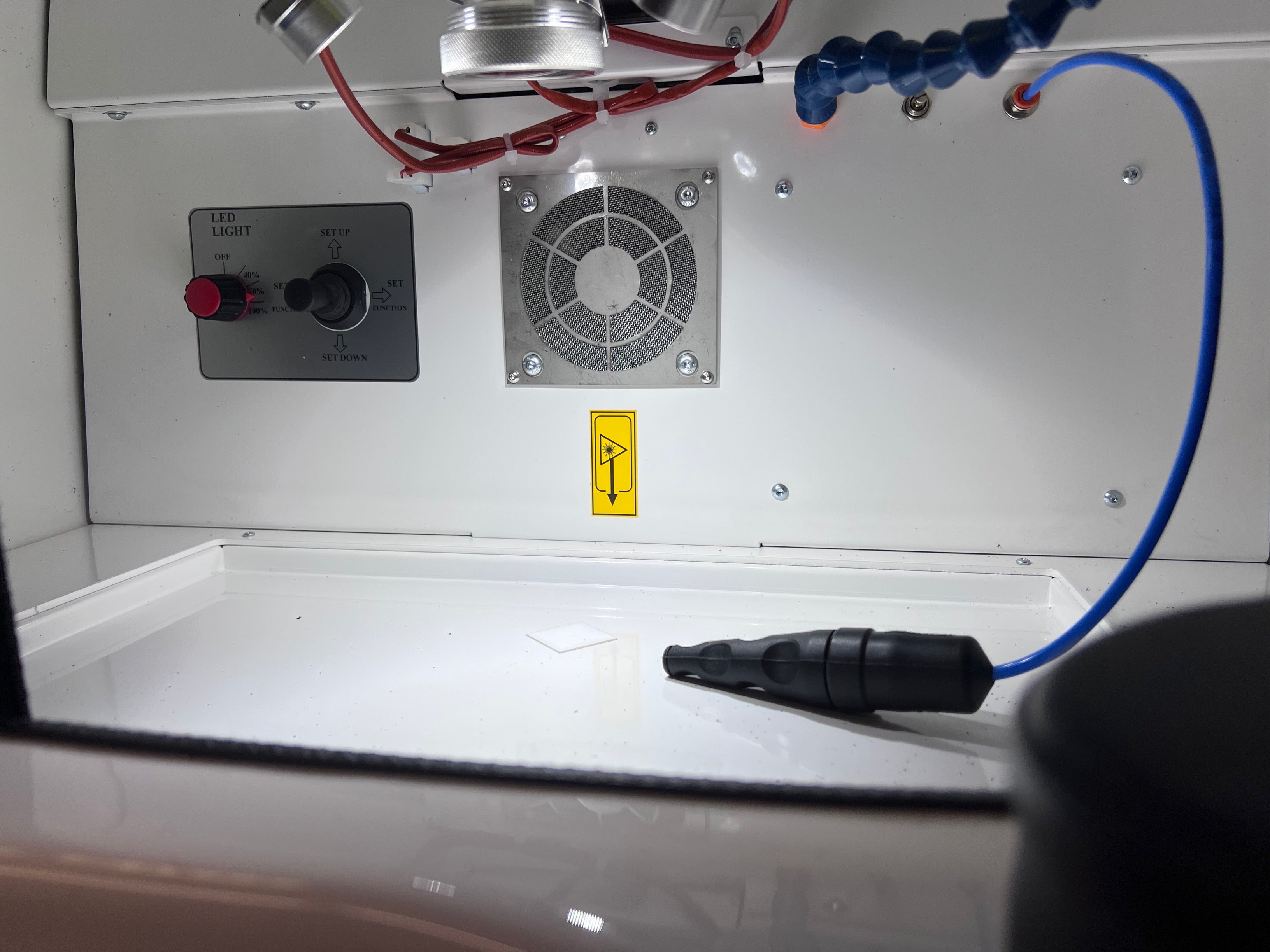

• The apparatus houses a spacious weld chamber with a large entrance, which accommodates sizable pieces and affords the user increased freedom during operation.

• A control joystick located within the chamber offers an easy interface for adjusting various settings, including the spot size.

• Adjustable pulse-shape settings allow users to tailor their pulse in line with distinct metallurgical attributes.

•  The inclusion of memory cells allows for the storage of up to 99 individualized configurations, serving as a quick reference for your most frequently utilized applications.

• High-efficiency optics increase the average power output, optimizing energy use by producing more power with fewer joules.

• The inclusion of an advanced constant-voltage inverter power supply eradicates power fluctuations, ensuring efficient and consistent welding performance while simultaneously extending the flashlamp's lifespan.

• The weld chamber is equipped with two distinct connection points, one each for compressed air and argon gas. The air nozzle can be adjusted for precision placement.

• A final note to the apparatus's robustness is the flame-resistant plastic housing, ensuring the safety and durability of the unit.


The TauMac TauWeld includes:

• Deionized water for tank
• Two Allen Wrenches
• Leica 10x Microscope
• Foot Pedal
• Tubing for compressed air & argon gas
• Power cord

Documents:

User Manual for Tauweld 200 Joule

Suggested Welding Parameters
