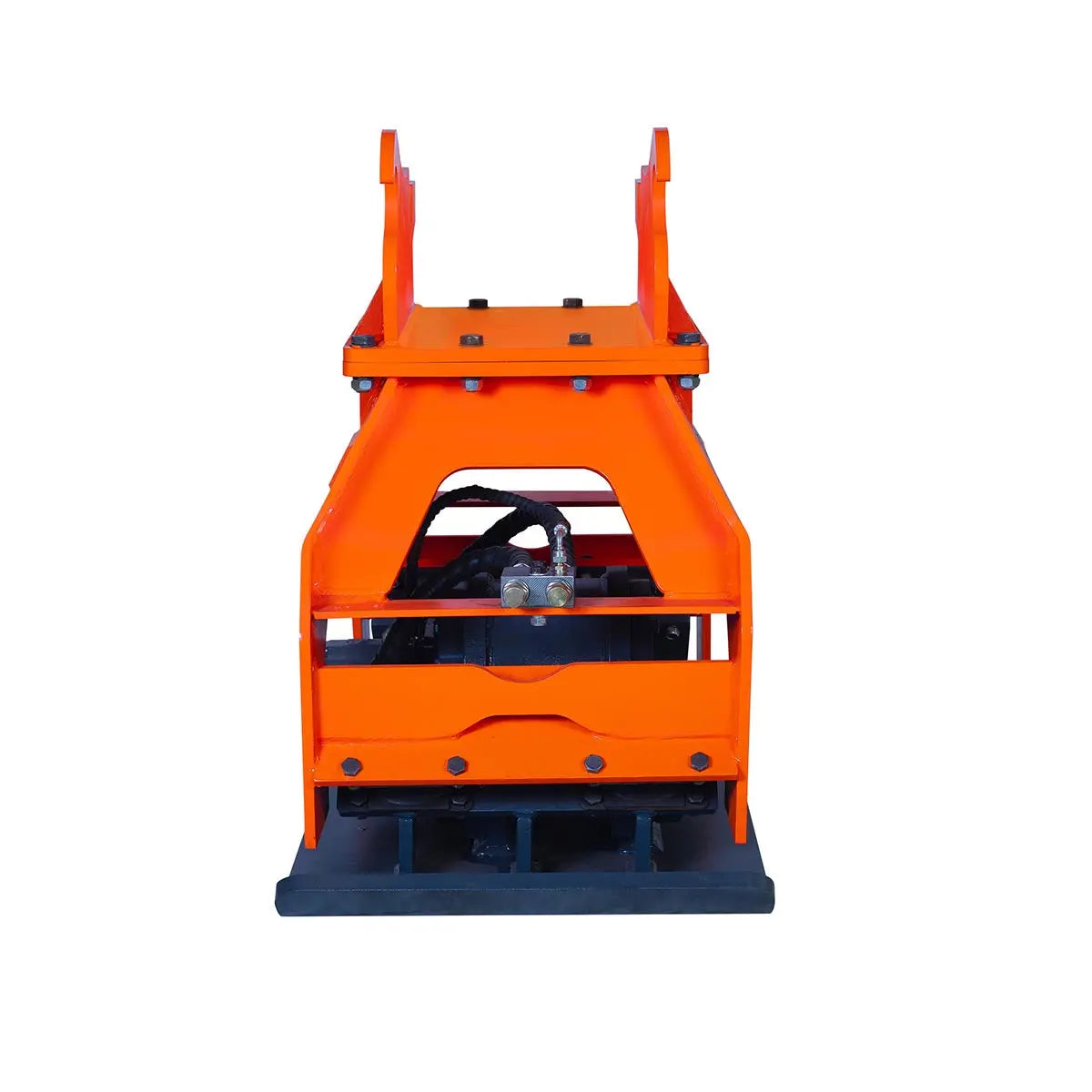

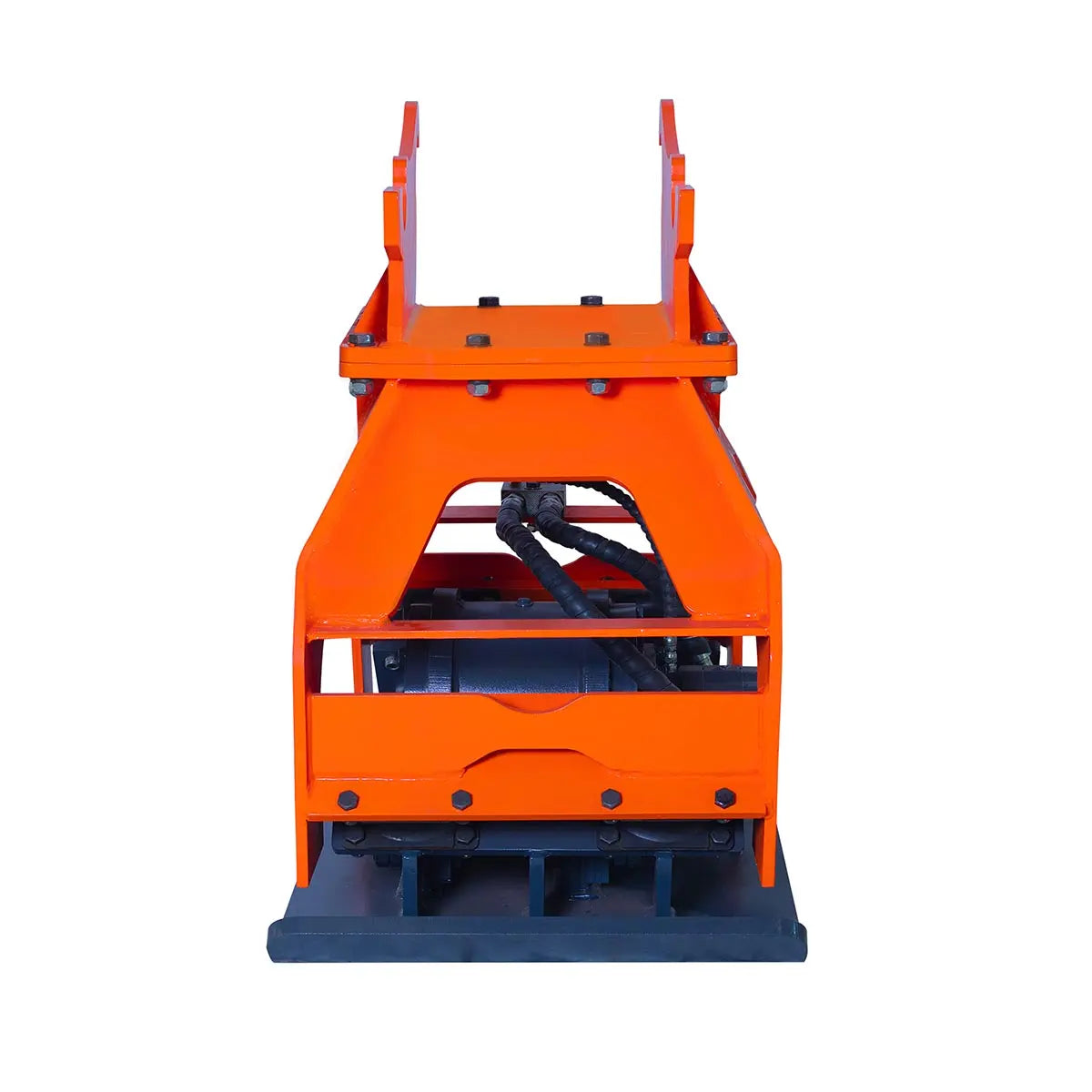

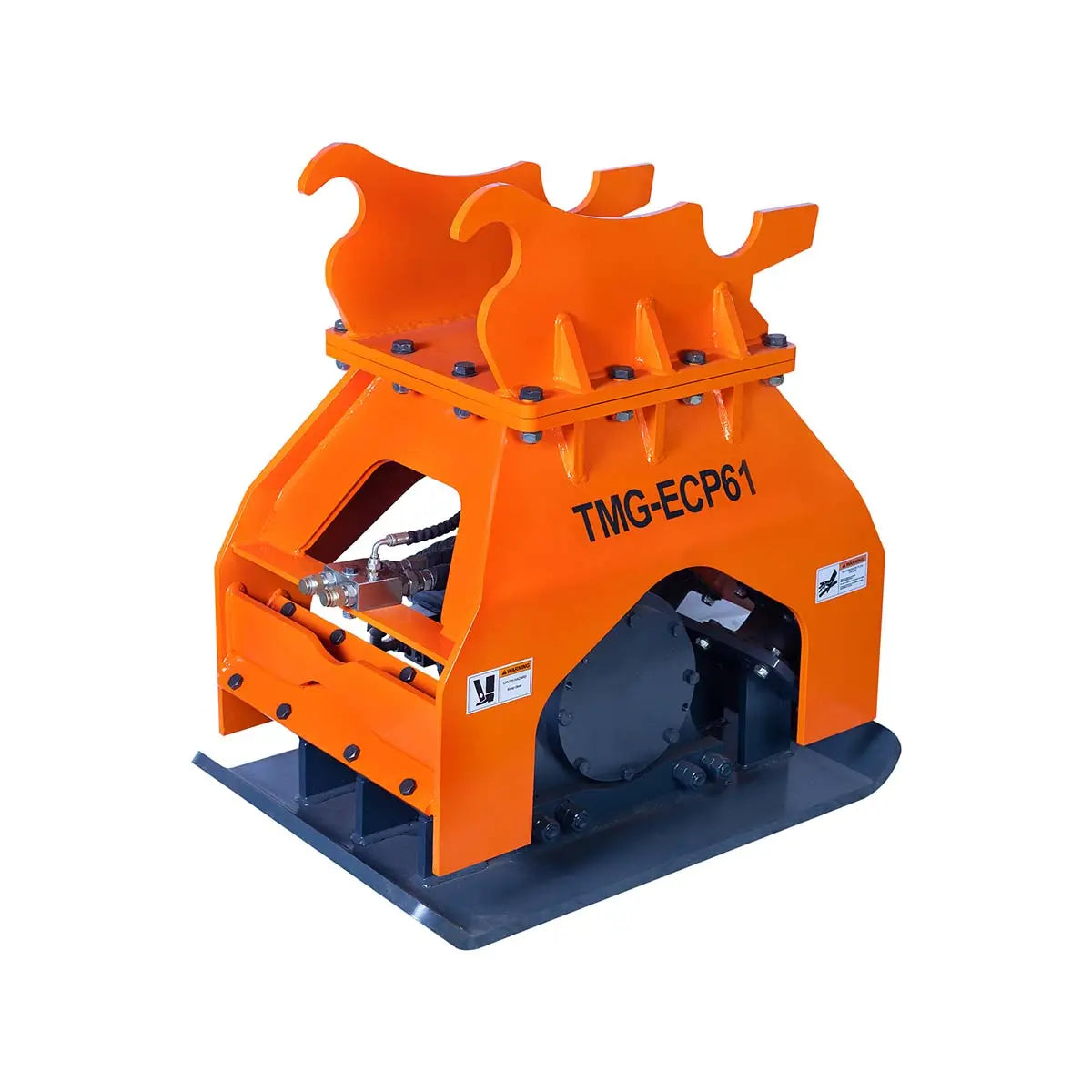

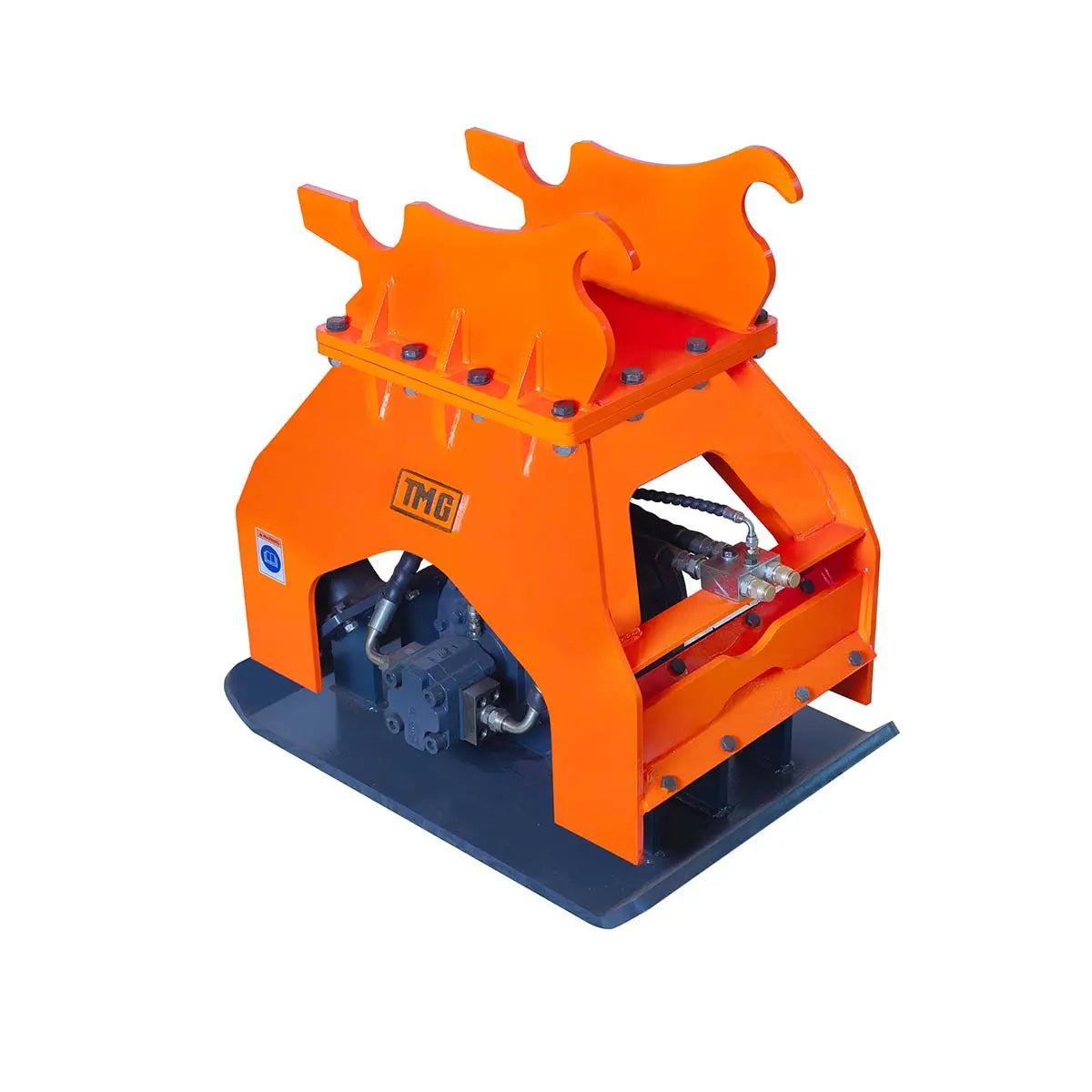

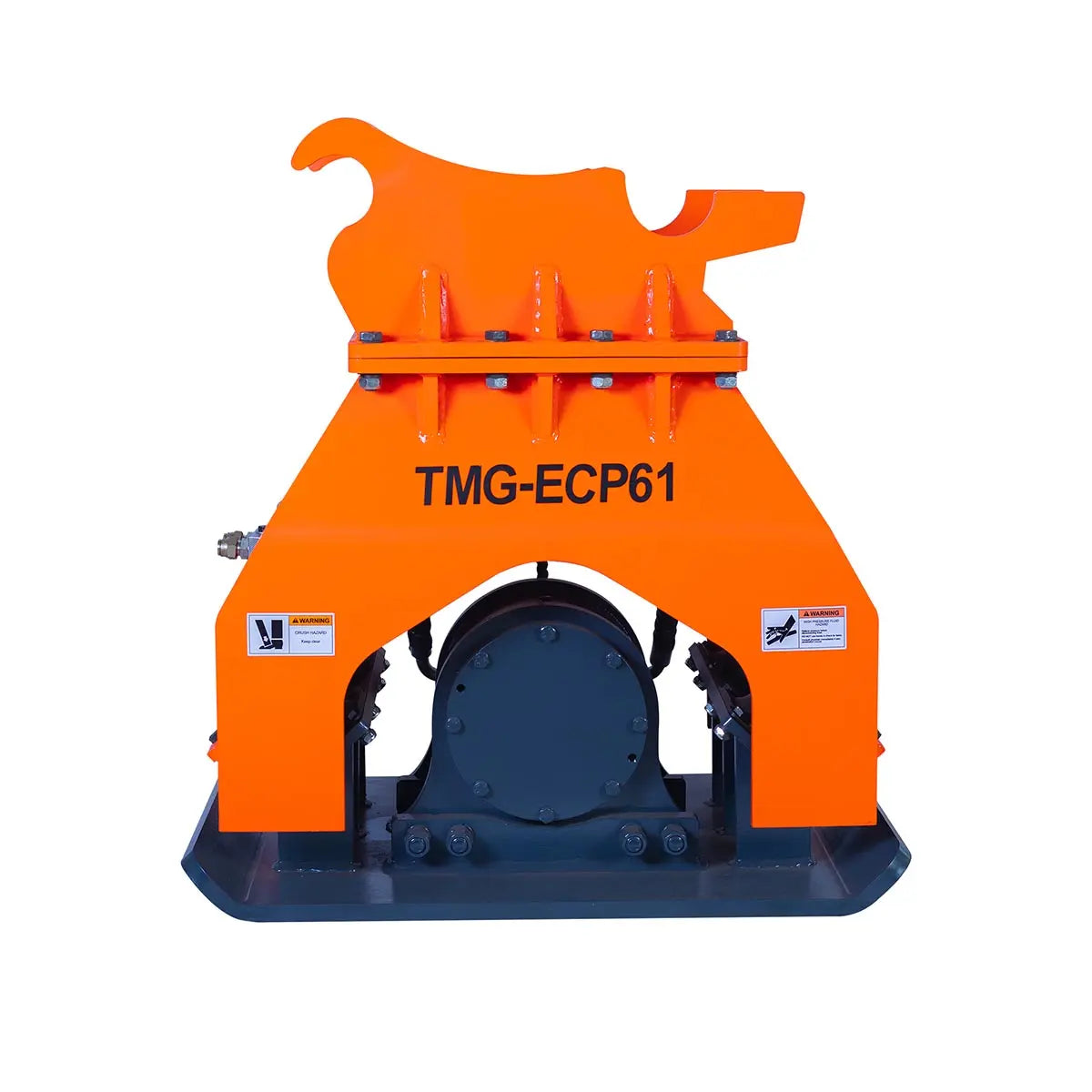

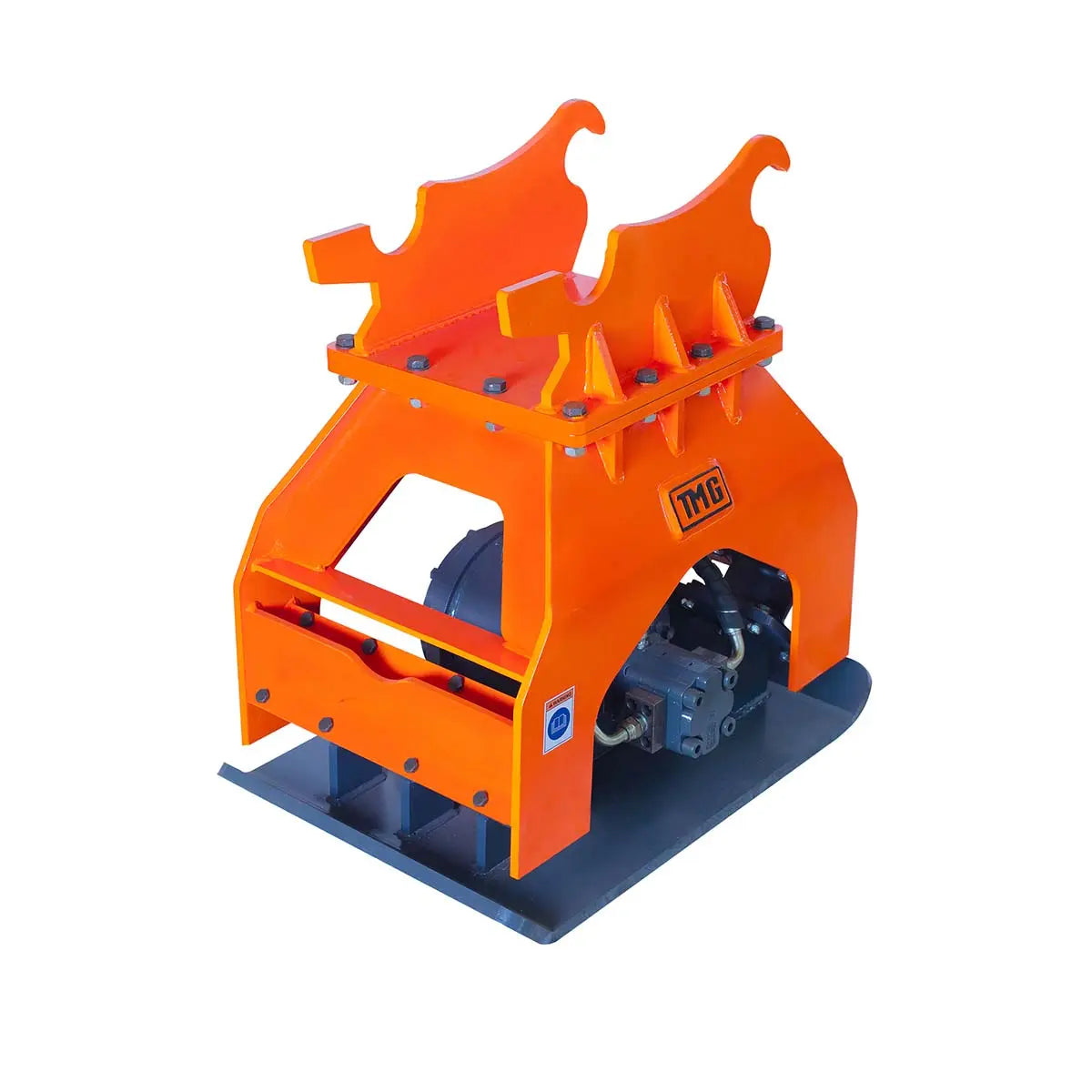

22,000-lbf Hydraulic Plate Compactor, 10-16 Ton Excavator Weight, 48" Compact Capacity, TMG-ECP61

22,000-lbf Hydraulic Plate Compactor, 10-16 Ton Excavator Weight, 48" Compact Capacity, TMG-ECP61

The TMG-ECP61 is a powerhouse capable of compacting soils, gravels and sands for projects needing stable, solid grounds to work and build on. Any sort of bituminous or granular materials are simply no match for the 22,000 lbf of impulse force and effective compaction depth up to 48". The ideal solution for construction sites, roads, foundations and any other tight footing and road preparatory needs.

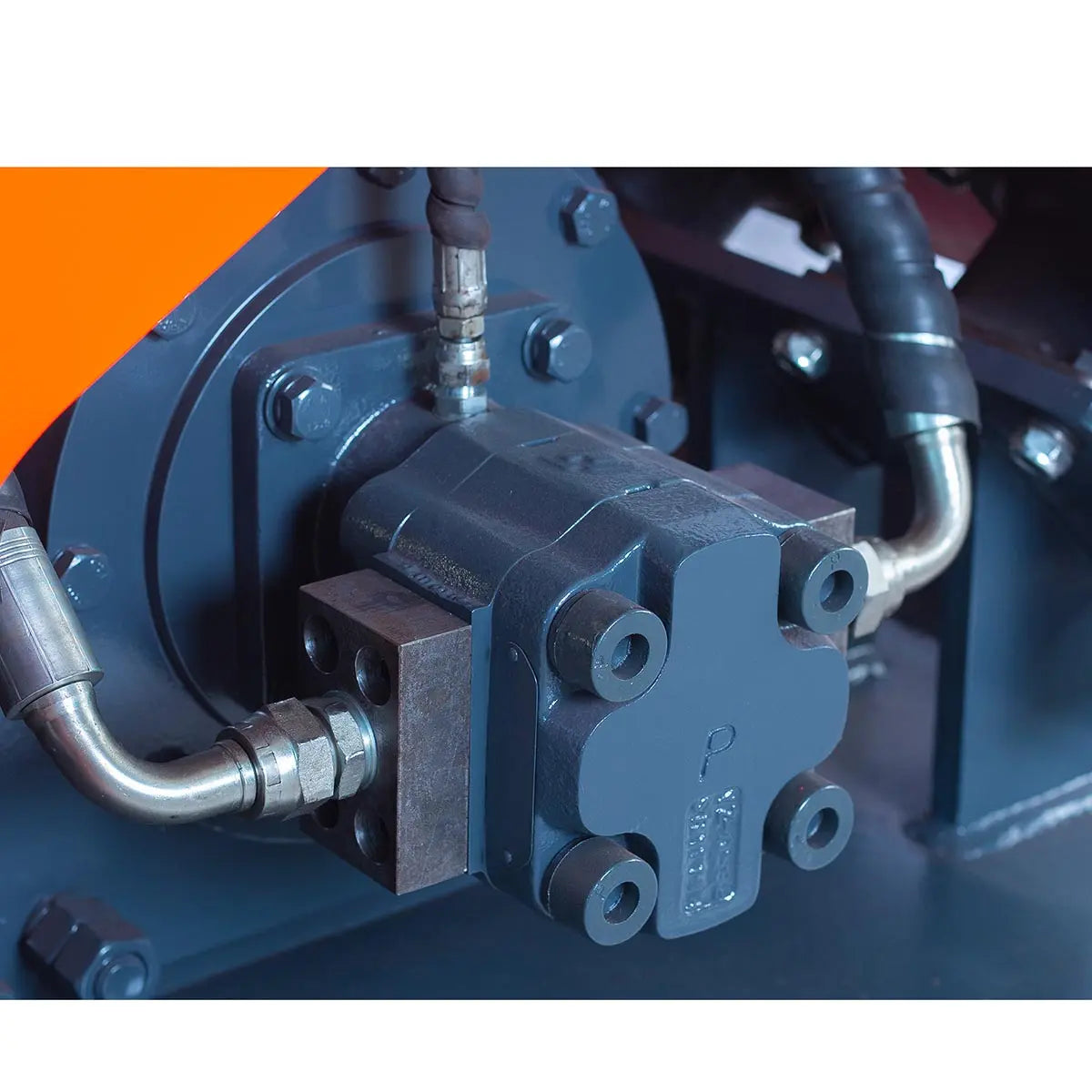

Compatible with 10-to-16-ton carriers and fitted with an easy-to-use quick change lugging design that keeps workflow running smoothly and efficiently. Motor is housed in a heavy-duty steel frame that is semi-open to allow for easy maintenance while still providing superior protection of its vital components. Included high pressure hydraulic hoses offer a simple hookup and disconnect as well as efficient energy transfer from your excavator to the compactor.

Eccentric weight vibration has been engineered for optimal soil compaction that translates to an 85% compaction density at 30" depth. Industrial grade rubber cushion isolates reverberations from reaching the boom, motor and bearings of the carrier ensuring minimal wear and tear and maximum force into the ground. An overload valve shutoff keeps the motor within its working range to prevent damage and extend the compactors lifespan.

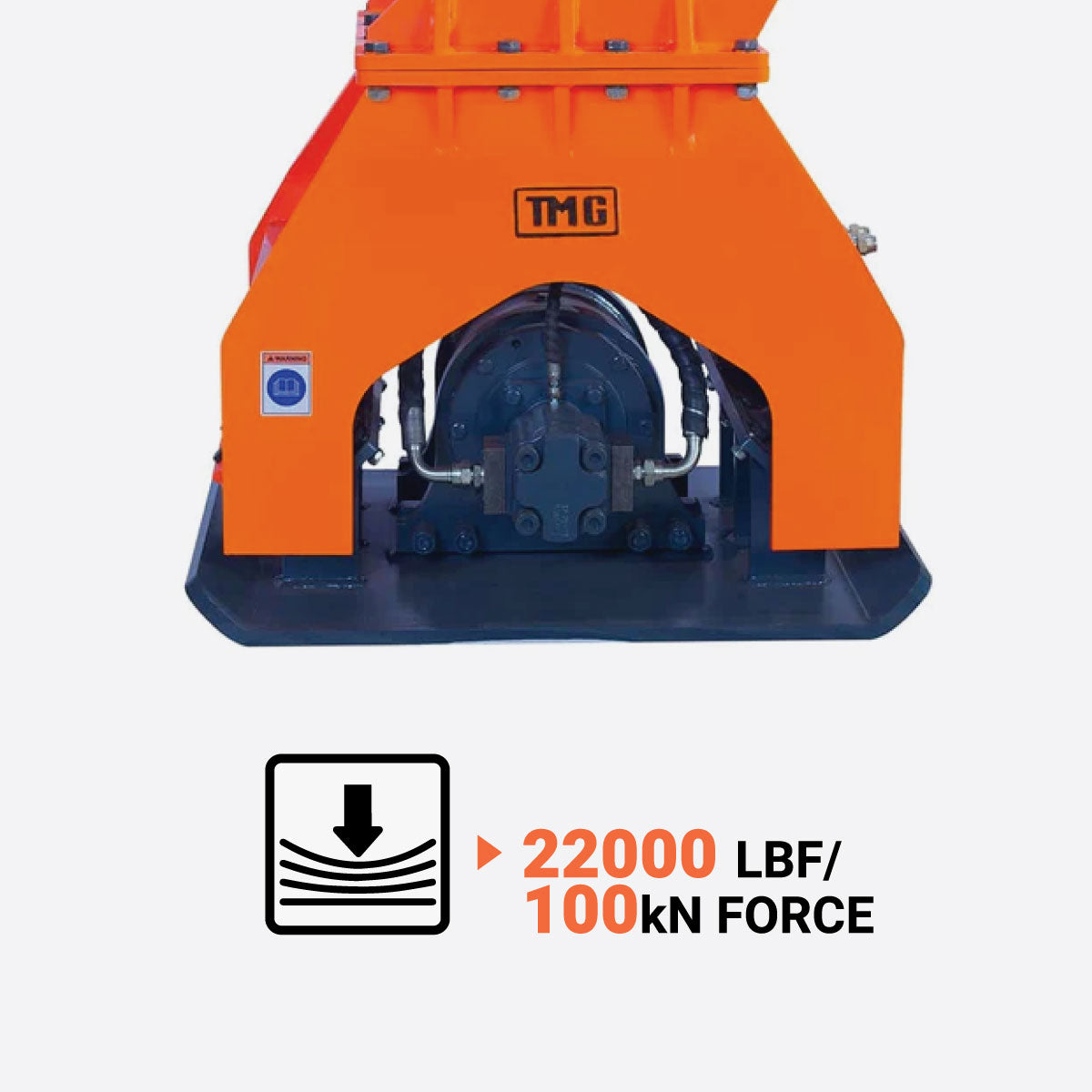

Delivers 22,000 lbf (100 kN) of impulse force for effective soil compaction

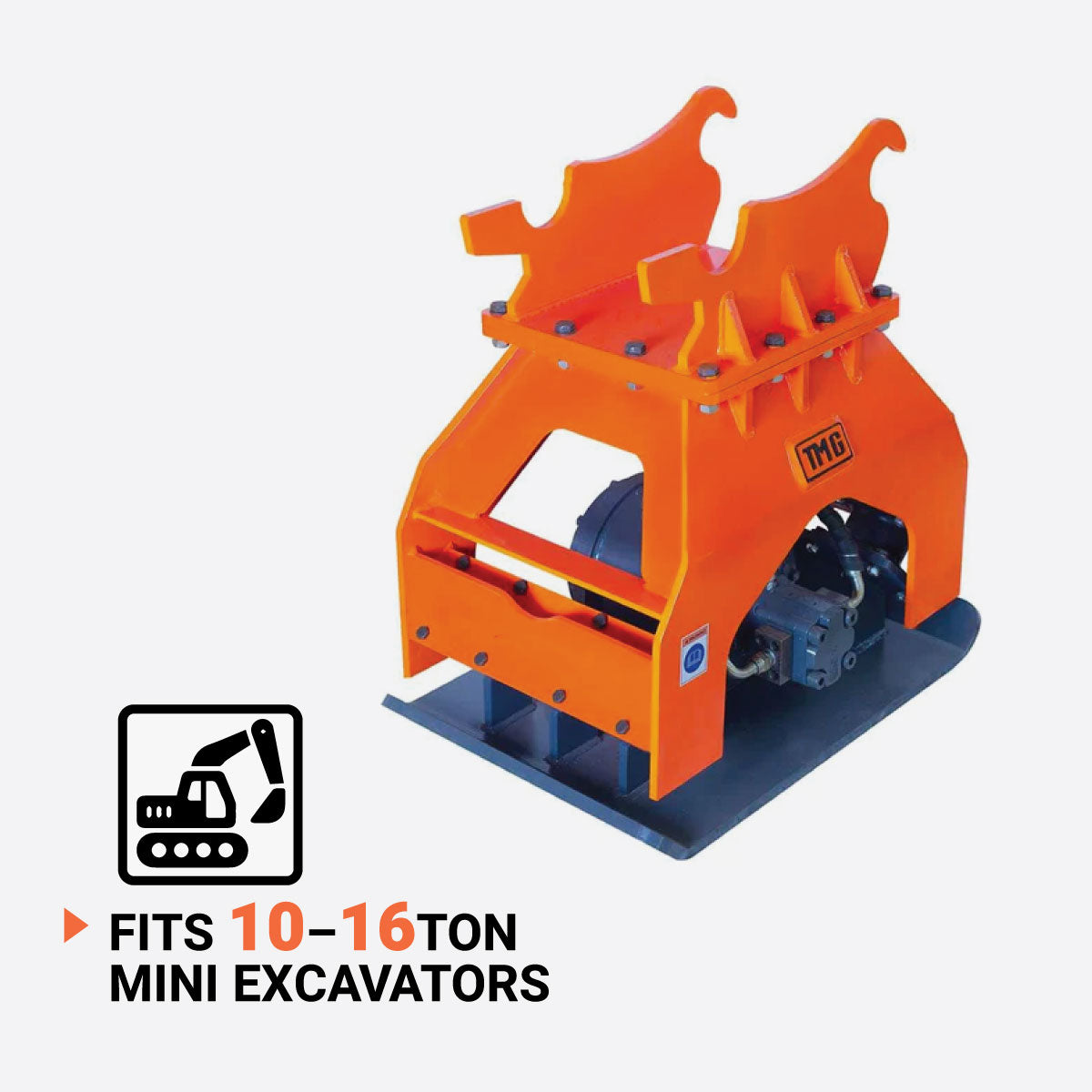

Designed for 10–16 ton excavators

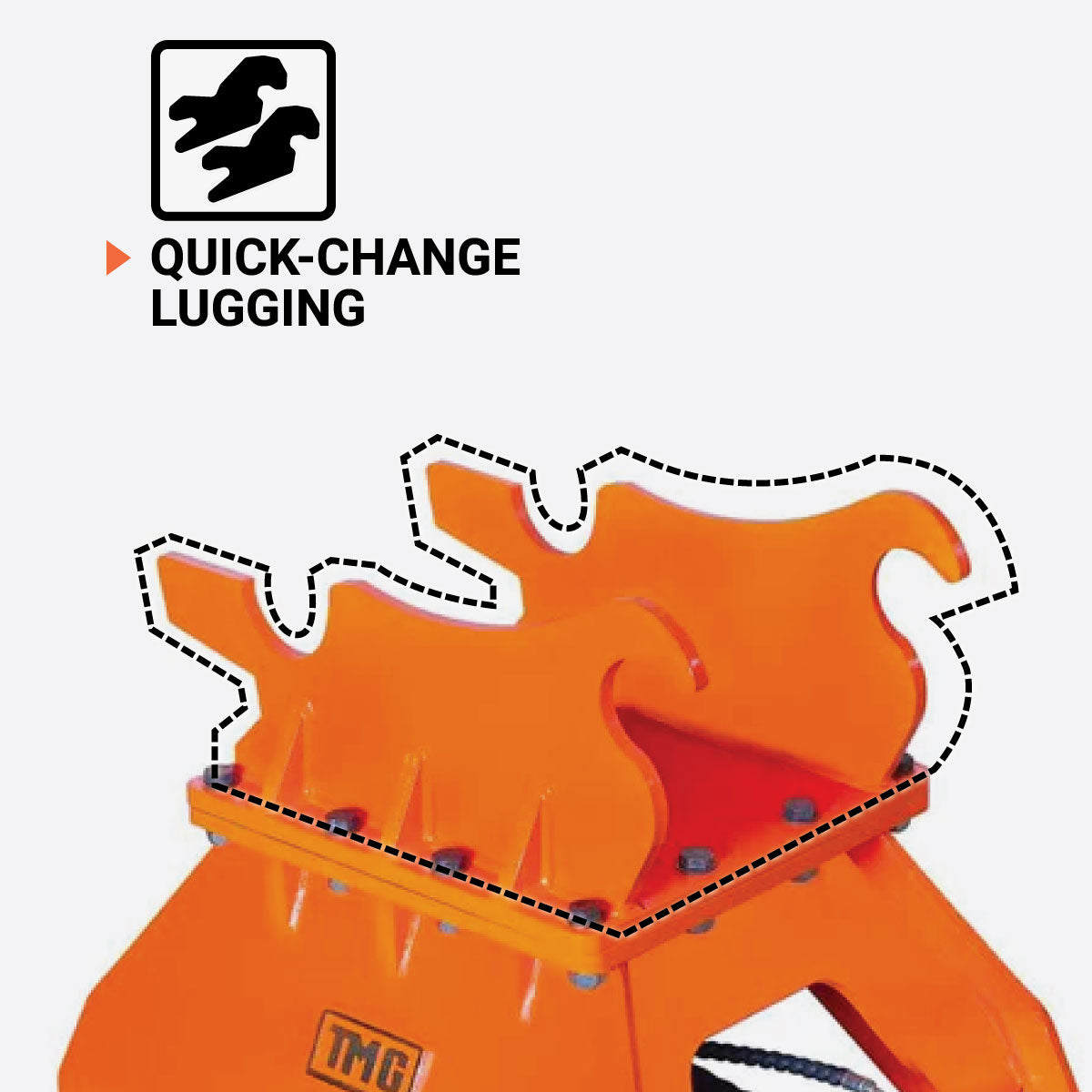

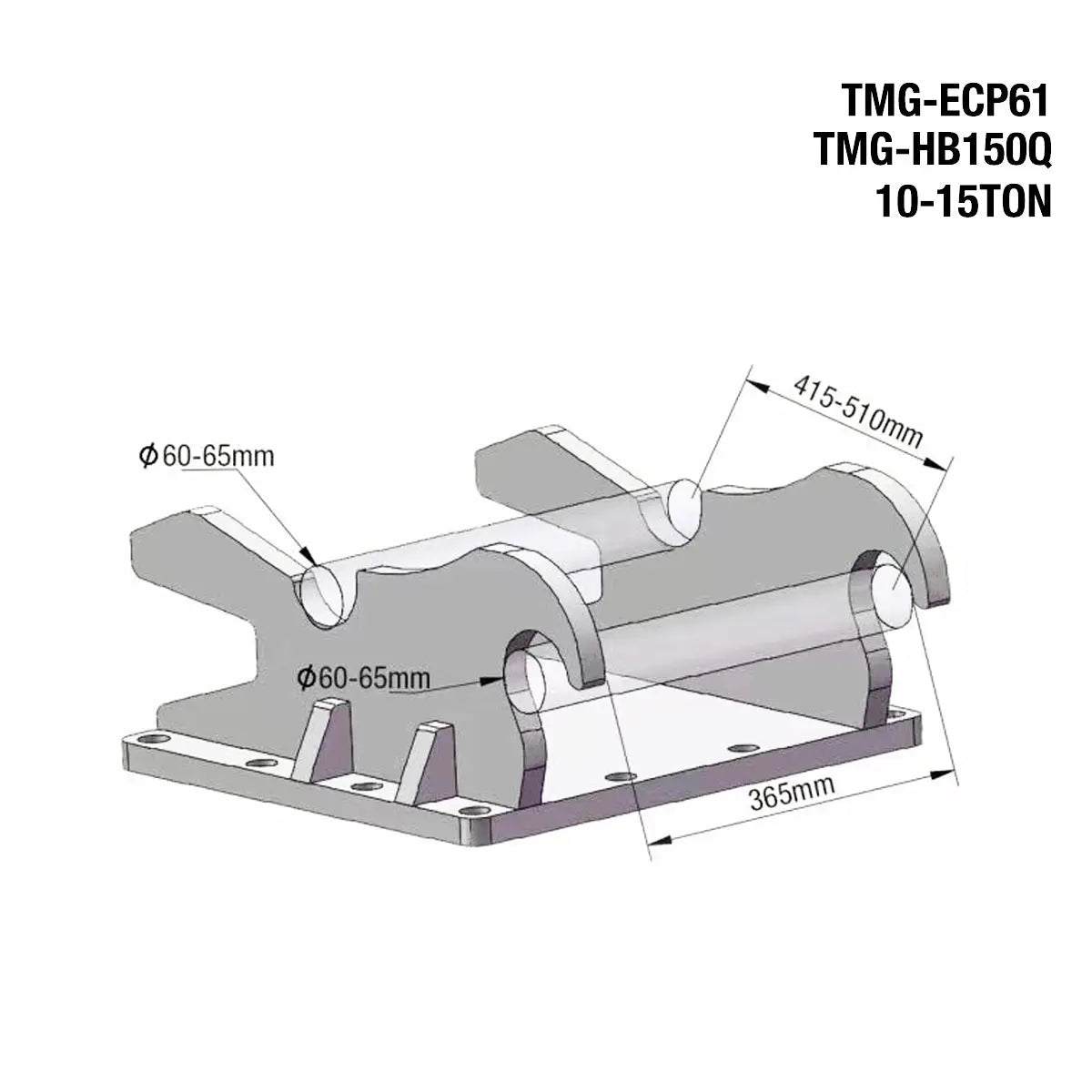

Quick-change Lugging Mount works with couplers for easy attachment change

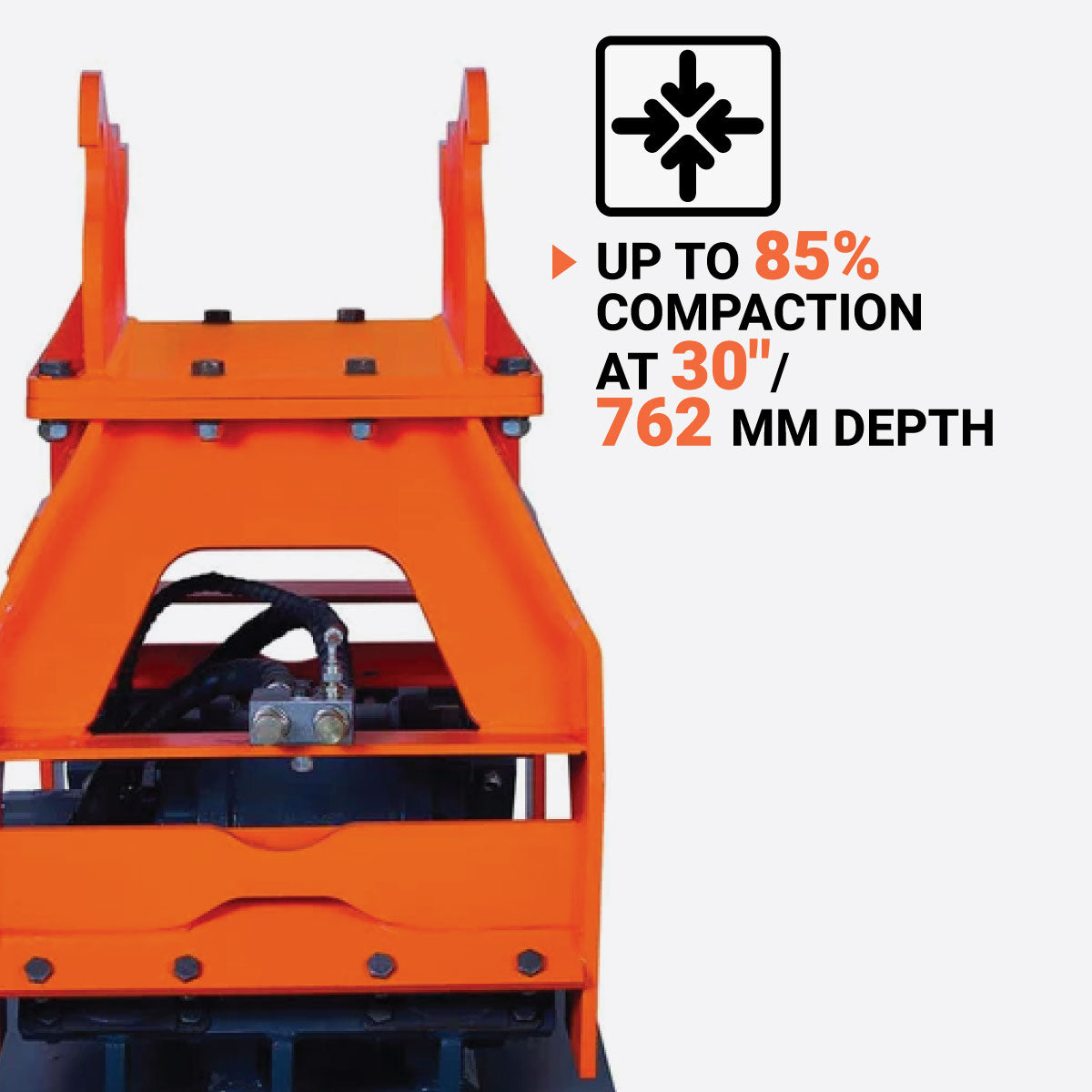

Achieves up to 85% compaction density at 30" / 762 mm depth

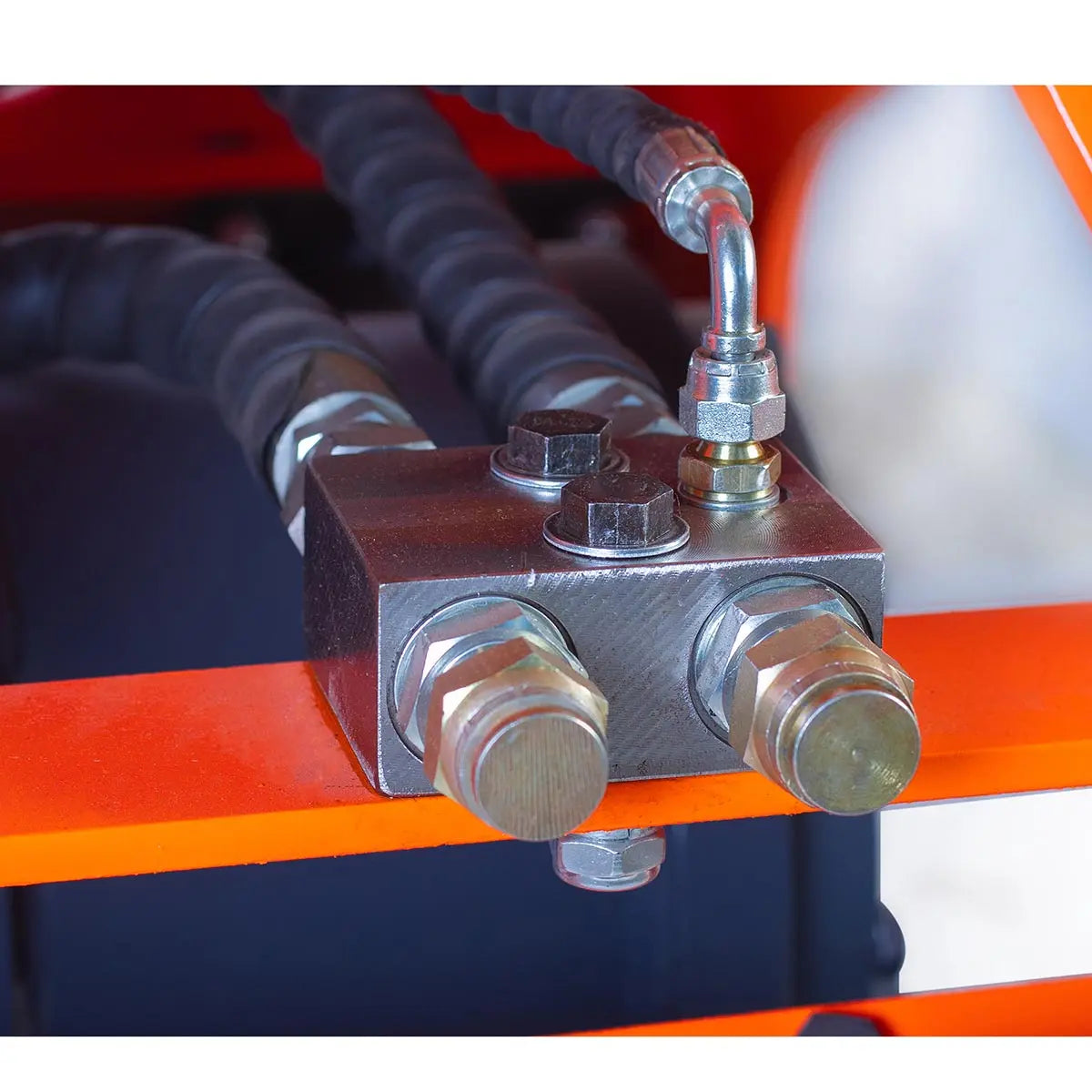

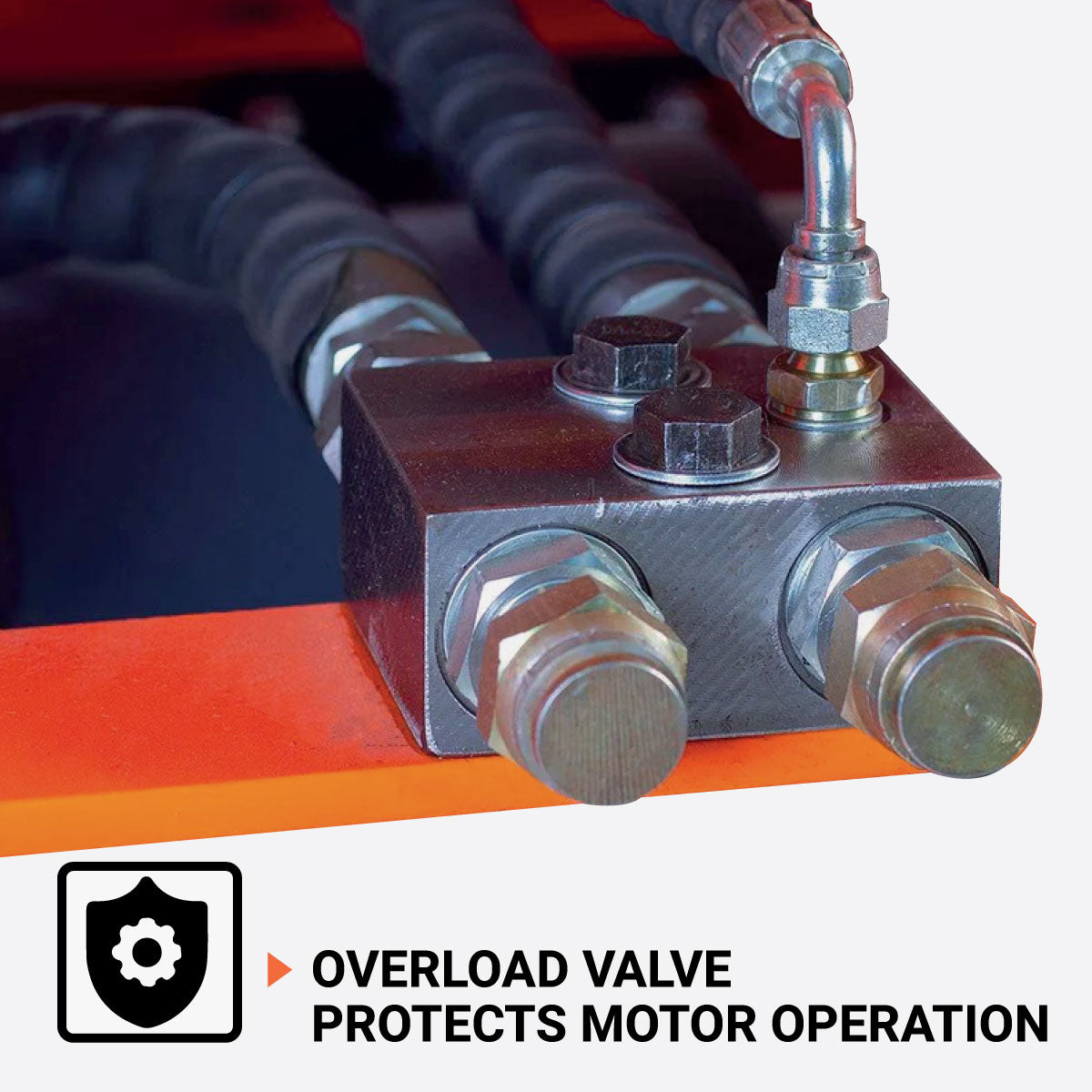

Overload shutoff valve maintains motor within safe operating range

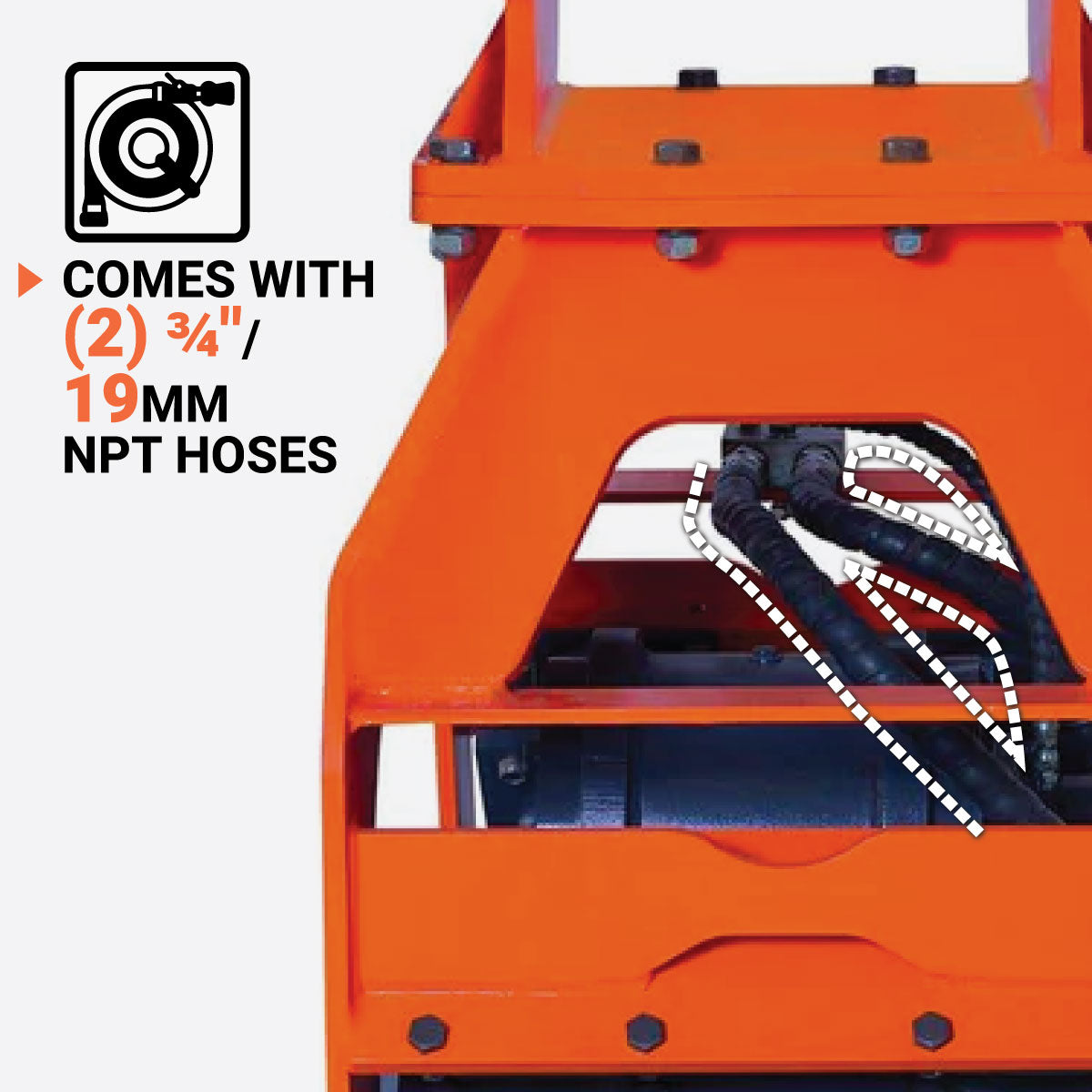

Includes two ¾” / 19 mm NPT high-pressure hydraulic hoses for easy connection

Specifications

• Compaction force: 22,000 lbf
• Compaction depth: 37"-48"
• Exciter frequency: 2000 RPM
• Hydraulic flow: 23-28 GPM
• Working pressure: 1450-2175 PSI

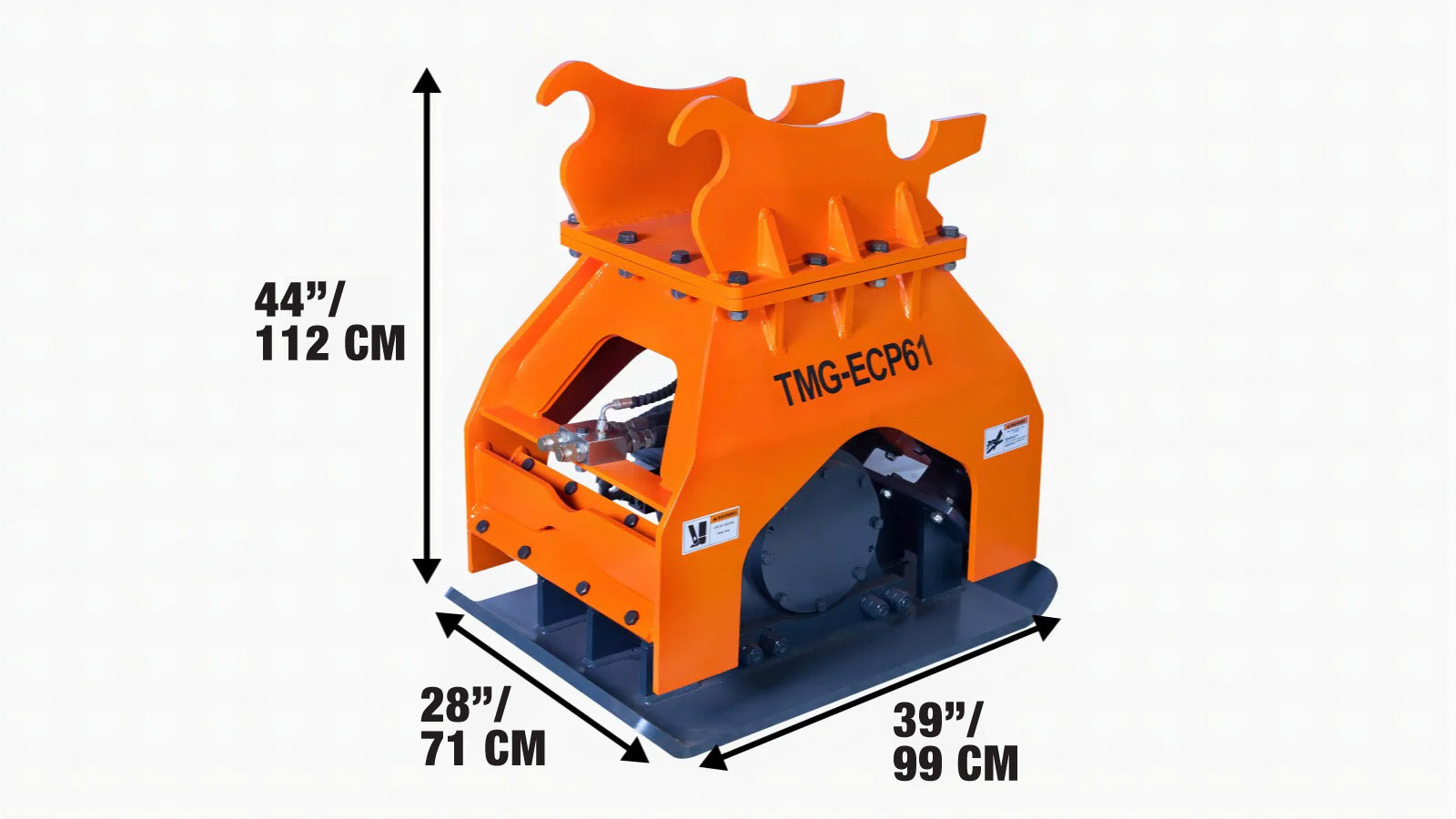

• Bottom plate: 39” x 28”
• Carrier weight: 22,000 -32,000 lb, 10-16 ton
• Soil compaction effective depth: 37”–48”
• Compaction density: 85% at 30”
• (2) ¾" NPT thread high-pressure hydraulic hoses include

Shipping Information

The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

• This product is packed in a metal crate shipping box
• Shipping dimension: 45” x 32” x 48” (L x W x H)
• Shipping weight: 1680 lb
