Firewood Log Splitter Processor Conveyor, 15" x 23" Log Capacity, 14 HP Kohler Engine, 18" STIHL Chainsaw, TMG-GLS20

Firewood Log Splitter Processor Conveyor, 15" x 23" Log Capacity, 14 HP Kohler Engine, 18" STIHL Chainsaw, TMG-GLS20

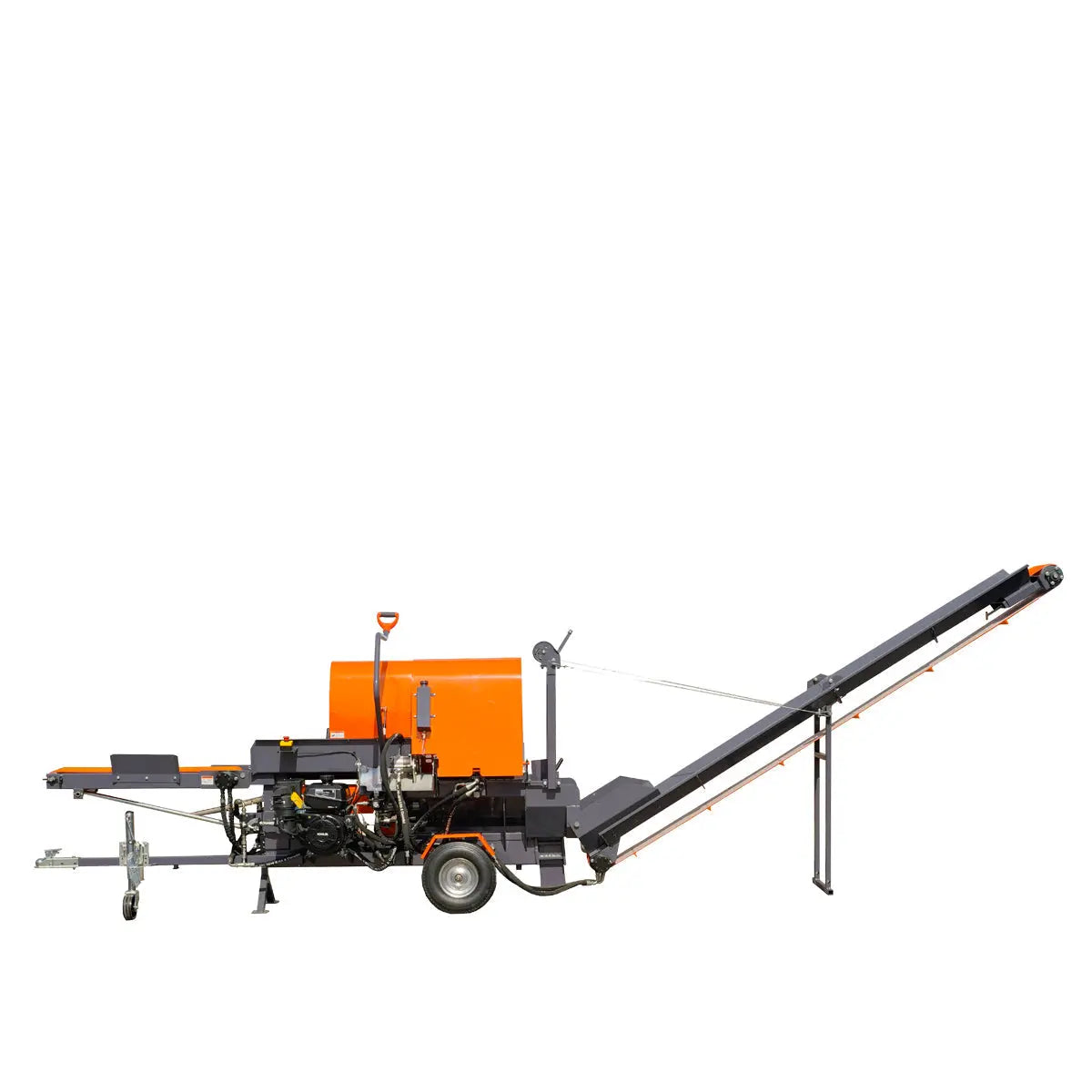

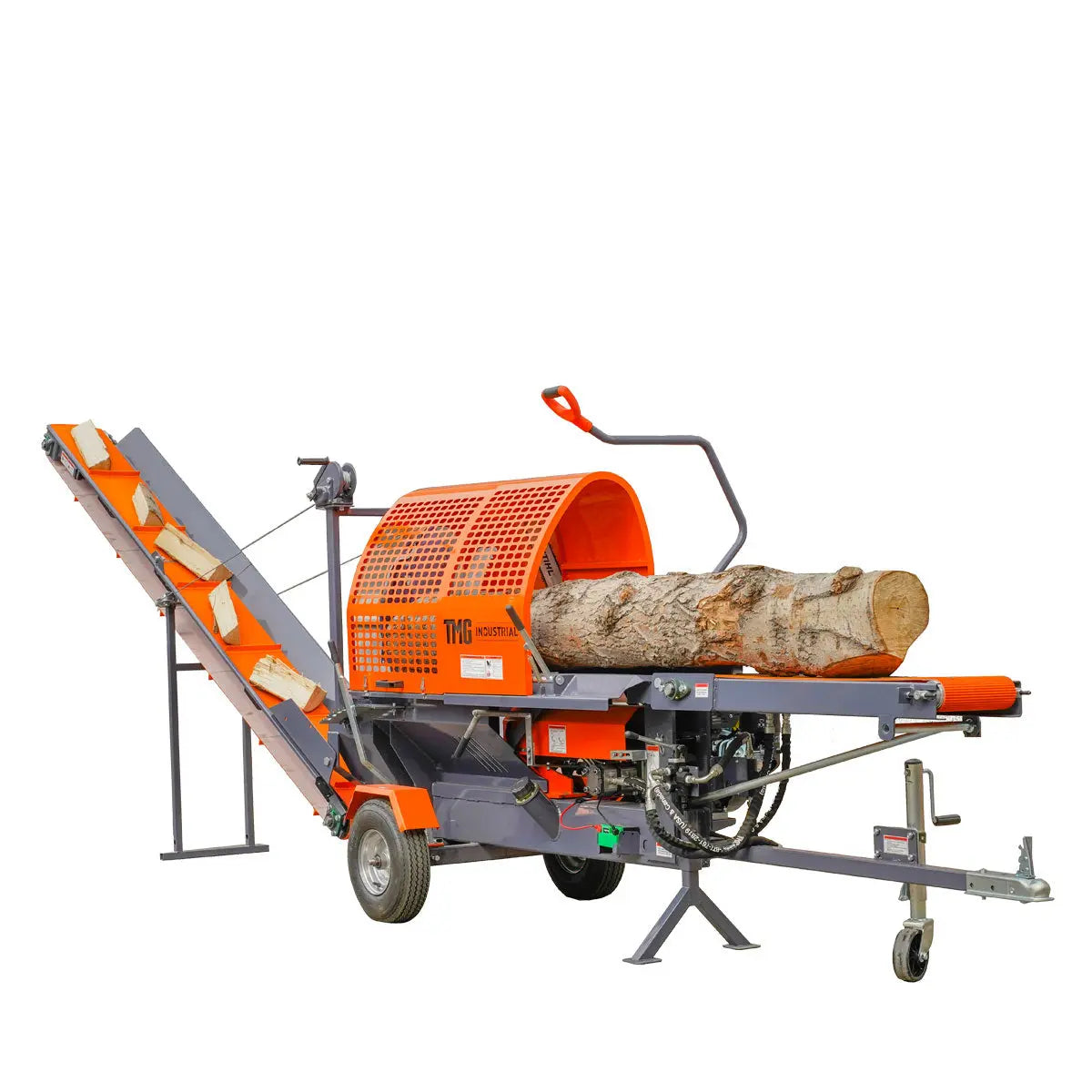

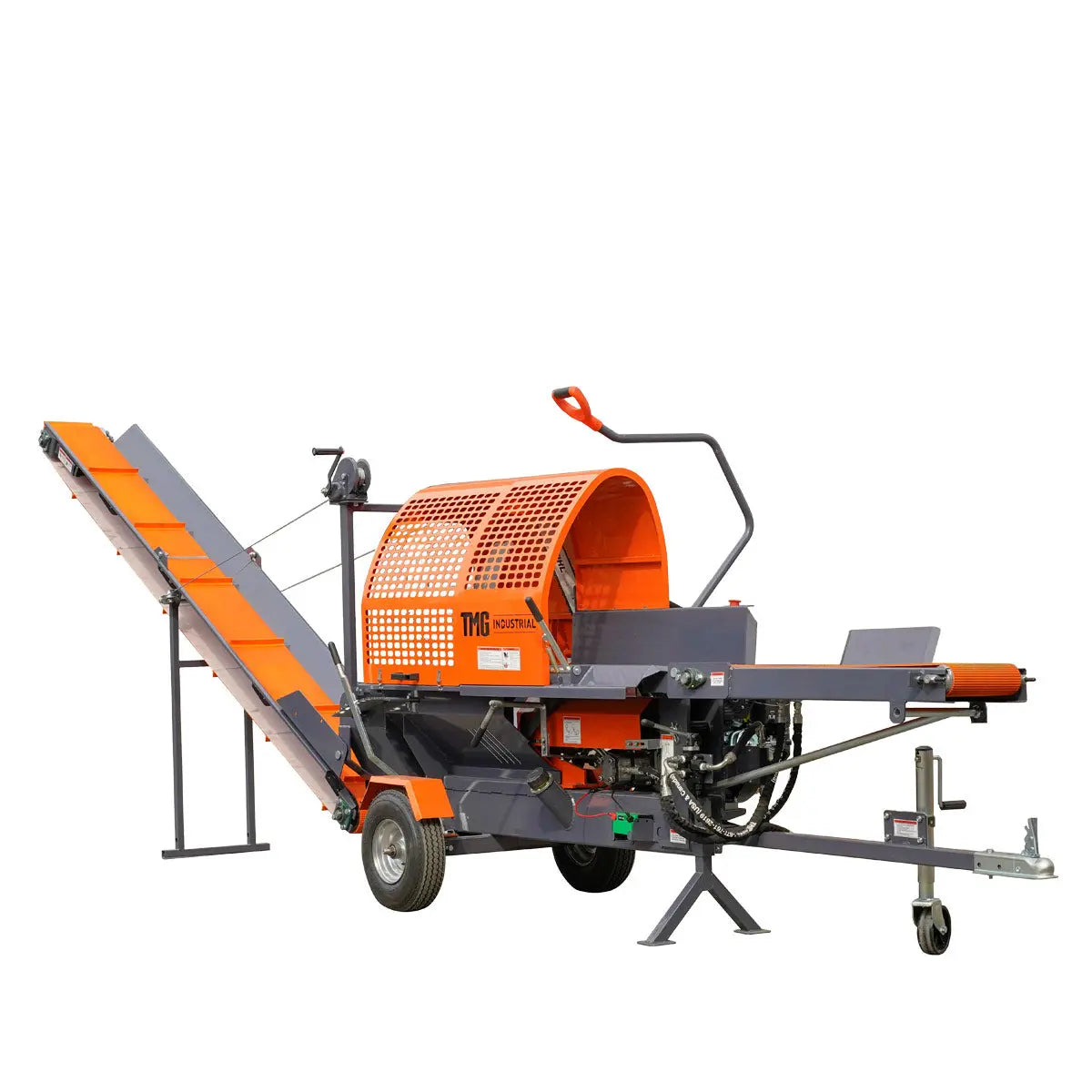

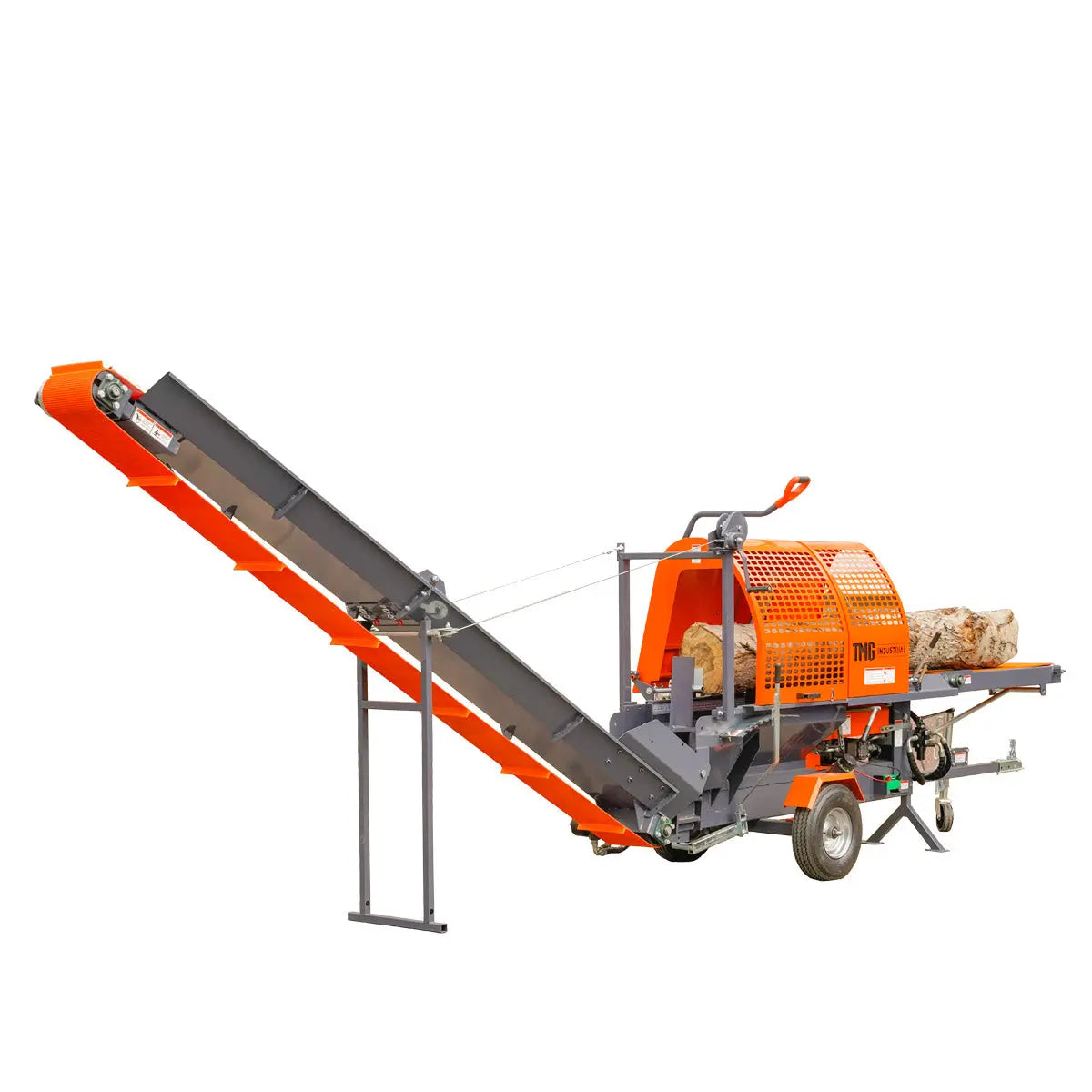

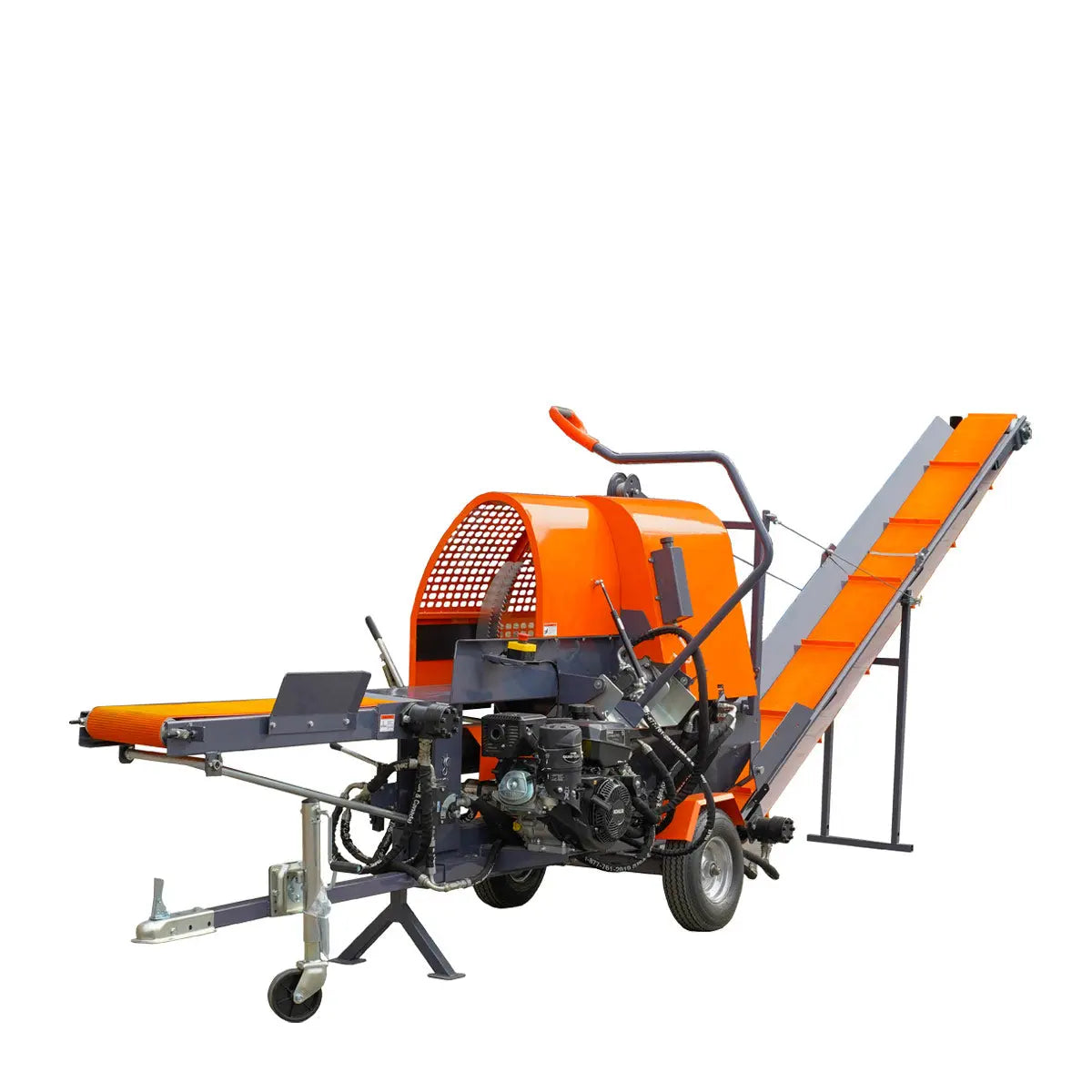

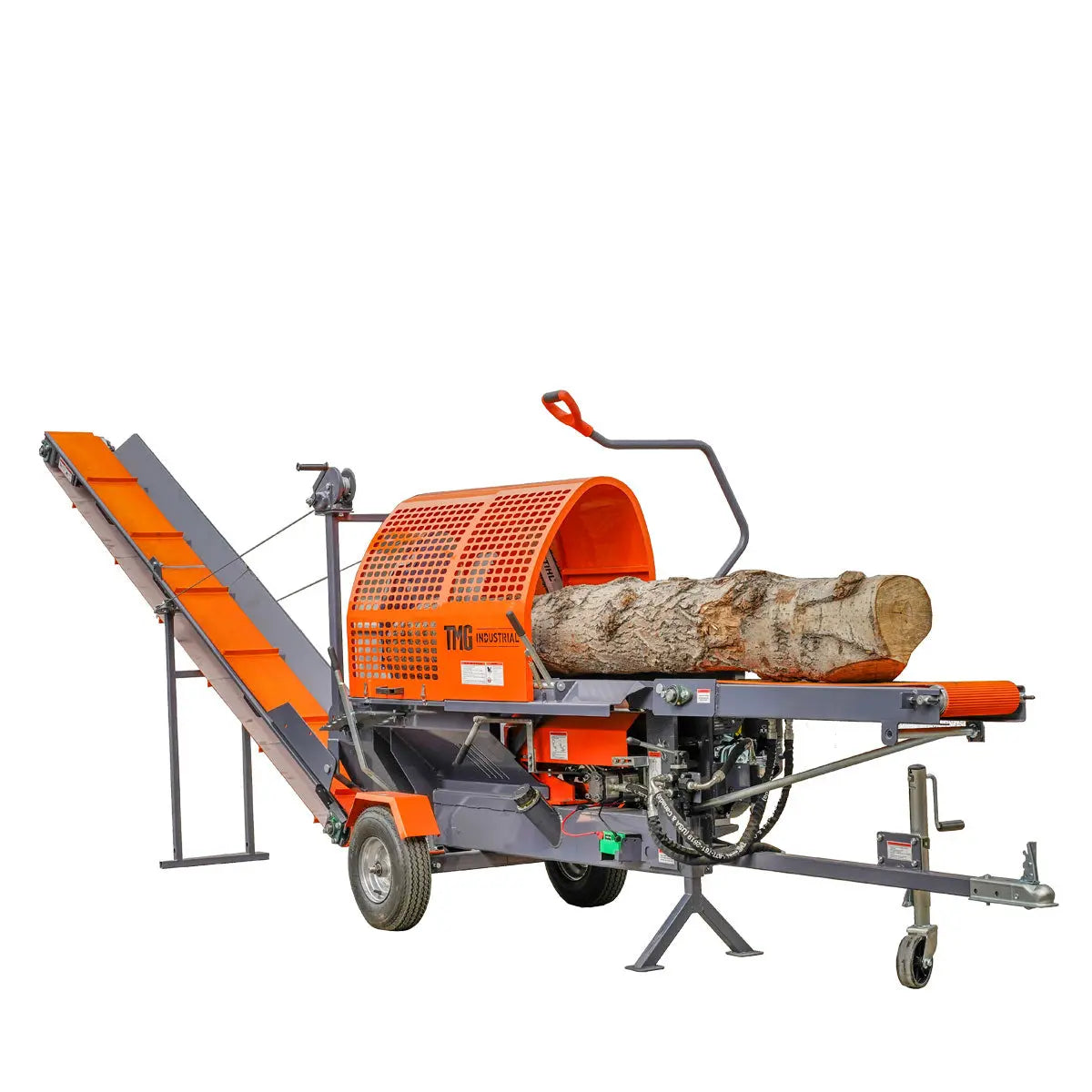

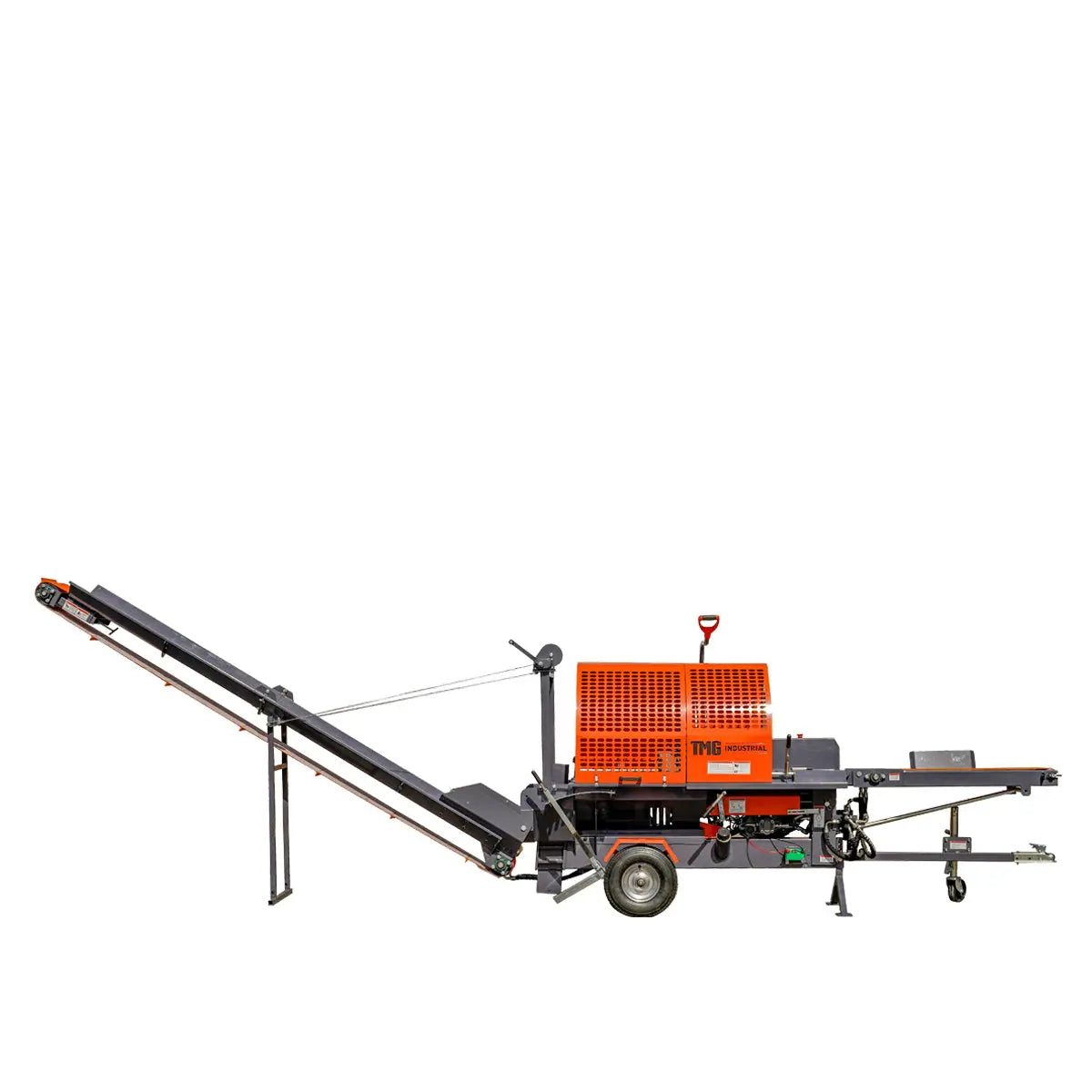

The TMG-GLS20 Firewood Processor w/Foldable Conveyor is powered by a reliable 14 HP Kohler Command Pro Series Engine and designed to handle all your firewood processing needs with ease and efficiency. It delivers consistent heavy-duty performance, a robust build, and optimized safety features, making it a top choice in the market for professionals and enthusiasts alike.

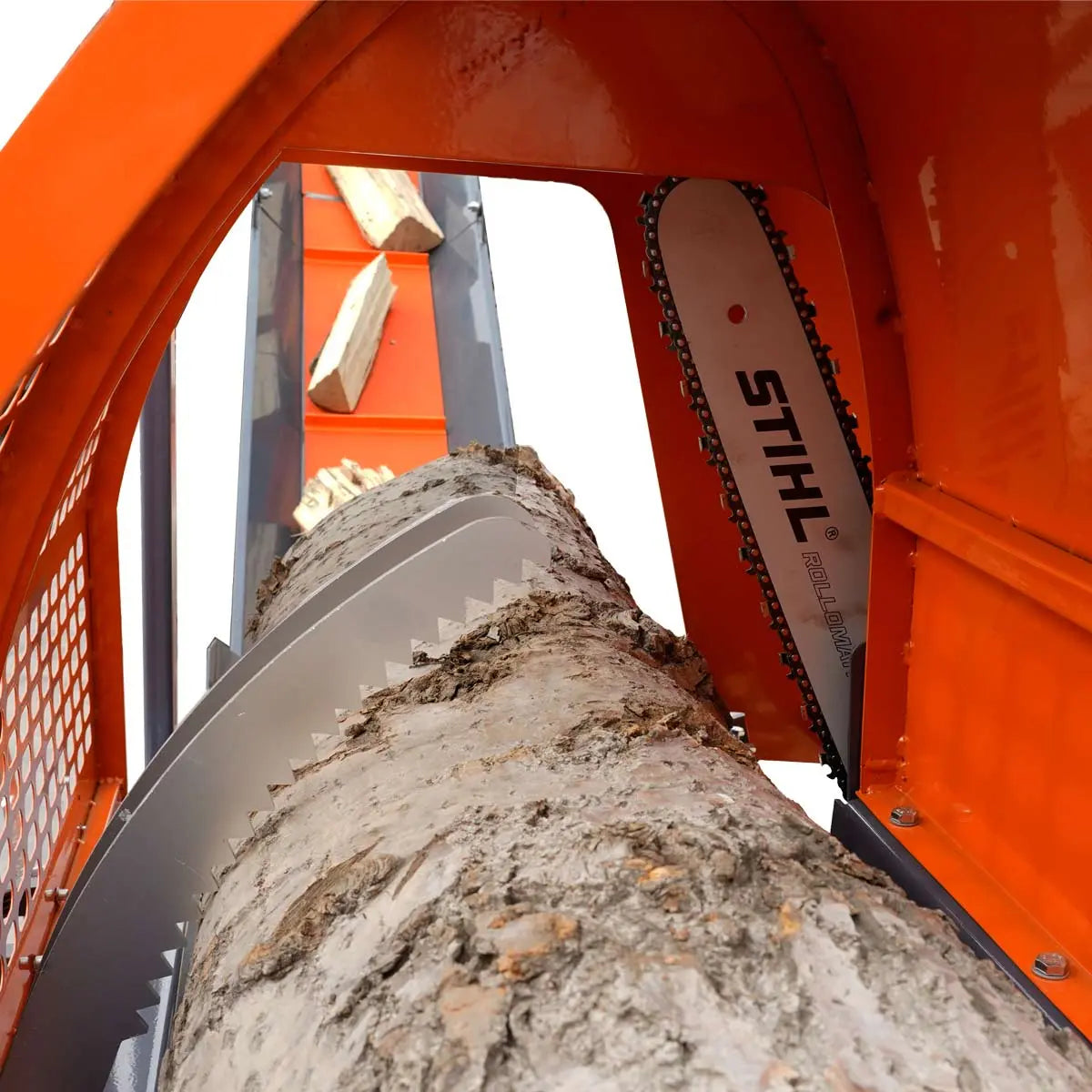

Equipped with a hydraulic-driven bar 18" chainsaw bar that works effortlessly to cut through logs up to 15" in diameter. With a splitting force of up to 20 tons and a maximum splitting length of 23", this firewood processor can meet your every need. Also featuring an innovative 2-4 way splitter that allows you to accommodate raw timber of varying sizes, and produce finished logs 2 or 4 at a time.

Moving it is easy thanks to the 2" coupler, trailer jack, and foldable output conveyor, which ensures easy storage and transportation. A metal splitting cage, emergency shut-off switch, and Oil Sentry™ feature which automatically shuts down the engine in low-oil conditions all serve to enhance the safe operation of this powerful piece of equipment.

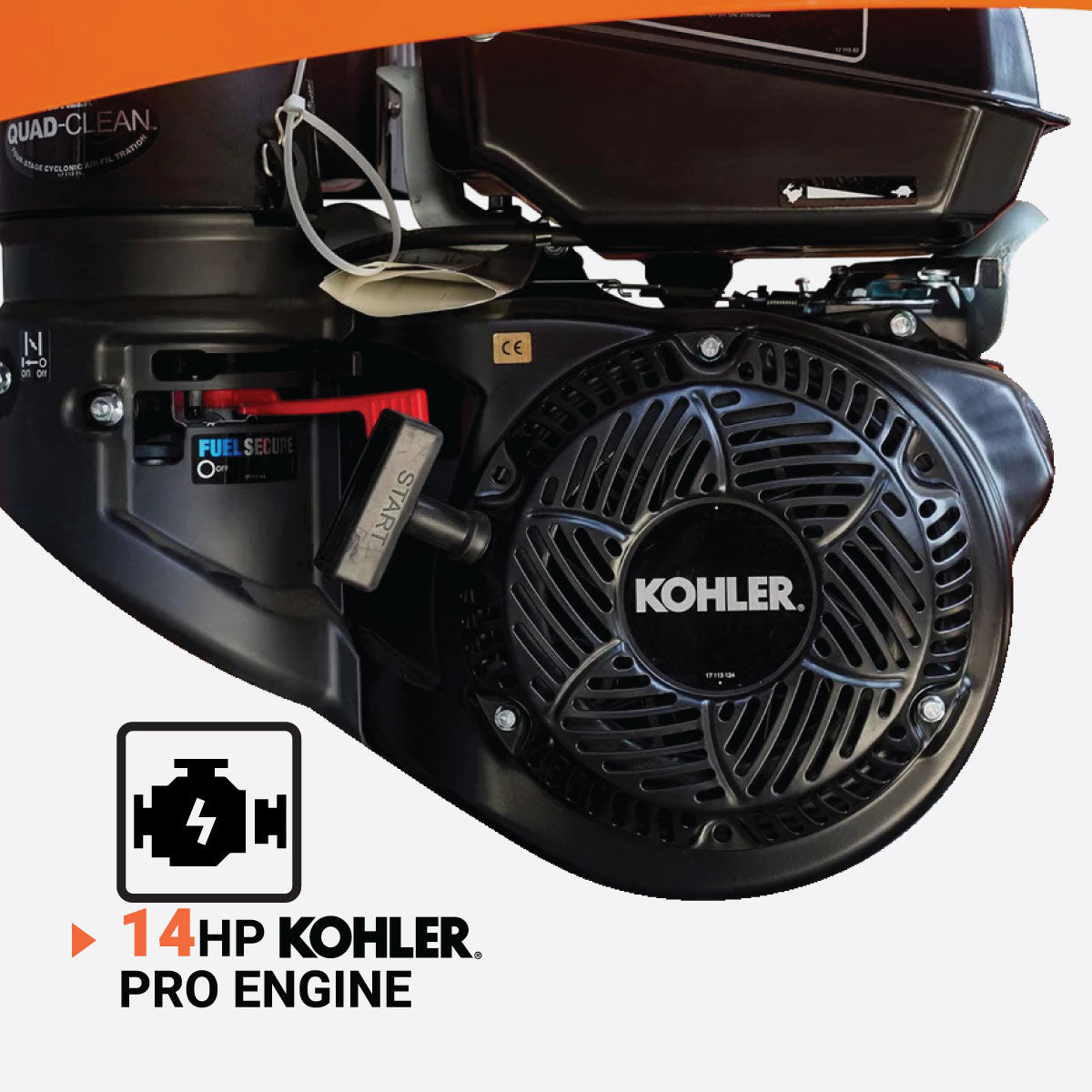

14 hp Kohler engine delivers consistent 20‑ton splitting force

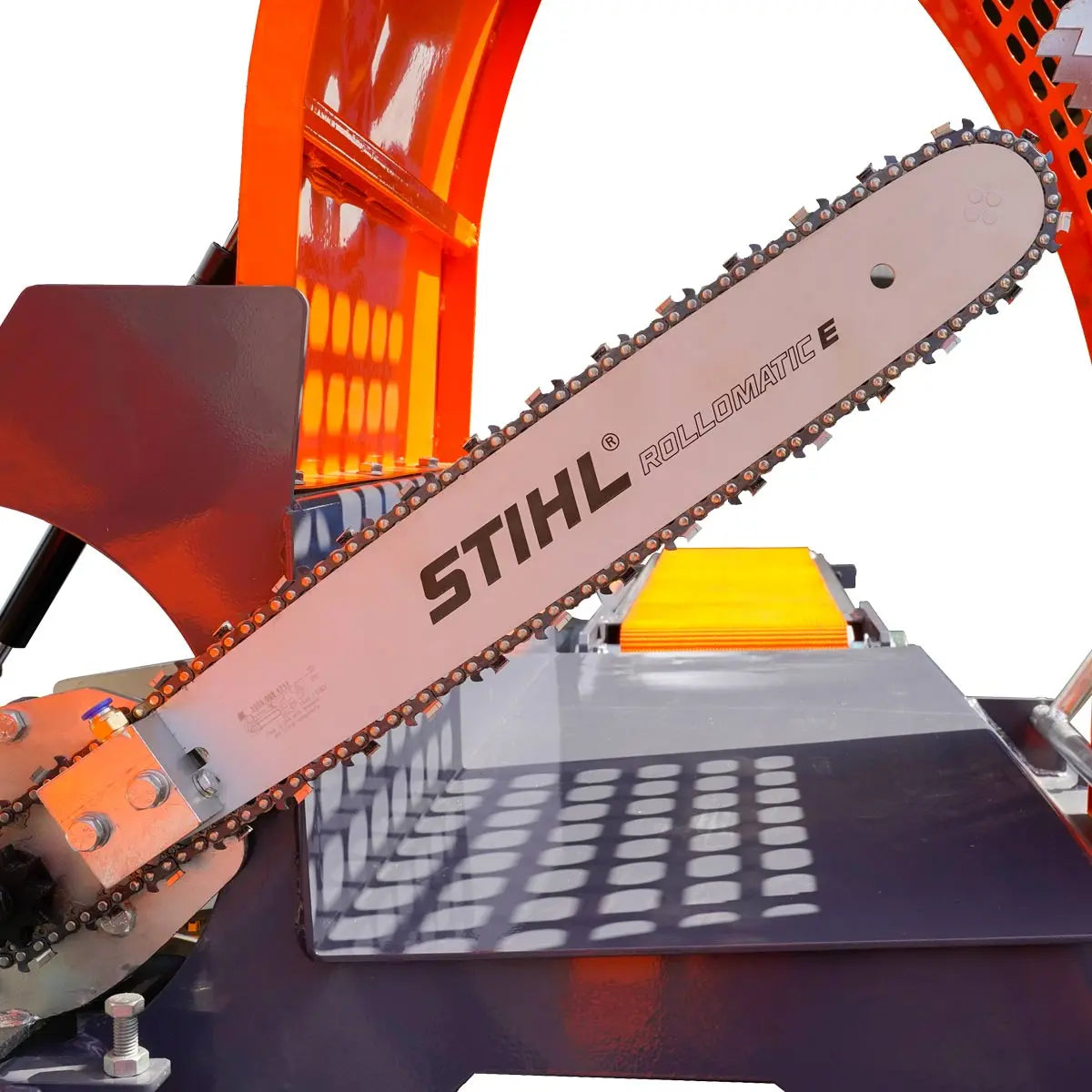

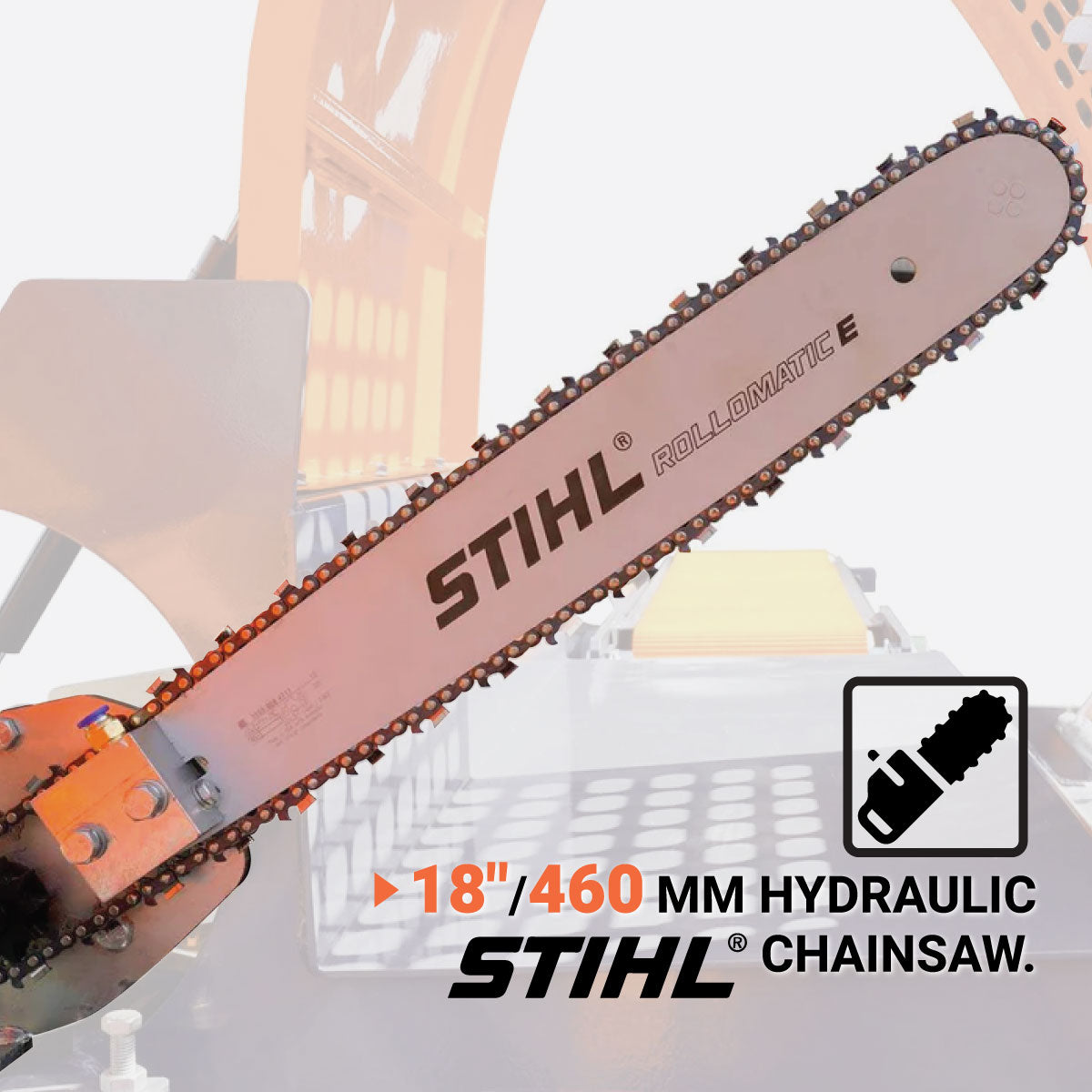

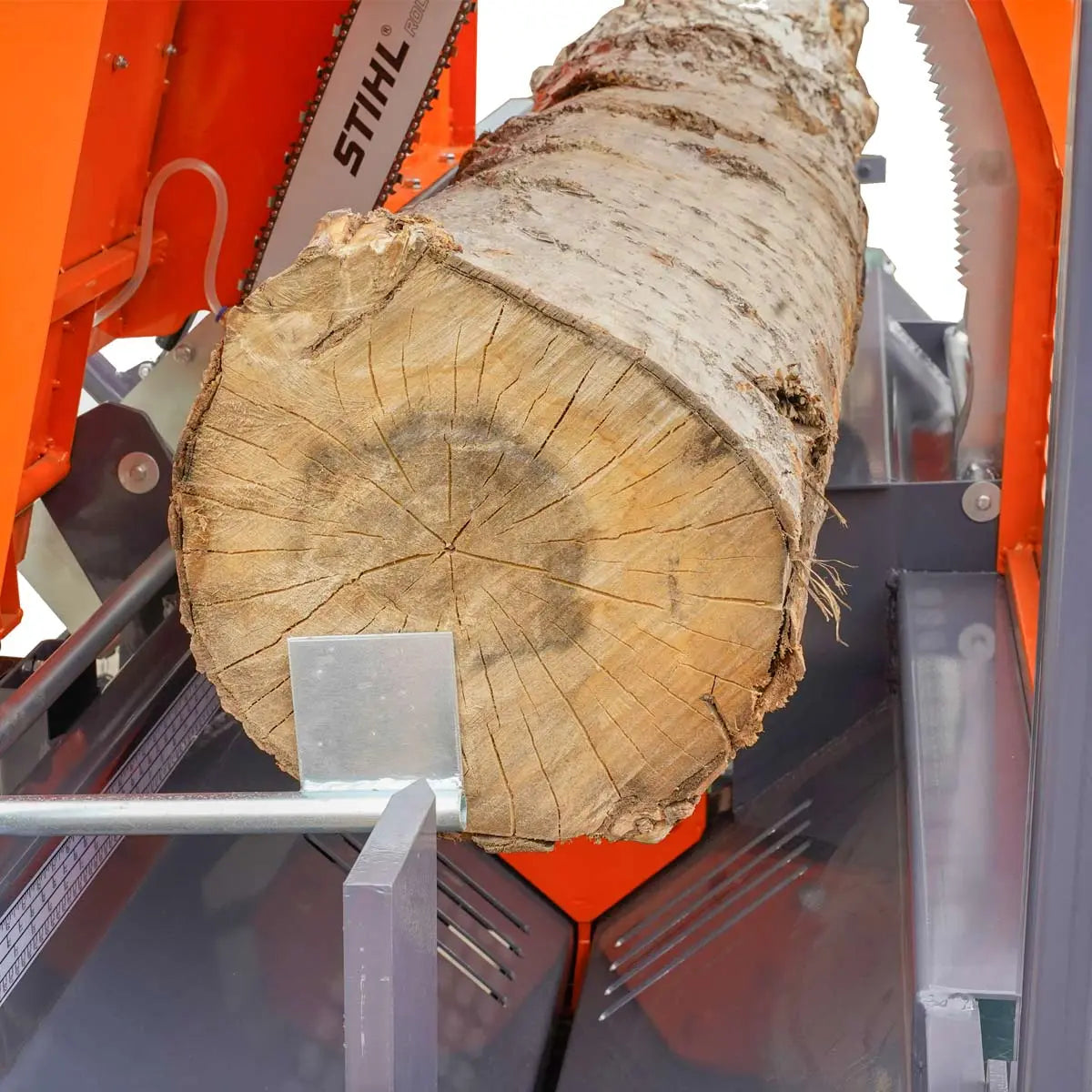

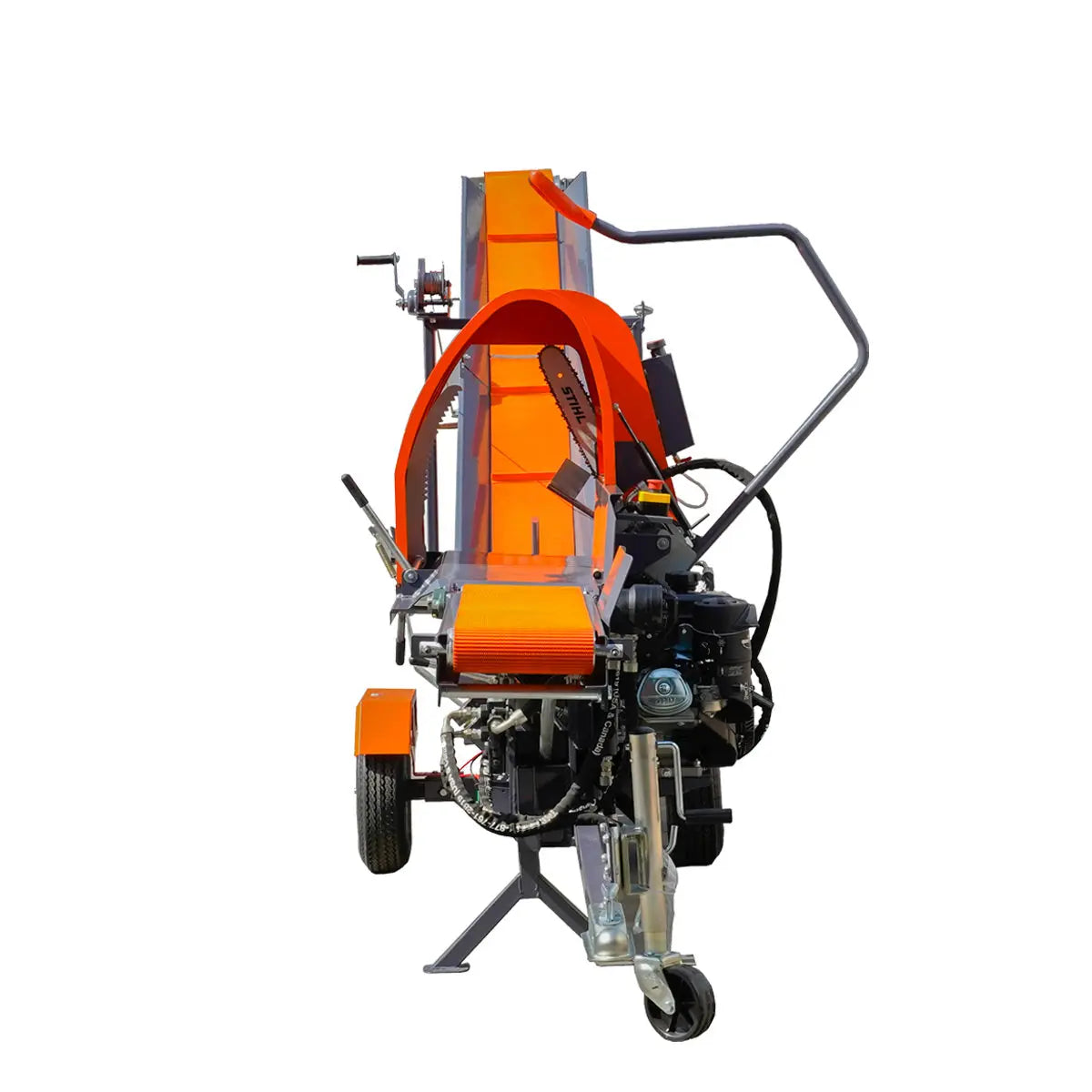

Hydraulic 18"(460 mm) STIHL chainsaw

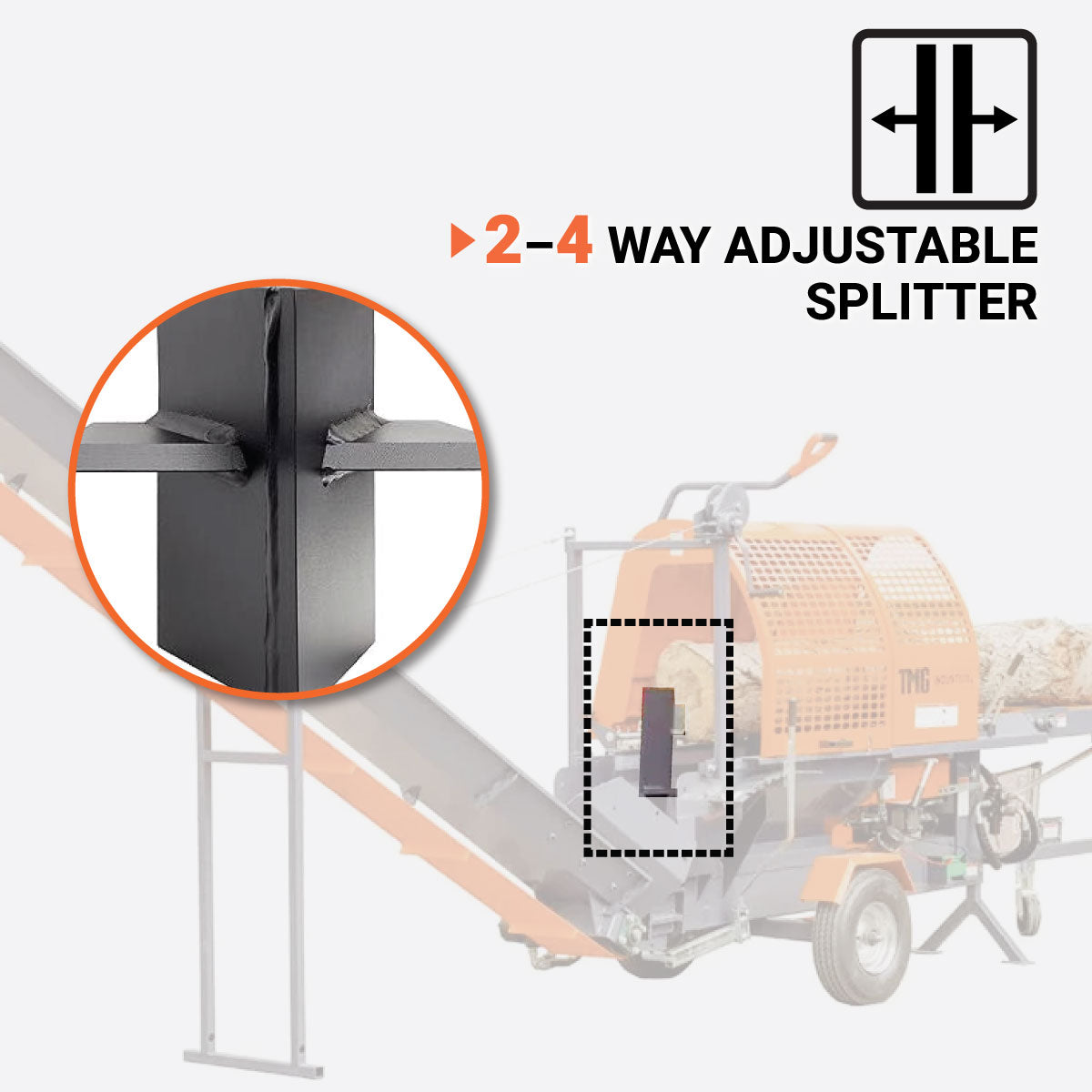

Adjustable 2-4 way splitter accommodates different wood sizes

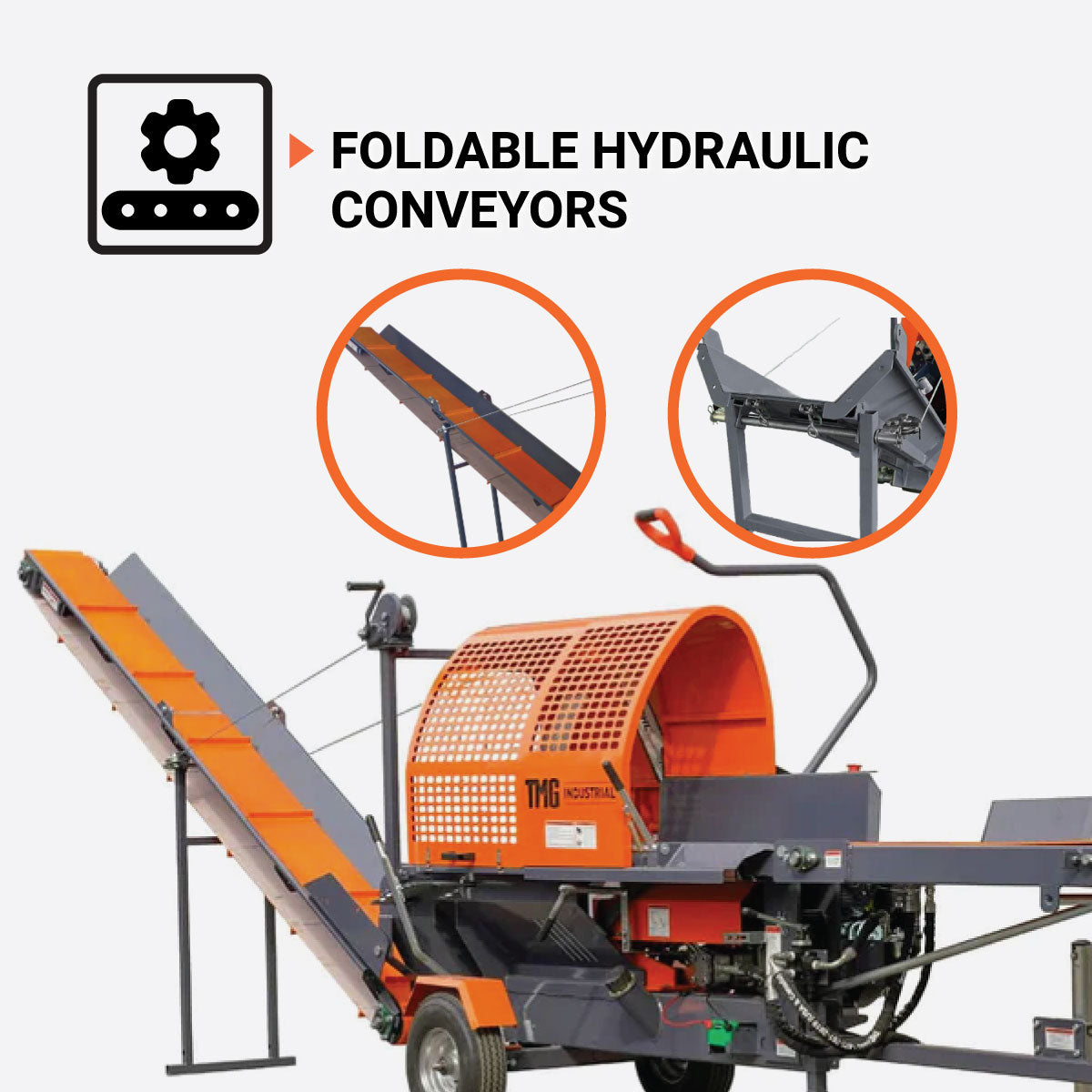

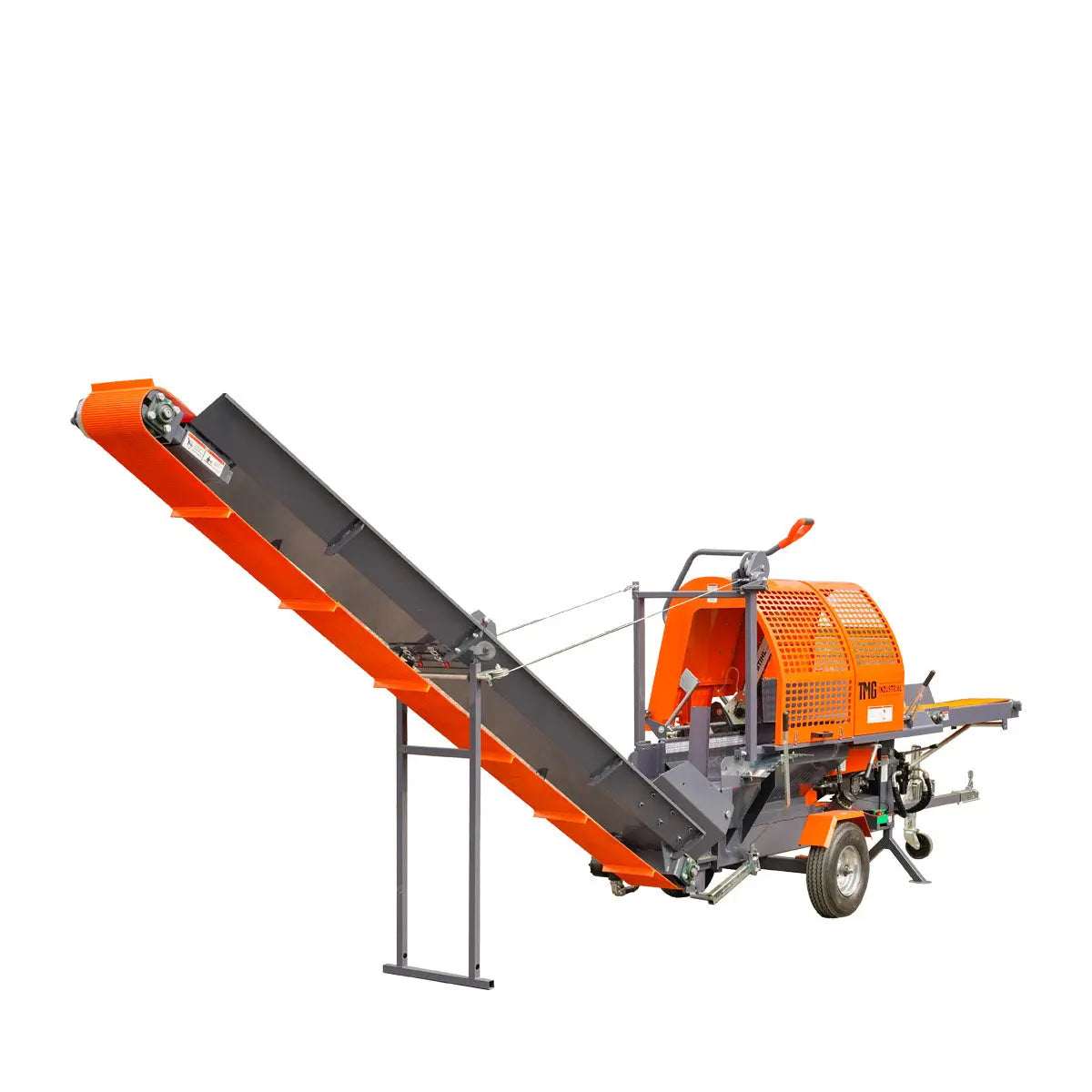

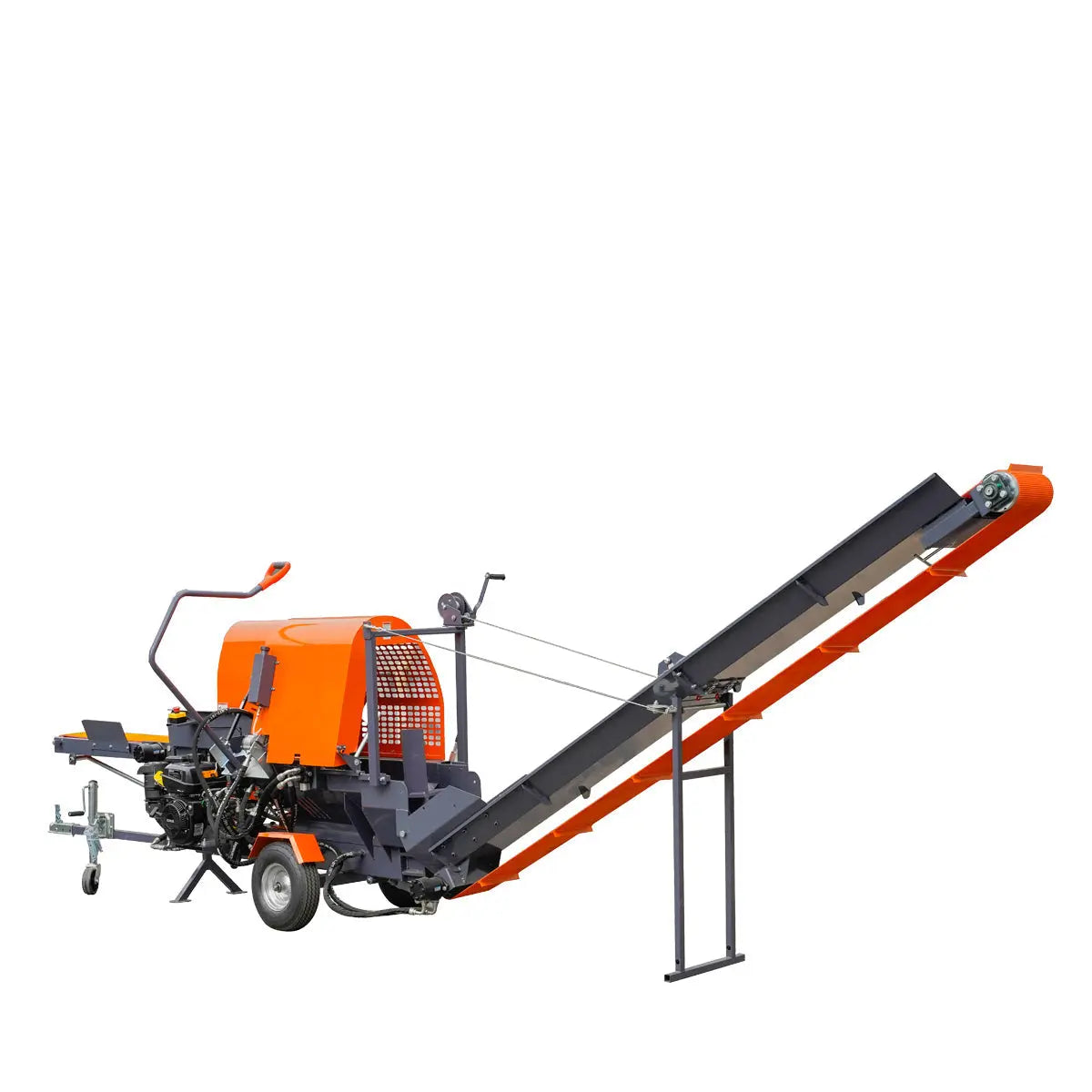

Foldable hydraulic conveyors for easy wood stacking and transport

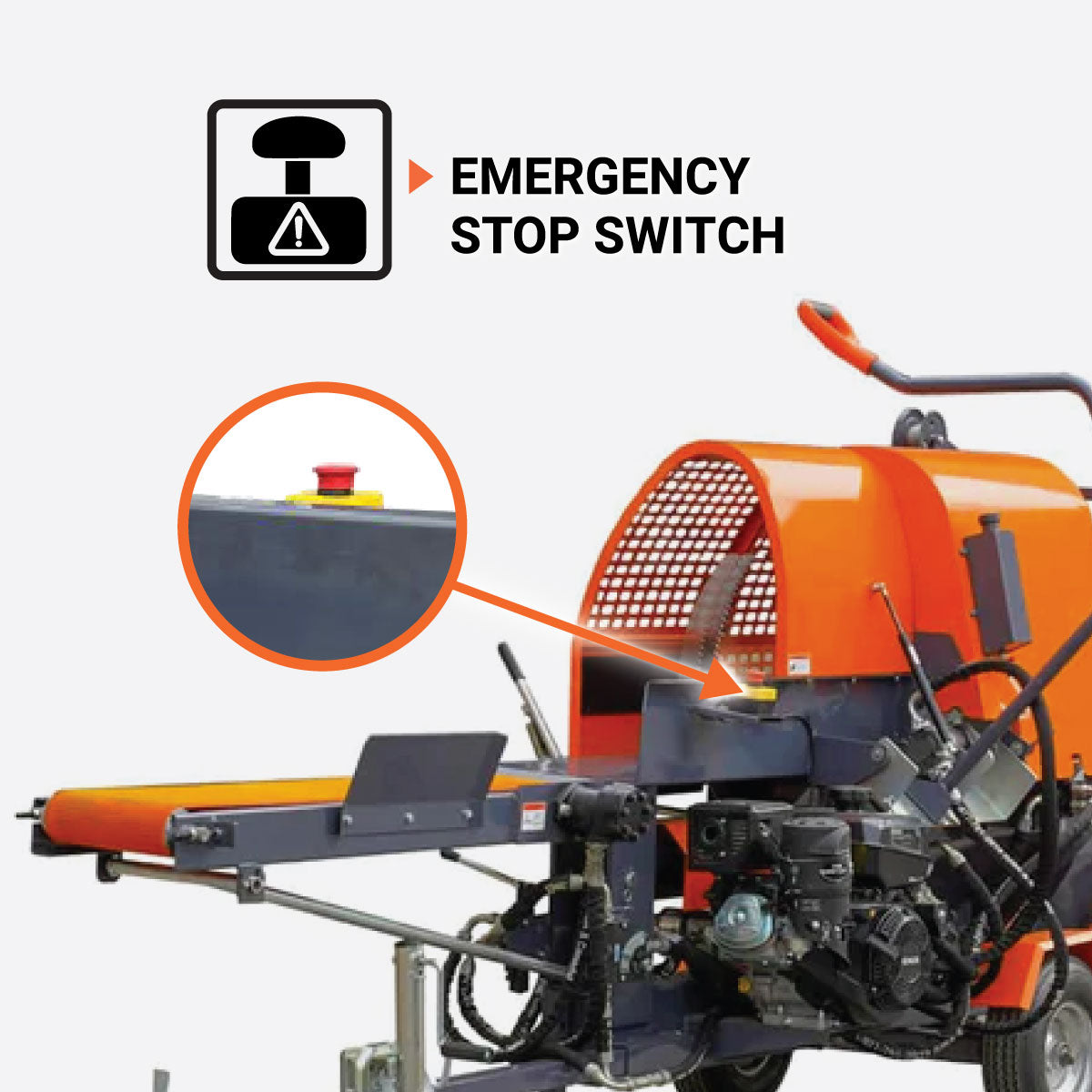

Enhanced safety with Emergency Stop Switch

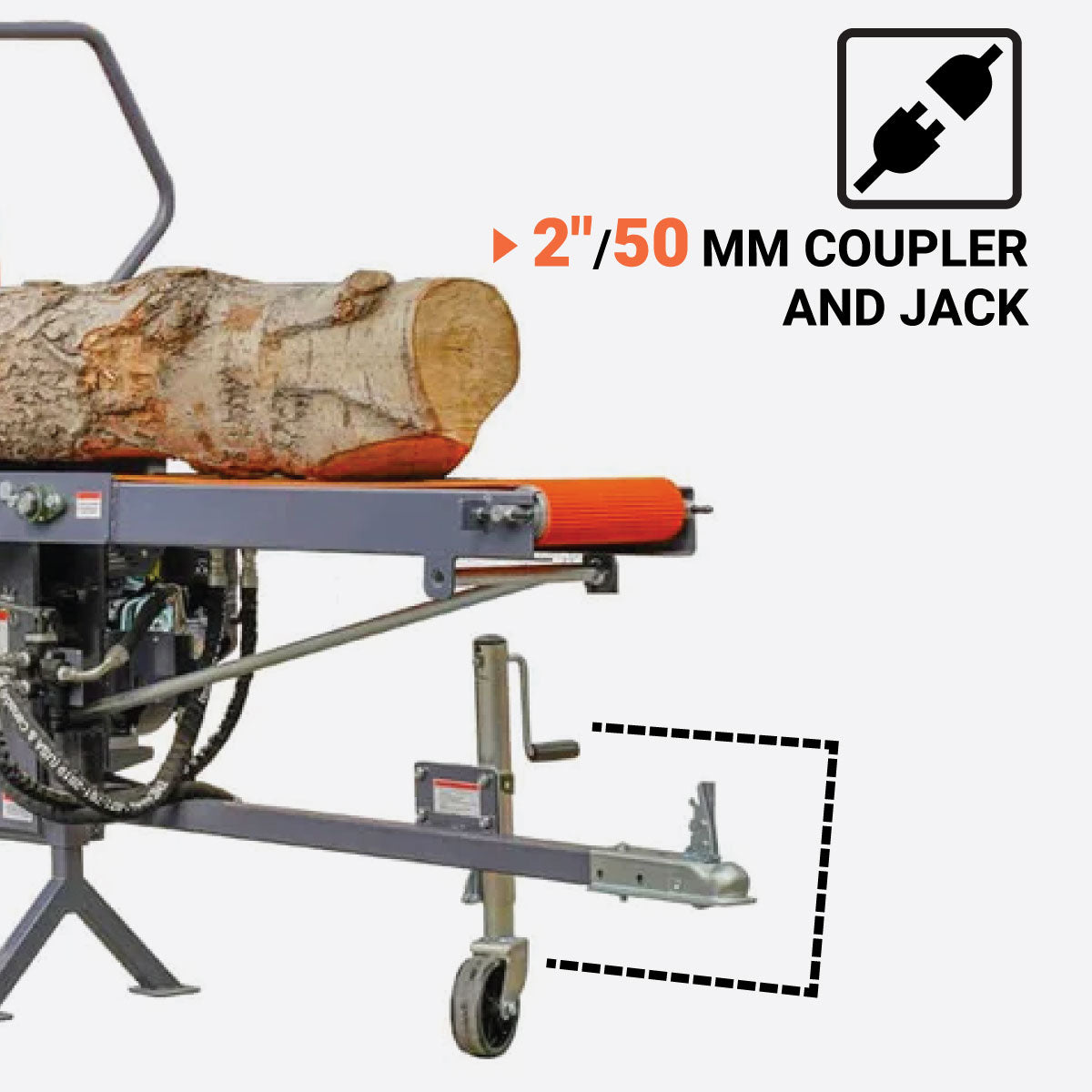

2" (50 mm) coupler and trailer jack for easy movement

Specifications

• Maximum log diameter: 15”
• Maximum splitting length: 23”
• Maximum splitting force: 20 ton
• Hydraulic chainsaw: 18”
• Hydraulic inlet conveyor: 41” x 10” (L x W)
• Hydraulic outlet conveyor: 126” x 10” (L x W)
• Hydraulic tank capacity: 26 L
• 2-4 way splitter

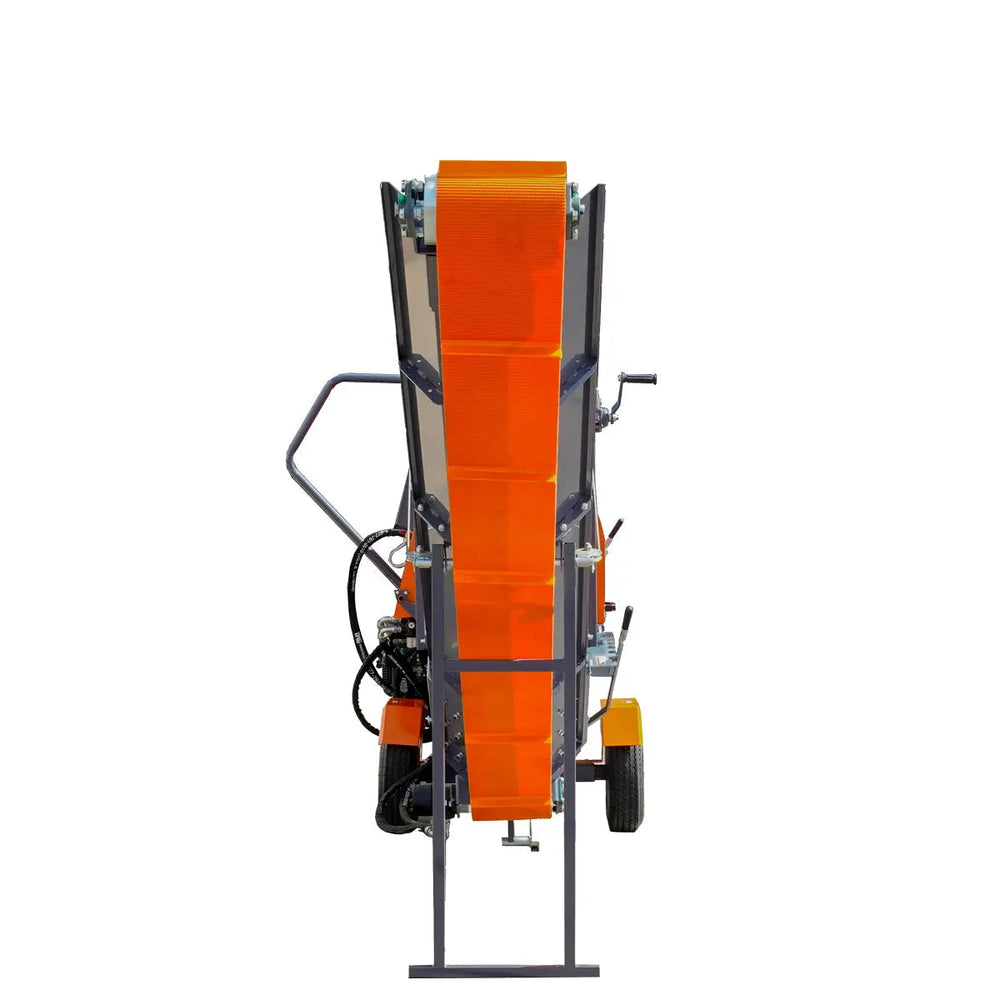

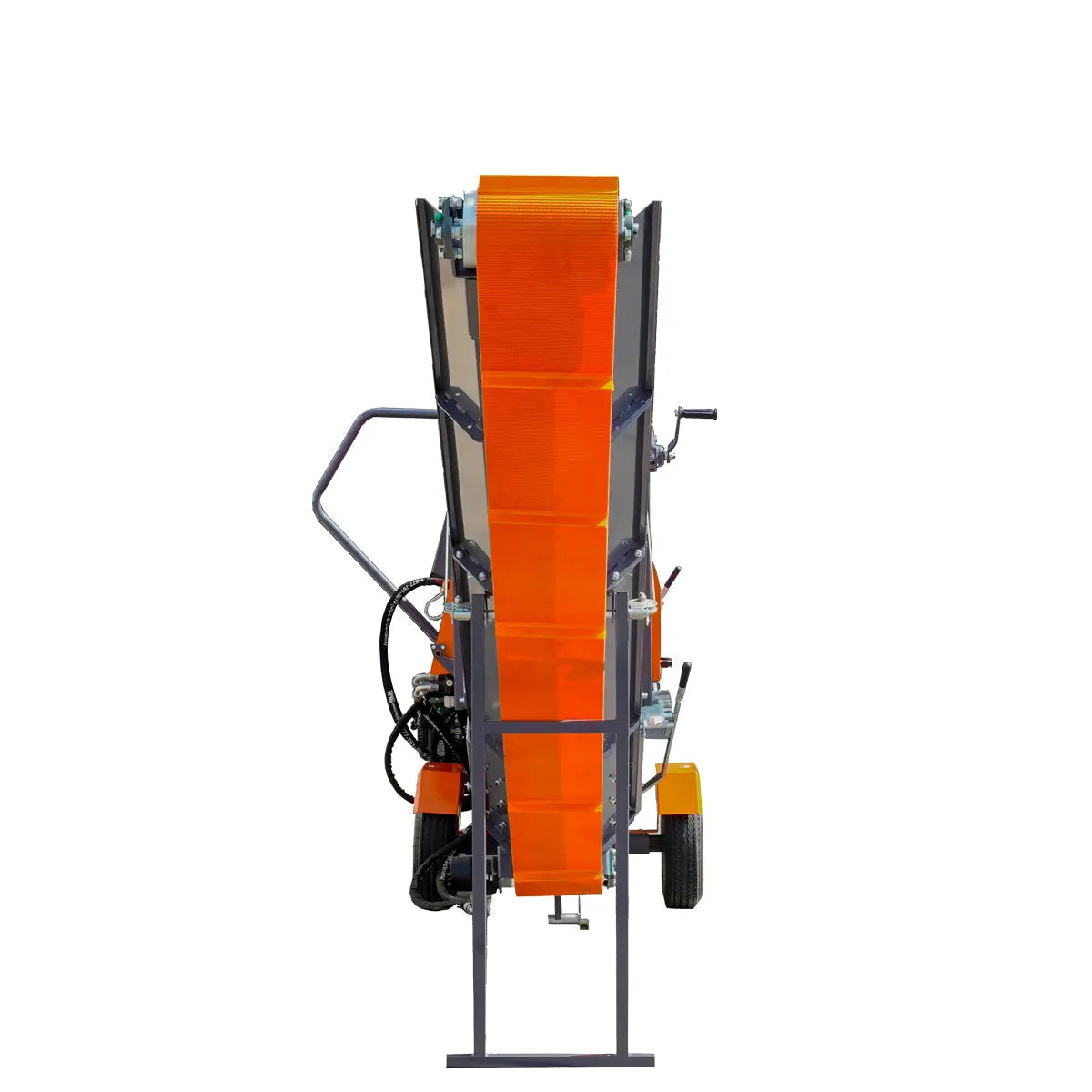

• Foldable output conveyor
• 2” coupler & trailer jack
• Metal safety splitting cage

Engine Specifications

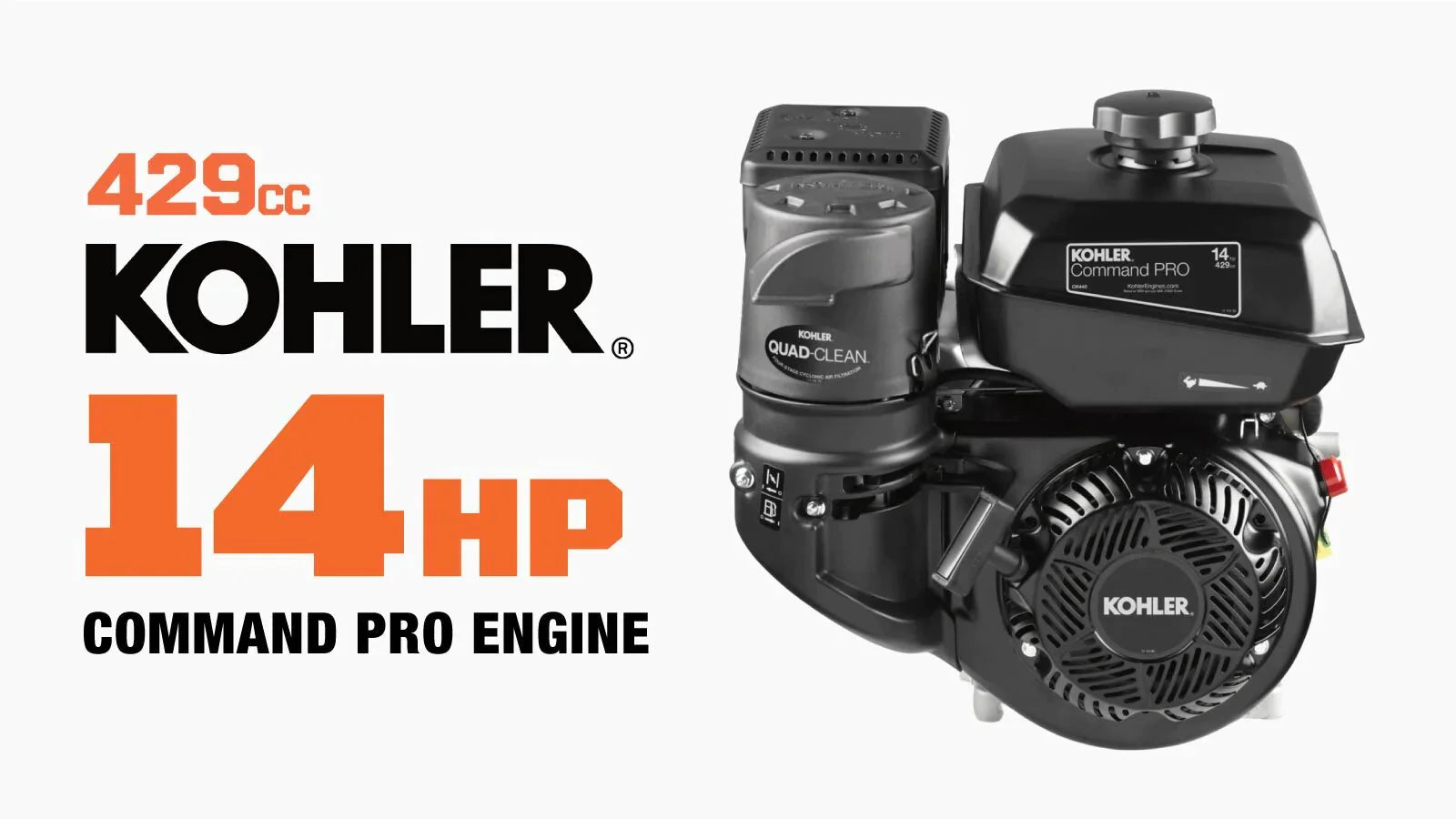

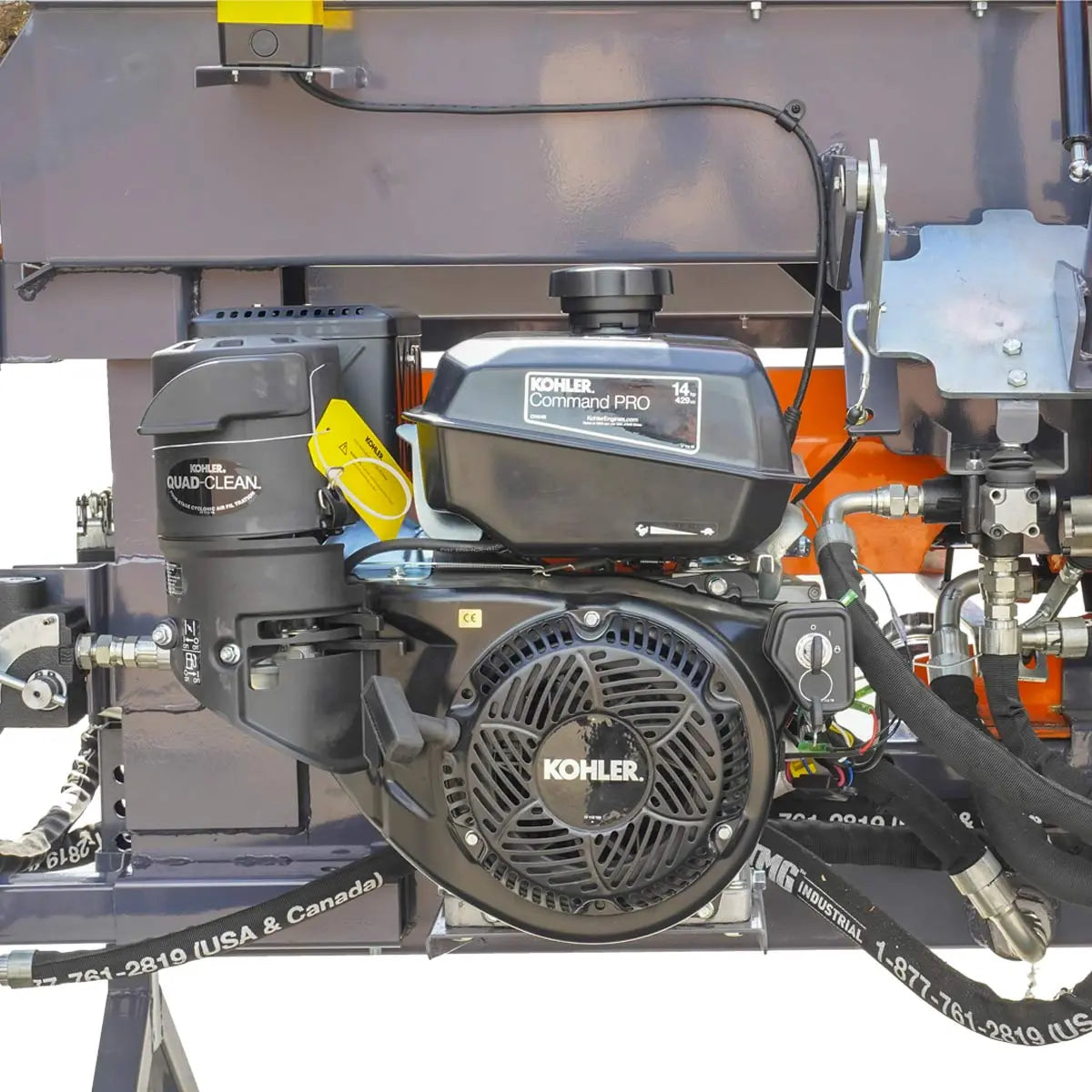

• Model: Kohler® CH440
• Type: Four-cycle, tri-fuel conversion, OHV, aluminum head & crankcase
• Power: 14 HP
• Displacement: 429 cc
• Start type: Electric & recoil
• Oil capacity: 1.3 L
• Cast iron cylinder liners provide lasting durability
• Oil Sentry™ automatically shuts the engine down in low-oil conditions

Shipping Information

The order will ship from one of our warehouses in Canada or the United States Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

• This product is packed in a wood crate shipping box
• Shipping dimension: 90” x 38” x 47” (L x W x H)
• Shipping weight: 1470 lb
